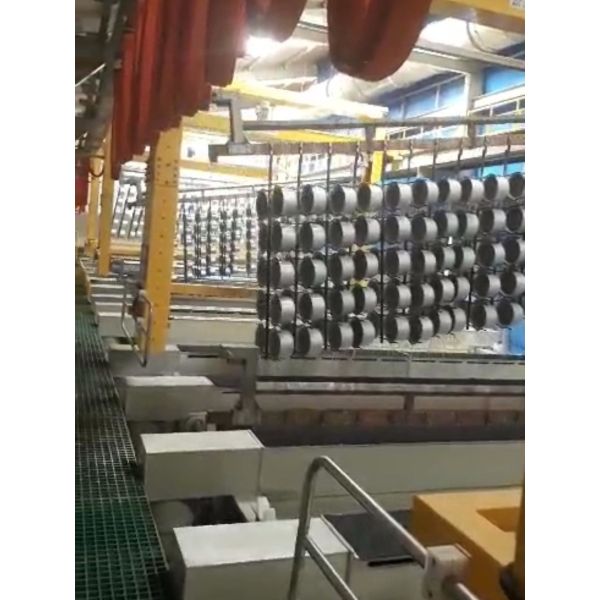

High-Speed Automated Anodizing Production Line With 40m/min Crane Speed For Aluminum Part Efficiency

Automated Anodizing Production Line Overview:

Speed is key to productivity, and our High-Speed Automatic Anodizing Production Line features gantry cranes with a maximum horizontal speed of 40m/min—reducing workpiece transfer time by 30% compared to standard lines. The cranes (Italian "Simik" motors) use Mitsubishi inverters for smooth acceleration/deceleration, preventing workpiece shaking and ensuring safe, fast movement. The line’s process flow is optimized for speed: 21 tanks arranged in a straight line, with minimal distance between key tanks (anodizing to coloring, coloring to washing). The anodizing section uses 3 tanks with 25V-3000A rectifiers, which provide high current to form oxide films quickly, while the cooling system (20HP chillers) maintains optimal temperature to avoid process delays. Despite its high speed, the line maintains precision: ±3mm crane positioning accuracy ensures workpieces are fully immersed in each tank, and Omron thermostats control tank temperatures to ±1℃. The 11 washing tanks (with overflow devices) ensure thorough cleaning in minimal time, while a 5μ filtration system (high-flow Taiwan "Guobao" pumps) keeps solutions clean without slowing production. The PLC control system (Omron) coordinates crane movement and process timing, enabling a 5-minute minimum cycle time for high-volume production. Suitable for industries like consumer electronics (where fast turnaround is critical), this high-speed line delivers efficiency without compromising quality.

Equipment working conditions

Process flow of Automated Anodizing Production Line:

For a complete technical solution of Automatic Anodizing Production Line, please contact me. We will customize the design based on your product technical requirements and factory layout.

After-sales technical services of Automatic Anodizing Production Line

1. After the equipment is delivered and put into use, will provide technical support and service for 12 months free of charge (except consumables), and the manufacturer will be responsible for free maintenance of parts damaged by non-human operation errors. After the expiration of the warranty period,will continue to provide lifetime paid technical support.

2. Provide Chinese and English documents for equipment installation, operation and maintenance to facilitate follow-up support for operator training.

3. Provide mechanical and electronic parts for one year.

4. Provide a copy of the warranty stating the effective date of the warranty, the coverage and the seller's contact person.

5. Engineers will monitor the equipment on site within 6 months after delivery and operation.
