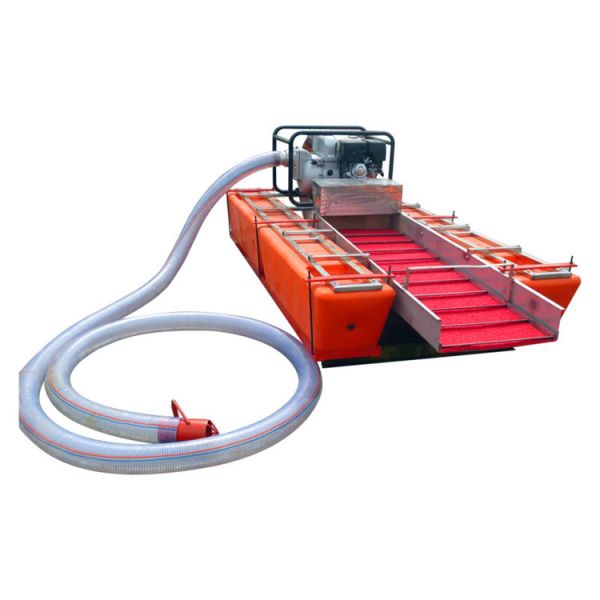

Pontoon Mini Gold Mining Dredger with Sand Suction Pump / Honda Engine
Pontoon Mini Gold Mining Dredger with Sand Suction Pump / Honda Engine
Pontoon Mini Gold Mining Dredger with Sand Suction Pump / Honda Engine
Pontoon Mini Gold Mining Dredger with Sand Suction Pump / Honda Engine
Pontoon Mini Gold Mining Dredger with Sand Suction Pump / Honda Engine
Pontoon Mini Gold Mining Dredger with Sand Suction Pump / Honda Engine
Pontoon Mini Gold Mining Dredger with Sand Suction Pump / Honda Engine
Pontoon Mini Gold Mining Dredger with Sand Suction Pump / Honda Engine
Pontoon Mini Gold Mining Dredger with Sand Suction Pump / Honda Engine
Pontoon Mini Gold Mining Dredger with Sand Suction Pump / Honda Engine
Pontoon Mini Gold Mining Dredger with Sand Suction Pump / Honda Engine
Pontoon Mini Gold Mining Dredger with Sand Suction Pump / Honda Engine
Specifications
Place of Origin :
Shandong china
Brand Name :
Keda
Supply Ability :
200 Set/Sets per Year
Price :
$24,500/sets 1-1 sets
Certification :
CE 9001
MOQ :
1
Type :
Gravity Separator
Production Capacity :
98%
Voltage :
220V/380V
Dimension(L*W*H) :
2300*1500*1000 mm, 550*450*450mm
Weight :
400 KG
Warranty :
1 Year
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Core Components :
Engine
Key Selling Points :
Easy To Operate
Rotate Speed :
3600rpm
Fuel Capacity :
2.65L
Pump :
1 set
Water Flow :
33m³/h
Dredging depth :
0.5-0.8 m
Work Capacity :
5m³/h
Applicable Industries :
Energy & Mining
Showroom Location :
Italy, Mexico, Russia
Condition :
New
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Description
Product Description
1. Usage Honda(Japan) engine and pump with CE ,ISO Certification.
2. Very popular in small scale gold mining with advantage that less investment, quick economic returns, simple operation,
portable etc.
3. Hot-selling in both domestic and overseas.
Pontoon Mini Gold Mining Dredger with Sand Suction Pump / Honda Engine
Features
Pontoon Mini Gold Mining Dredger with Sand Suction Pump / Honda Engine
1.--High integration with washing, separating and classifying which greatly
liberates labor force, makes one to two-person operation possible and saves labor
cost.
2.--Fixed-type and wheel-type are available according to clients’ requirements.
A).Wheel-type one has steering system which makes the equipment can be moved
easily.
B).Fixed-type one is with sled chassis and can be used in beach area for easy
moving in case wheels being trapped.
8

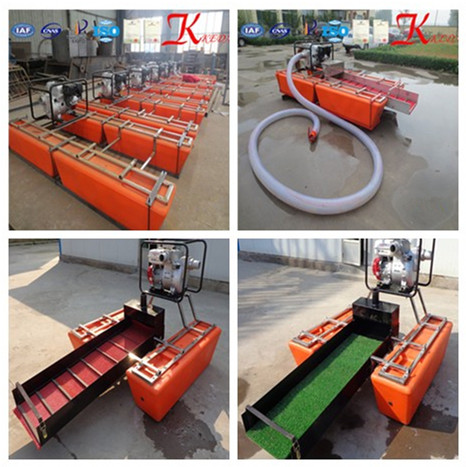

Successful Project
Pontoon Mini Gold Mining Dredger with Sand Suction Pump / Honda Engine
Pontoon Mini Gold Mining Dredger with Sand Suction Pump / Honda Engine
Specification
Mini-Gold Dredger Parameter
Dimension 2300*1500*1000mm 2500*1500*1000mm 2500*1500*1000mm
Diesel


Model RZ170F RZ178F RZ186FA
Power 5hp 7hp 12hp
Rotate Speed 3600rpm 3600rpm 3600rpm
Fuel Consumption ≤284g/Kw·h ≤283g/Kw·h ≤280g/Kw·h
Fuel Capacity 2.65L 3.3L 5.5L
Pump 1 set 1 set 2 sets
Dimension(L*W*H) 550*450*450mm 550*470*450mm 550*500*480mm
Pump Diameter 50mm(2inch) 80mm(3inch) 100mm(4inch)
Water Flow 33m³/h 60m³/h 80m³/h
Head 30m 30m 25m
Dredging depth 0.5-0.8 m 0.5-0.8 m 1.5 m
Work Capacity 5m³/h 8m³/h 13m³/h
Gold Chute


Dimension(L*W) 400*1500mm 500*1700mm 500*1700mm

With gold felt With gold felt With gold felt
Float


Dimension(L*W*H) 1600*395*370 1600*395*370 1600*395*370
Suction Pipe 3inch 4inch 5inch

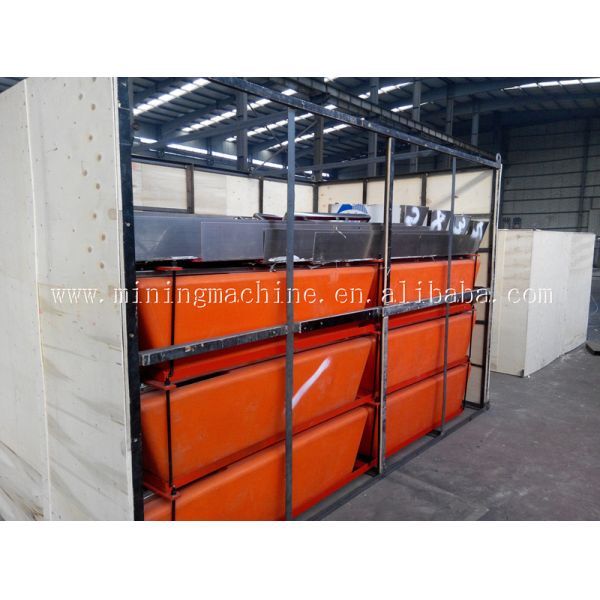

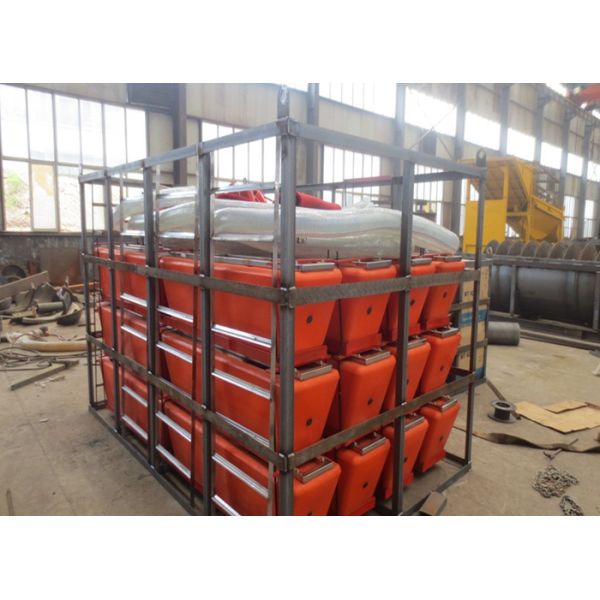

Packing & Delivery
Pontoon Mini Gold Mining Dredger with Sand Suction Pump / Honda Engine
Pontoon Mini Gold Mining Dredger with Sand Suction Pump / Honda Engine
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

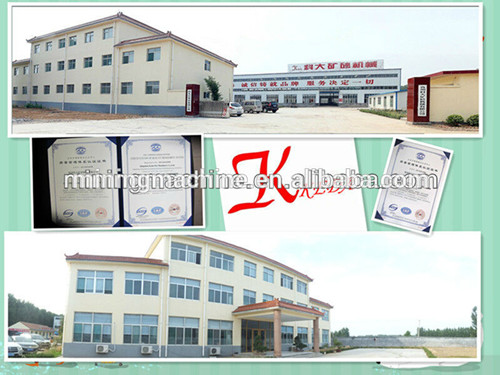

Company Profile

Pontoon Mini Gold Mining Dredger with Sand Suction Pump / Honda Engine
Pontoon Mini Gold Mining Dredger with Sand Suction Pump / Honda Engine
Pontoon Mini Gold Mining Dredger with Sand Suction Pump / Honda Engine
Qingzhou Keda Environment Protection Machinery Co.,Ltd is a re-registered modern formal company of the shareholders. Our company mainly produces iron selecting equipment, all kinds of dredgers, dredging equipment, sand washing and sand making equipment, gold panning equipment, magnetic separating, crusher and so on. There are more than a hundred kinds of products. We design and produce various products according to customers' requirements and geographical conditions. Our company is a modern large-scale mineral processing equipment manufacturer specialized in the research and development, engineering design, production, installation, commissioning and after-sales service. We pay attention to the development of scientific research, and form strategic partnerships with major research institutions. We have established good cooperation with some import and export trading companies and Shandong Magnetic Equipment Research Institution. We have a CAD Aided Design R&D Center and a physical mineral processing laboratory, which can work out reasonable and practical solutions according to customers' technical requirements and work sites. We have established and improved the file for our equipment and service system. We concentrate on customers' feedback to constantly improve our products to meet customers' different needs. Honesty and credit is our business value and "Customer First, First-Class Quality and First-Class Service" is our business life. We have owned a good reputation both in domestic and overseas markets. You are invited to create a brilliant tomorrow together!
Our advantages
KEDA Produce Aquamarine designs and manufactures aquatic weed
harvesters in a range of sizes to meet our customer's needs.
1.More than 10 years of production experience in dredgers and mineral processing equipment
2.Strong technical service team, can provide customized services
3.Own design team with 21 patents
4.Industry and Trade Integration Enterprise
5.The factory covers an area of over 22,000 square meters
6. 3 production lines-dredger-cleaning boat-gold mining equipment
FAQ
1. who are we?
We are based in Shandong, China, start from 2011,sell to Africa(30.00%),Domestic Market(20.00%),North America(10.00%),South America(10.00%),Eastern Asia(5.00%),Southeast Asia(5.00%),South Asia(4.00%),Central America(4.00%),Oceania(2.00%),Western Europe(2.00%),Southern Europe(2.00%),Northern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Dredger, Gold Mining Equipment, Water Weed Harvester, Sand Production Equipment

4. why should you buy from us not from other suppliers?
We are specialized in mineral processing equipment,exported to all over the world,had got the patent about gold washing equipment.Combined with research and development, engineering design, producing,installation and commissioning and after sale service.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
