Specifications
Place of Origin :
Shandong china
Brand Name :
Keda
Price :
$5,000/sets >=1 sets
Certification :
CE 9001
MOQ :
1
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Core Components :
Engine, Pump
Type :
Mini gold washing dredger
Power Type :
Diesel
Dredging Depth :
1.5 m
Draught :
40 inch
Dimension(L*W*H) :
2300*1500*1000mm
Weight :
500 KG
Warranty :
1 year
After-sales Service Provided :
Engineers available to service machinery overseas
Suction Head :
8m
Power :
8HP
Usage :
panning & fossick(gold)
Head :
31m
Fixed Agitating Chute :
customized
Color :
customized
Water Flow :
33m3/h
Diesel Rotate Speed :
3600r/m
Fuel Consumption :
no more than 284g/kwh
Applicable Industries :
Energy & Mining
Showroom Location :
Saudi Arabia, Nigeria
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Condition :
New
Description
Product Description

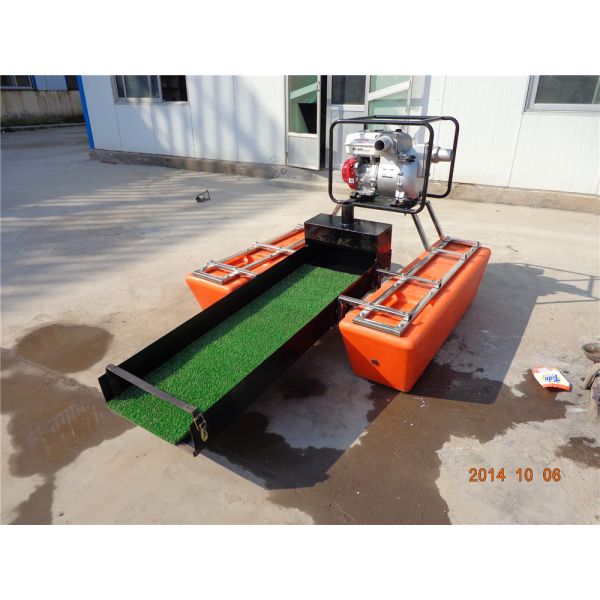

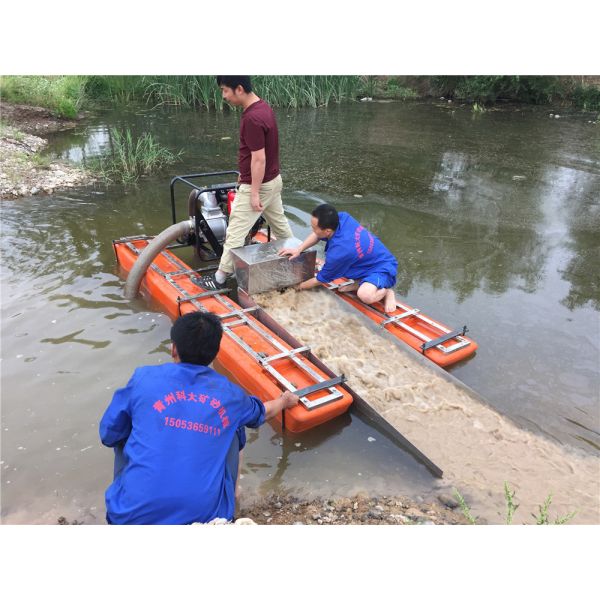

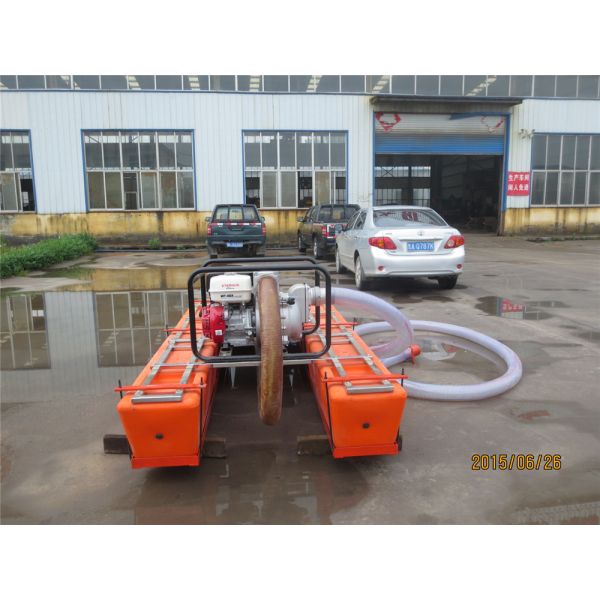

Mini gold dredger with a gold chute for high recovery rate, powered by a famous engine with pump, float is made up of high strength and light weight plastic. There are advantages that small in size, easy to transportation , it is widely used for working of gold mining in mini river channel.

Mini Gold Dredger
Model QFT3-2 QFT4-3 QFT5-3
Dimension 2300*1500*1000mm 2500*1500*1000mm 2500*1500*1000mm
Diesel
Model RZ170F RZ178F RZ186FA
Power 5hp 7hp 12hp
Rotate Speed 3600rpm 3600rpm 3600rpm
Fuel Consumption ≤284g/Kw·h ≤283g/Kw·h ≤280g/Kw·h
Fuel Capacity 2.65L 3.3L 5.5L
Pump 1 set 1 set 2 sets
Dimension(L*W*H) 550*450*450mm 550*470*450mm 550*500*480mm
Pump Diameter 50mm(2inch) 80mm(3inch) 100mm(4inch)
Water Flow 33m³/h 60m³/h 80m³/h
Head 30m 30m 25m
Dredging depth 0.5-0.8 m 0.5-0.8 m 1.5 m
Work Capacity 5m³/h 8m³/h 13m³/h
Gold Chute
Dimension(L*W) 400*1500mm 500*1700mm 500*1700mm
With gold felt With gold felt With gold felt
Float
Dimension(L*W*H) 1600*395*370 1600*395*370 1600*395*370
Suction Pipe 3inch 4inch 5inch
8HP Portable Gold Mining Dredger with 33m³/h Water Flow 3600rpm Rotate Speed
8HP Portable Gold Mining Dredger with 33m³/h Water Flow 3600rpm Rotate Speed
8HP Portable Gold Mining Dredger with 33m³/h Water Flow 3600rpm Rotate Speed
8HP Portable Gold Mining Dredger with 33m³/h Water Flow 3600rpm Rotate Speed
Main Features
  • Portable, small in size:easy to operate, maintain, transport and assemble, it is most ideal equipment for personal gold mining in mini river channel.
  • Hot sale all over the world: Had been exported to more than 15 countries, such as Ghana, Philippines, Vienam, Russia, North Korea, Indonesia, Gabon, America and so on.
  • High efficiency:It is equipped with a gold chute with gold carpet for high recovery rate.
  • Quick return, high profits:It is highly efficient with low cost, a good gold mining machine.
  • Standard quality: Float framework is made up of stainless steel structure, the floating body is made of high strength and light weight plastic, which means the main body of the machine is stong, durable and low failure rate.
  • Customization design: According to the different geological condition, capacity requirement planning and the customers budget, provid the most ideal product for investor.
Certifications
8HP Portable Gold Mining Dredger with 33m³/h Water Flow 3600rpm Rotate Speed
8HP Portable Gold Mining Dredger with 33m³/h Water Flow 3600rpm Rotate Speed
8HP Portable Gold Mining Dredger with 33m³/h Water Flow 3600rpm Rotate Speed
8HP Portable Gold Mining Dredger with 33m³/h Water Flow 3600rpm Rotate Speed
Testing
8HP Portable Gold Mining Dredger with 33m³/h Water Flow 3600rpm Rotate Speed
8HP Portable Gold Mining Dredger with 33m³/h Water Flow 3600rpm Rotate Speed
8HP Portable Gold Mining Dredger with 33m³/h Water Flow 3600rpm Rotate Speed
8HP Portable Gold Mining Dredger with 33m³/h Water Flow 3600rpm Rotate Speed
Packing&Loading
8HP Portable Gold Mining Dredger with 33m³/h Water Flow 3600rpm Rotate Speed
8HP Portable Gold Mining Dredger with 33m³/h Water Flow 3600rpm Rotate Speed
8HP Portable Gold Mining Dredger with 33m³/h Water Flow 3600rpm Rotate Speed
8HP Portable Gold Mining Dredger with 33m³/h Water Flow 3600rpm Rotate Speed
Our Service
8HP Portable Gold Mining Dredger with 33m³/h Water Flow 3600rpm Rotate Speed
8HP Portable Gold Mining Dredger with 33m³/h Water Flow 3600rpm Rotate Speed
  1. Our company signs a long-time after-sale service agreement with customers.
  2. We provide rational and practical design according to customers' request.
  3. We send engineers to assemble and test the machine within the period as agreed in the contract.
  4. Within warranty period, we provide free repair if quality problems emerge.
  5. We provide free training of operation and maintenance for customers.
  6. We supply high quality accessories in low price.
  7. We make an excellent filing of customers for long-term following -up service.
Company Profile
8HP Portable Gold Mining Dredger with 33m³/h Water Flow 3600rpm Rotate Speed

Qingzhou Keda Mining Machine Co., Ltd. is a re-registered modern formal company of the shareholders. Our company mainly produces iron selecting equipment, all kinds of dredgers, dredging equipment, sand washing and sand making equipment, gold panning equipment, magnetic separating, crusher and so on. There are more than a hundred kinds of products. We design and produce various products according to customers' requirements and geographical conditions. Our company is a modern large-scale mineral processing equipment manufacturer specialized in the research and development, engineering design, production, installation, commissioning and after-sales service.

We pay attention to the development of scientific research, and form strategic partnerships with major research institutions. We have established good cooperation with some import and export trading companies and Shandong Magnetic Equipment Research Institution. We have a CAD Aided Design R&D Center and a physical mineral processing laboratory, which can work out reasonable and practical solutions according to customers' technical requirements and work sites. We have established and improved the file for our equipment and service system. We concentrate on customers' feedback to constantly improve our products to meet customers' different needs.

Honesty and credit is our business value and "Customer First, First-Class Quality and First-Class Service" is our business life.

We have owned a good reputation both in domestic and overseas markets. You are invited to create a brilliant tomorrow together!
