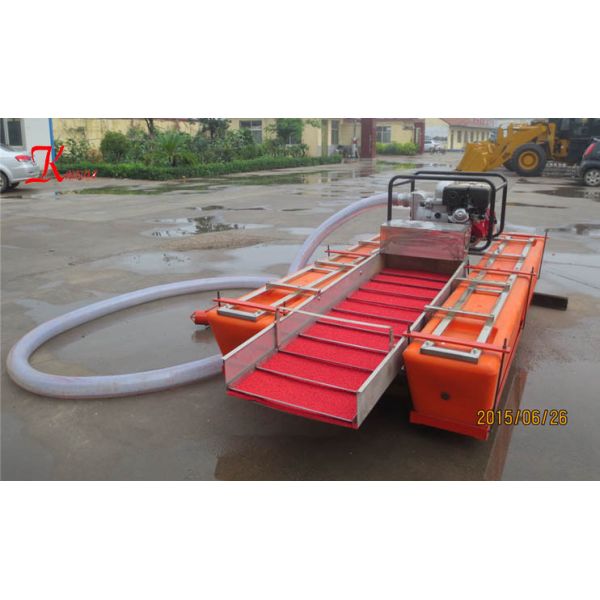

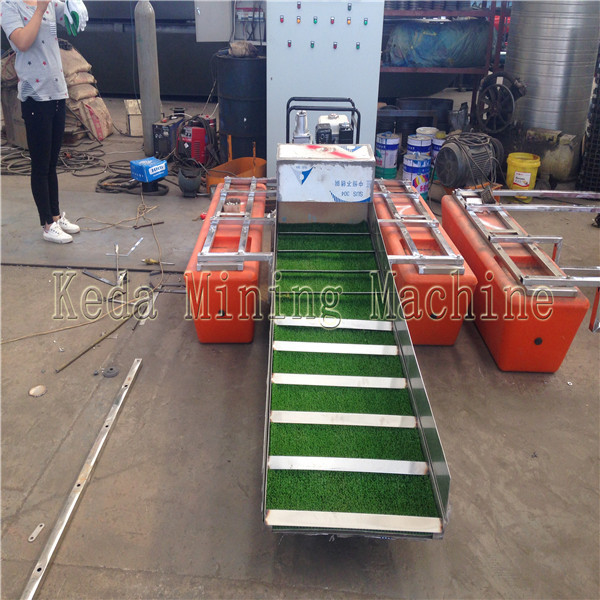

Mini gold dredger with a gold chute for high recovery rate, powered by a famous engine with pump, float is made up of high strength and light weight plastic. There are advantages that small in size, easy to transportation , it is widely used for working of gold mining in mini river channel.
| SPECIFICATIONS FOR MINI GOLD DREDGER | ||||
|---|---|---|---|---|
| Items | QFT3-2 | QFT3-2-2 | QFT3 | QFT4 |
| Dimension(mm) | 2300*1500*1000mm | 3500*2500*1200mm | 3200*1500*1000mm | 3200*1500*1000mm |
| Power(hp) | 5 | 5 | 13 | 15 |
| Pump | 1set | 1set | 1set | 2sets |
| Dimension (H*W*H)mm | 550*450*450mm | 550*450*450mm | 660*500*520mm | 660*500*520mm |
| Water flow | 33m³/h | 33m³/h | 60m³/h | 80m³/h |
| Lift head | 50m | 50m | 27m | 25m |
| Max.dredging depth | 0.5-1.2m | 0.5-1.2m | 0.5-3m | 0.5-3m |
| Working capacity | 1-7m³/h | 1-7m³/h | 5-12m³/h | 8-17m³/h |
| Float Dimension(H*W) | 500*1700mm | 500*2000mm | 600*2000mm | 600*2000mm |
Brand: Honda, Kipor, KOHLERetc.
Original: Germany

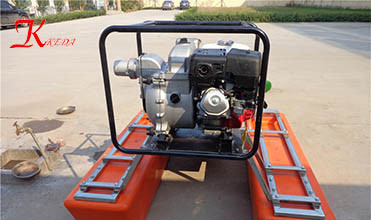

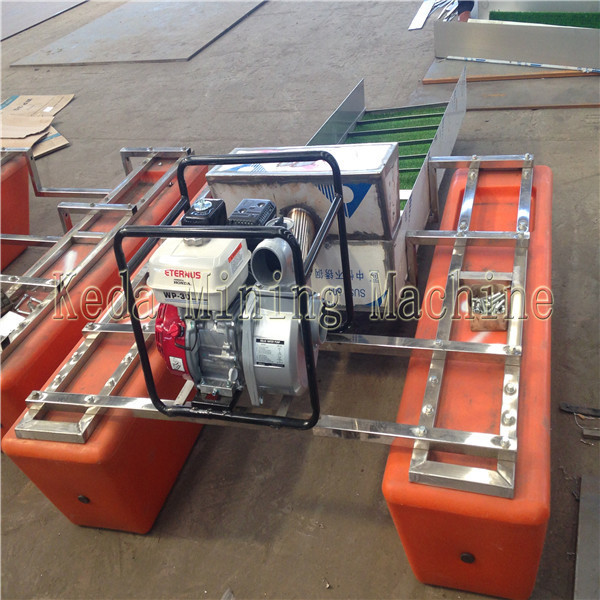

World famous brand engine and pump with strong power, such as Honda, Kipor, KOHLER etc.
Brand: Mitsubishi

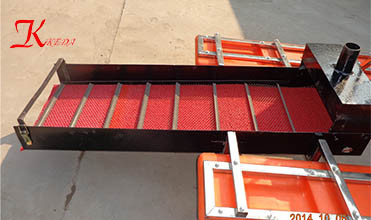

Carpet in the sluice is made by Mitsubishi. Durable, double-layer, anti-skid, anti-abrasion, anti-corrosion, high recovery rate up to 90%.
Brand: KEDA
The floating parts is generally made of split form, two side pontoon, a certain distance between the middle, not only increased the stability of the gold-washed ships, but also facilitate the disassembly of equipment transport.

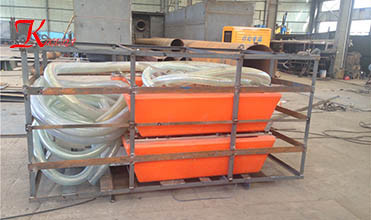

| Packaging | |
|---|---|
| Size | 5 (L) * 1.2 (W) * 1.2 (D) |
| Weight | 1.2 T |

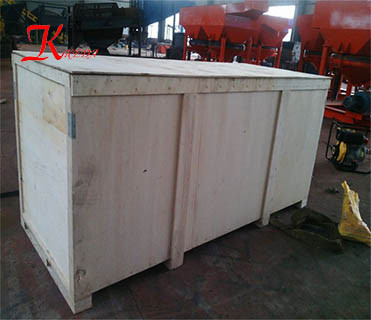

| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Qingzhou Keda ore machinery Co.,LTD. is a modern and formal ore machine manufacturer,which is professional at producing all kinds of mining equipment with ISO9001:2008. The gold wash plant has obtained PATENT both in utility and design. Our company is established in 2002 primitively, covers an area of more about 20,000 square meters and equipped with modern type workshops and office .
Currently there are 120 staffs, including 2 senior engineers, 10 engineers, 15 technicians and 60 technical workers. Our company are more normative in management, our engineers are more professional in design and manufacture, our service are more comprehensive and thoughtful, and our price are more competitive with the best quality.
1) I never used this kind of machine, is it easy to operate?
Our engineers will guide you in the installation and use, and there are english manual and guide video that show how to use machine.
2) What should I do if the machine has any problems after I order it?
Free parts send to you in machine warranty period if machine have any problem.Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you solution from phone and skype.
