Specifications
Place of Origin :
Shandong china
Brand Name :
Keda
Certification :
CE 9001
Packaging Details :
small gold suction dredging equipment with container
Supply Ability :
20 Set/Sets per Month small gold suction dredging equipment
Price :
$3,900/sets >=1 sets
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Core Components :
Engine, Pump
Type :
Bucket Dredger
Power Type :
Diesel
Dredging Depth :
8 m
Draught :
100 cm
Dimension(L*W*H) :
2300*1500*1000mm
Weight :
300kg
Warranty :
1 year warranty
Usage :
Small gold suction dredging equipment
Application :
Mini scale gold mini dredge
Working capacity :
5-15t/h
Gold Chute :
Fixed chute
Fixed chute :
With gold felt
Power :
30kw
Engine :
Diesel
Pump :
Water pump
Float :
2 sets
Color :
Customised
Applicable Industries :
Energy & Mining
Local Service Location :
None
Showroom Location :
None
Marketing Type :
Hot Product 2019
Warranty of core components :
1 Year
Condition :
New
Port :
Qingdao
MOQ :
1
Description

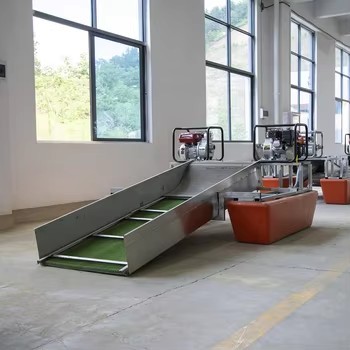

Mini scale alluvial gold suction dredge used for gold recovery

1. Small Gold Suction Dredging Equipment For Gold Panning, Feature

Mini Gold Dredger

Model

QFT3-2

QFT4-3

QFT5-3

Dimension

2300*1500*1000mm

2500*1500*1000mm

2500*1500*1000mm

Diesel

Model

RZ170F

RZ178F

RZ186FA

Power

5hp

7hp

12hp

Rotate speed

3600rpm

3600rpm

3600rpm

Fuel consumption

≤284g/Kw·h

≤283g/Kw·h

≤280g/Kw·h

Fuel capacity

2.65L

3.3L

5.5L

Pump

1 set

1 set

2 sets

Dimension(L*W*H)

550*450*450mm

550*470*450mm

550*500*480mm

Pump diameter

50mm(2inch)

80mm(3inch)

100mm(4inch)

Water flow

33m³/h

60m³/h

80m³/h

Head

30m

30m

25m

Dredging depth

0.5-0.8 m

0.5-0.8 m

1.5 m

Work capacity

5m³/h

8m³/h

13m³/h

Gold chute

Dimension(L*W)

400*1500mm

500*1700mm

500*1700mm

With gold felt

With gold felt

With gold felt

Float

Dimension(L*W*H)

1600*395*370

1600*395*370

1600*395*370

Suction pipe

3inch

4inch

5inch

2. Small Gold Suction Dredging Equipment For Gold Panning, Detail Introduce

The samll gold suction dredging equipment is the new portable gold mining equipment according to customer’s require.The unmatched performance of this new dredge system is designed for those who operate in extremely remote and challenging locations. It is popular for new and old customers.

Diesel Engine Mini Gold Dredger with 8 m Dredging Depth and 5-15t/h Working Capacity for Alluvial Gold RecoveryDiesel Engine Mini Gold Dredger with 8 m Dredging Depth and 5-15t/h Working Capacity for Alluvial Gold RecoveryDiesel Engine Mini Gold Dredger with 8 m Dredging Depth and 5-15t/h Working Capacity for Alluvial Gold Recovery

3. Small Gold Suction Dredging Equipment For Gold Panning, Our Services.

Pre-sales service:

Be a good consultant and assistant to customers, to ensure our customer's investment rewarded with great profit.

  • Enough details about the ores or slags shall be learned, sometimes a test is needed for some ores.
  • Equipment of right model is selected for customers.
  • Customized products and processing flow sheet can be designed and developed to meet customer's special needs.
  • Engineer could be sent to observe customer's working site to come up with an optimized solution accordingly.

On-sales service:

Every customer is respected and convenience and reliability will be provided. We are devoted to helping you to benefit as much as possible.

  • Inspection is a must before delivering of the goods.
  • Assistance to make a construction plan by supplying all drawings and data needed.
  • Most favorable scheme for you with the guaranteed quality.
  • Timely communication to make sure improvement of project and your requirement met.

After-sales service:

We are devoted to helping you to benefit as much as possible.

  • Installation, adjustment, and testing of equipment is available.
  • Train of technicians and workers at site is promised.
  • Service engineers will not leave until ensuring the whole line running well after the installation & adjustment is finished.
  • If any failure or question about the machines or the processing line, contact us and we are available at any time.

3. Small Gold Suction Dredging Equipment For Gold Panning, Our company.

1.We are professional for producing small dredging equipment and kinds of gold mining machine, such as small dredging machine, bucket gold dredger,cutter suction dredger, sand pump dredger and so on.

2.We have own engineer, who has rich experience for desiging and installing the machine.We can design the unique machine according to your situation and requires.

3.We have rich exported experience ,such as Sudan,Ghana, Bengal,Nigeria,Russia and so on.

5. Assist you to get a good small gold dredging equipment

Thank you for your interesting,if you send the inquiry to me,could you kindly tell me some problems, flowing is:

  1. The working capacity that you want to get.
  2. The content of mud in your mine.
  3. It is appreciate that you can tell me more about your mine.
