Specifications
Brand Name :
Keda
Place of Origin :
Shandong china
MOQ :
1
Price :
$4,500/sets >=1 sets
Payment Terms :
L/C,T/T
Certification :
CE 9001
Type :
Flotation Separator
Weight :
300 KG
Warranty :
1 Year, 12Months
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Core Components :
Pump, Gearbox
Key Selling Points :
High Rigidity
Power Type :
Diesel (Customized)
Diesel Engine :
Single cylinder air cooled diesel engine
Product name :
Mini Gold Dredge Pontoons / Portable Gold Dredge
Keywords :
Gold Dredge
Name :
Mini Dredge
Usage :
Washing Gold
After-sales Service Provided :
Field installation, commissioning and training
Application :
Alluvial Gold Washing
Color :
Customer's Requirements
Applicable Industries :
Home Use, Retail, Construction works , Energy & Mining
Showroom Location :
Viet Nam, Philippines, Indonesia, Russia, Thailand, Colombia, Romania, Nigeria, Malaysia
Condition :
New
Marketing Type :
Hot Product 2019
Warranty of core components :
1 Year
Description
Product Description

Product Description

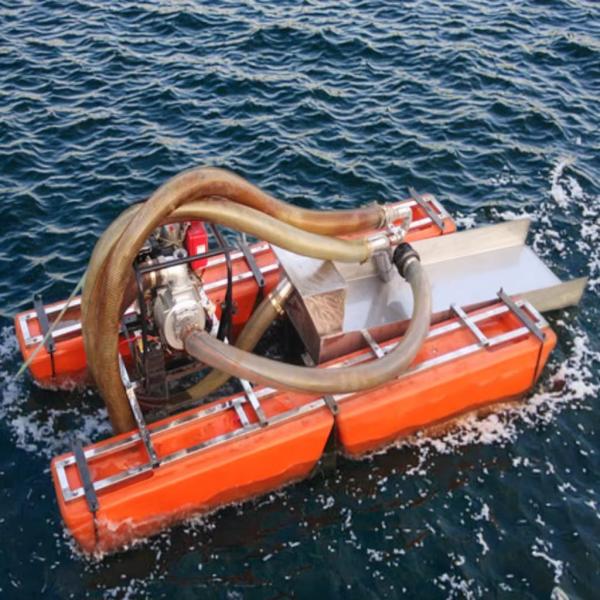

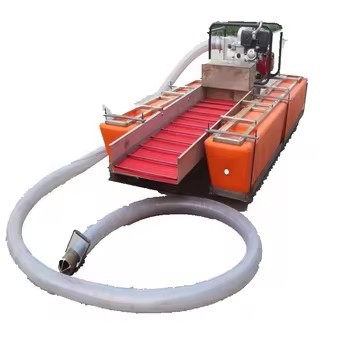

Mini gold dredger with a gold chute for high recovery rate, powered by a famous
engine with pump, float is made up of high strength and light weight plastic. There are
advantages that small in size, easy to transportation , it is widely used for working of
gold mining in mini river channel.

Lightweight Diesel Mini Dredger for Small Scale Gold Mining
Mini Gold Dredger
Model
QFT3-2
QFT4-3
QFT5-3
Dimension
2300*1500*1000mm
2500*1500*1000mm
2500*1500*1000mm
Diesel
Model
RZ170F
RZ178F
RZ186FA
Power
5hp
7hp
12hp
Rotate Speed
3600rpm
3600rpm
3600rpm
Fuel Consumption
≤284g/Kw·h
≤283g/Kw·h
≤280g/Kw·h
Fuel Capacity
2.65L
3.3L
5.5L
Pump
1 set
1 set
2 sets
Dimension(L*W*H)
550*450*450mm
550*470*450mm
550*500*480mm
Pump Diameter
50mm(2inch)
80mm(3inch)
100mm(4inch)
Water Flow
33m³/h
60m³/h
80m³/h
Head
30m
30m
25m
Dredging depth
0.5-0.8 m
0.5-0.8 m
1.5 m
Work Capacity
5m³/h
8m³/h
13m³/h
Gold Chute
Dimension(L*W)
400*1500mm
500*1700mm
500*1700mm
With gold felt
With gold felt
With gold felt
Float
Dimension(L*W*H)
1600*395*370
1600*395*370
1600*395*370
Suction Pipe
3inch
4inch
5inch
Lightweight Diesel Mini Dredger for Small Scale Gold Mining

Main Features

1). Portable, small in size:easy to operate, maintain, transport and assemble, it is most ideal equipment for personal gold mining in mini river channel.
2). Hot sale all over the world: Had been exported to more than 15 countries, such as Ghana, Philippines, Vienam, Russia, North Korea, Indonesia, Gabon, America and so on.
3). High efficiency:It is equipped with a gold chute with gold carpet for high recovery rate.
4). Quick return, high profits:It is highly efficient with low cost, a good gold mining machine.
5). Standard quality: Float framework is made up of stainless steel structure, the floating body is made of high strength and light weight plastic, which means the main body of the machine is stong, durable and low failure rate.
6).Customization design: According to the different geological condition, capacity requirement planning and the customers budget, provid the most ideal product for investor.

Certifications
Lightweight Diesel Mini Dredger for Small Scale Gold Mining
Testing
Lightweight Diesel Mini Dredger for Small Scale Gold Mining
Lightweight Diesel Mini Dredger for Small Scale Gold Mining
Lightweight Diesel Mini Dredger for Small Scale Gold Mining
Lightweight Diesel Mini Dredger for Small Scale Gold Mining
Packing&Loading
Lightweight Diesel Mini Dredger for Small Scale Gold Mining
Lightweight Diesel Mini Dredger for Small Scale Gold Mining
Lightweight Diesel Mini Dredger for Small Scale Gold Mining
Lightweight Diesel Mini Dredger for Small Scale Gold Mining
Our Service
Lightweight Diesel Mini Dredger for Small Scale Gold Mining
Lightweight Diesel Mini Dredger for Small Scale Gold Mining


1. Our company signs a long-time after-sale service agreement with customers.
2. We provide rational and practical design according to customers' request.
3. We send engineers to assemble and test the machine within the period as agreed in the contract.
4. Within warranty period, we provide free repair if quality problems emerge.
5. We provide free training of operation and maintenance for customers.
6. We supply high quality accessories in low price.
7. We make an excellent filing of customers for long-term following -up service.

Company Profile
Lightweight Diesel Mini Dredger for Small Scale Gold Mining


Qingzhou Keda Environment Protection Machinery Co., Ltd

Qingzhou Keda Environment Dredging Equipment Co.,Ltd. is located in Qing­zhou city, Shandong province, China with 22000m2 area and more than 100 staff, very convenient to Qingdao sea Port, Weifang airport and Qingdao In­ternational Airport.


To be honest and adhering client-first is our service concept. To make first-class quality and service is our brand goal. To take clients as the center, strive for survival by quality and seek development by innovation is our enter­prise tenet. We provide high quality products and faultless service.


Our company has taken the lead of passing IS09001 :2008 International Quality System Certification & the General Ship Production Enterprise Technical Condi­tion Evaluation Certificate issued by ZC, to provide our customers with dredger products of high standard & quality. Products had been exported to more than 1 o countries such as Phlipplines, Russia, Indonesia, North Korea, Surinam, Congo, Mali, Fiji, Bangladesh,Argentina,Columbia etc.
