Mini Gold Dredge Machine Diesel Powered 1.5m Dredging Depth 40KG Capacity
Mini Gold Dredge Machine Diesel Powered 1.5m Dredging Depth 40KG Capacity
Mini Gold Dredge Machine Diesel Powered 1.5m Dredging Depth 40KG Capacity
Mini Gold Dredge Machine Diesel Powered 1.5m Dredging Depth 40KG Capacity
Specifications
Place of Origin :
Shandong china
Brand Name :
Keda
Certification :
CE 9001
Price :
$5,000/sets >=1 sets
MOQ :
1
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Core Components :
Engine
Type :
Mini Gold Dredger
Power Type :
Diesel
Dredging Depth :
1.5 m
Draught :
40 inch
Dimension(L*W*H) :
1.2*1.2*2
Weight :
40 KG
Warranty :
1year
After-sales Service Provided :
Engineers available to service machinery overseas
Rotate speed :
3600rmp
Head :
30m
Dredging depth :
1.5m
working capacity :
5t/h
Power :
Customized
Dimension :
550*450*450mm
Fuel consumption :
2.65L
Applicable Industries :
Energy & Mining
Showroom Location :
None
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Condition :
New
Description
Mini Gold Suction Dredge Boat For Sale
1. Mini Gold Suction Dredge Boat Feature
  • It is widely used for working of gold mining in mini river channel.
  • Mini gold dredger with a gold chute for high recovery rate, powered by a famous engine with pump, float is made up of high strength and light weight plastic.
  • The equipment is small, light weight, easy to assemble, easy to transport.
2. Mini Gold Suction Dredge Boat Descreption

Mini gold dredger with a gold chute for high recovery rate, powered by a famous engine with pump, float is made up of high strength and light weight plastic. There are advantages that small in size, easy to transportation , it is widely used for working of gold mining in mini river channel.

3. Mini Gold Suction Dredge Boat Parameter
Model QFT3-2 QFT4-3 QFT5-3
Machine size 2300*1500*1000mm 2500*1500*1000mm 2500*1500*1000mm
Diesel engine
Engine Single cylinder air cooled diesel engine Single cylinder air cooled diesel engine Single cylinder air cooled diesel engine
Power(hp) 5 7 12
Rotate Speed 3600rpm 3600rpm 3600rpm
Fuel consumption ≤284g/Kw·h ≤283g/Kw·h ≤280g/Kw·h
Fuel tank capacity 2.65L 3.3L 5.5L
Pump
Size(L*W*H) 550*450*450mm 550*470*450mm 550*500*480mm
Inlet/Outlet diameter 50mm(2inch) 80mm(3inch) 100mm(4inch)
Lift 30m 30m 25m
Max dredging depth 0.5m 1m 1.5m
Working capacity 6m³/h 10m³/h 15m³/h
Gold Chute
Size(L*W*H) 400*1500mm 500*1700mm 500*1700mm
Remark With carpet With carpet With carpet
Floating
Size(L*W*H)mm 1600*395*370 1600*395*370 1600*395*370
Handheld sucker 3inch 4inch 5inch

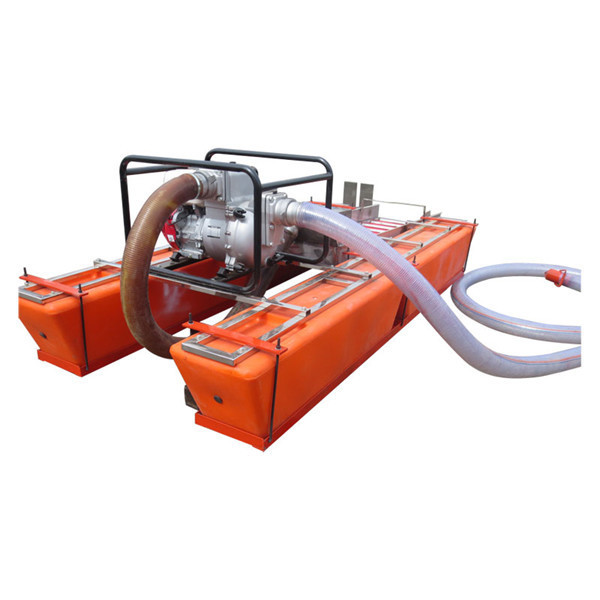

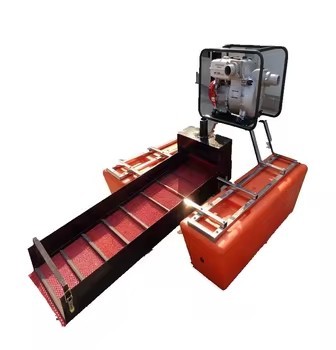

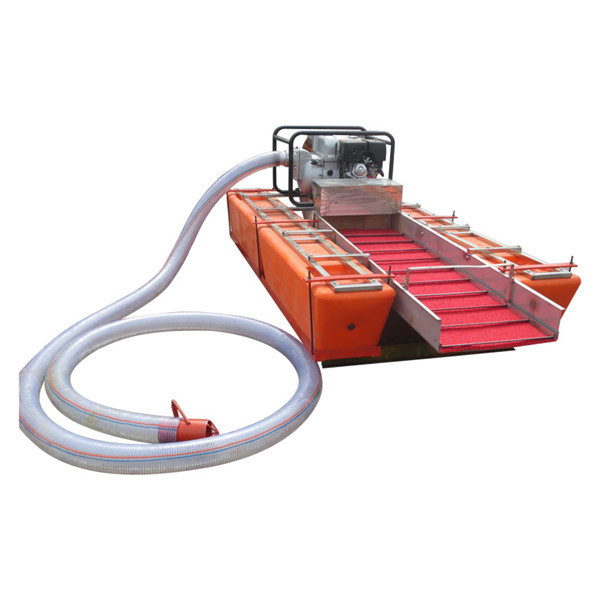

4. Mini Gold Suction Dredge Boat Showing Pictures
Mini Gold Dredge Machine Diesel Powered 1.5m Dredging Depth 40KG Capacity Mini Gold Dredge Machine Diesel Powered 1.5m Dredging Depth 40KG Capacity Mini Gold Dredge Machine Diesel Powered 1.5m Dredging Depth 40KG Capacity
5. Company Introduce

Our products can design as customers' requirement and geographical condition. The products are of a great variety including 800-1500m3/h.

We are a modern large-scale mine Small Gold Dredger ral processing equipment manufacturer for research and development, engineering design, producing installation, commissioning and after sale service with the good CAD Aided Design R & D center and physical mineral processing laboratory.

We attach the development of scientific research, and form strategic partnership with the major research institutions. And we had established good cooperation with Import and export trading company, established Shandong magnetic equipment Research Instituting.

  1. Dredgers
    • Cutter Suction Dredgers
    • Bucket Chain Dredgers
    • Auto Pump Dredgers
    • Jet Suction Dredgers
    • Gold dredgers
  2. Mineral Processing Machinery
    • Gold Dredging & Mining Machinery
    • Iron Mining Dredging & Mining Machinery
  3. Sand Processing Machinery
    • Sand Sieving Machinery
    • Sand Washing Machinery
6. Why choose us?
  • A.The best quality

    As original equipment manufacturer, we strictly comply to the quality standards that make our equipment world class and competing effectively with other known manufacturers from Europe and America. All the products must be checked by our specialized inspectors.

  • B.The best price

    As the original manufacturer, our prices are cheaper by a great margin compared to the trading companies. In all cases, you will have a big savings from price.

  • C.New and rational design

    we have a special design team, which can design the suitable dredger according to customer’s request.

  • D.Good after-sale service

    Our engineers will arrive your worksite to assemble the dredger. Meanwhile, we can train your staff for free, until they can operate the dredger by themselves.

10. In order to provide best proposal for you,could you tell us the details as below:
  • Working capacity(m3/h)of the dredger
  • Depth of the water (m)? What is the digging depth (below the water)?
  • Gold extraction type: use gold carpet, shaking chute, or centrifugal concentrator ?
