Specifications
Place of Origin :
Shandong china
Brand Name :
Keda
Certification :
CE 9001
Packaging Details :
in Bulk or in Container
Price :
$2,300/sets >=1 sets
Type :
Gravity Separator
Production Capacity :
90%
Voltage :
220V/360V
Dimension(L*W*H) :
7000*2000*3000mm
Weight :
150 KG
Warranty :
one year
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Core Components :
Engine
Key Selling Points :
High Rigidity
Processing capacity (t/h) :
30-50
Feeder hopper size :
2000*2200mm
Gold chutes with carpet size :
1000*2000mm
name :
gold separation shaking table
Applicable Industries :
Energy & Mining
Showroom Location :
None
Condition :
New
Marketing Type :
Hot Product 2019
Warranty of core components :
1 Year
Port :
Qingdao
MOQ :
1
Description
gold separating machine mining shake table
1. gold separation shaking table Work principle and process:

This machine can be moved and disassembled. After installation in the mine area, using excavator to feed the raw ore materials in the hopper, they flow into the trammel to be separated by the water impulsive force, the separated small stones will be kicked out and the rest sand and gold mixture will flow into the sluice –box to be extracted. The gold will be left on the gold blanket and sand will be flow out.

2. gold separation shaking table technical and parameter

Trommel Gold Machine

Item 6-S size
Bed model LY(S)
Bed surface size(mm) 1100*500*430
Select extraction area(m3) 0.51
Feed size(mm) coarse sand 2-0.5
Feeding density (%) 10-30
processing capacity (t/h) coarse sand 0.1-0.2
water consumption (t/h) 0.1-0.5
stroke (mm) 9-17
frequency of stroke (time/min) 130-210
transverse slope (degree) 0°~8°
Electric motor model Y80L-4
power(kw) 0.55
rotate speed(r/min) 1400
V- belt (mm) A-1245
Dimension(mm)(L*W*H) 1530*500*800
Water pump 1set
Water pipe 20meters

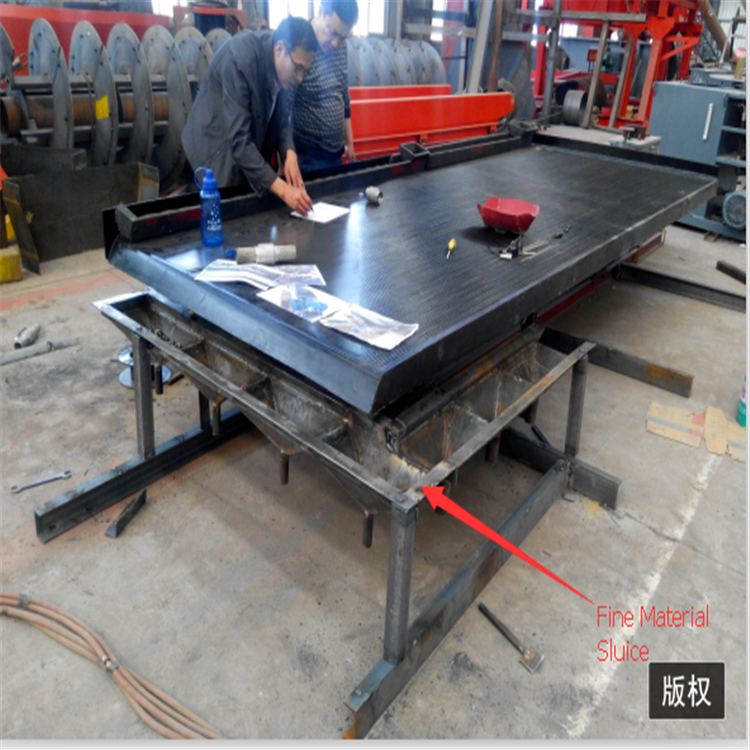

Chute for fine material and tailing 1sets
