6 s Shaking table is one of the main equipment of gravity concentration. Gravity gold 6 s shaking table is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore. Also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope is 2-0.037 milimeters.

Working principle:

The working principle of 6 s Shaking Table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fine shaped zoning. Then different products can be produced.

Operation:

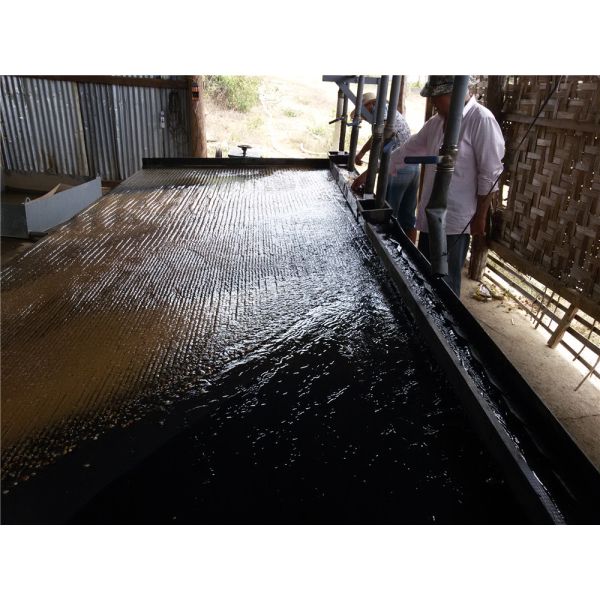

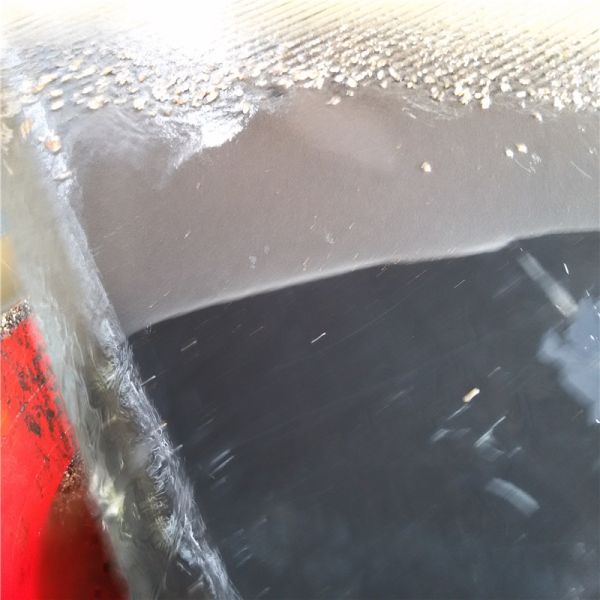

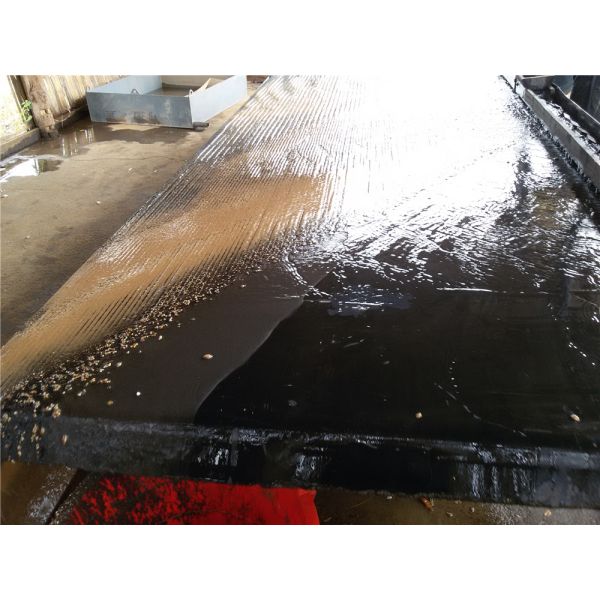

Put the raw materials into the feeding launder, and put some water in to make it into slurry of concentration of 20% to 25%, and gravity flow to the deck. The particle group become loose and layered because of the rinsing of water and shaking of the deck in the bed ditch. After the layered, the upper particle and the bottom particle move in different direction because of the different pressure of flowing water and the friction of the bed surface. The upper light particle moves downward along the transverse of bed surface result of the stronger flowing water., this side called tailing side. The heavy mineral particles which located in the bottom of bed layer was influenced by differential movement of bed surface, thus them move to the opposite of the drive end, and we call this point concentrate side. Because of the different density, granularity, and the directions of movement, the groups of mineral particles spread in Fan-shaped along the diagonal of the feeding launder. The production discharge along the edge of bed surface, the discharge line is so long, so that 6 s shaking table could produce many kinds of different quality product precisely.

One 20' GP can Load into 10 sets 6 s Shaking Table (Gravity separator table), One 40' GP can load into 20 sets 6 s ShakingTable (Gravity separator table).

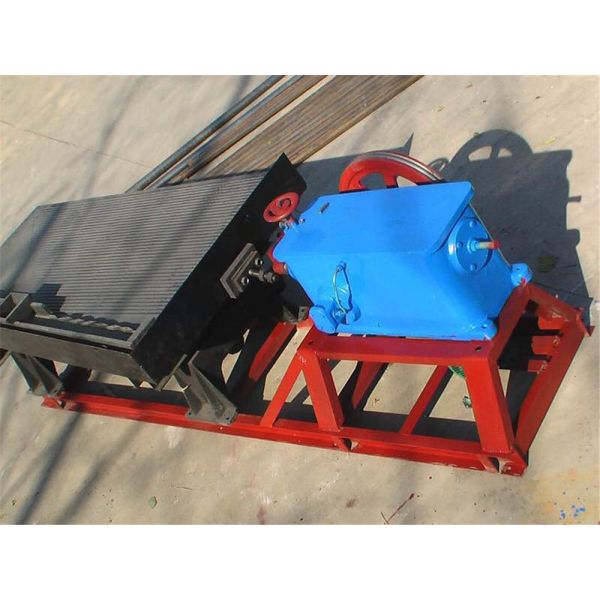

Steel fram confrim, convenient for transport.

More stable, more convenient, no need pour the concrete to fix the anchor bolts on the ground. Fast install and operation, easy to dismount and move, especially apply cable to the uneven ground, false and virtual ground operation.

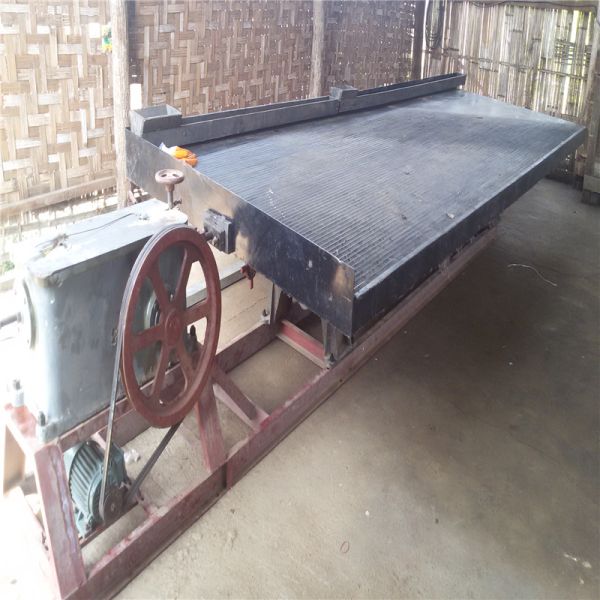

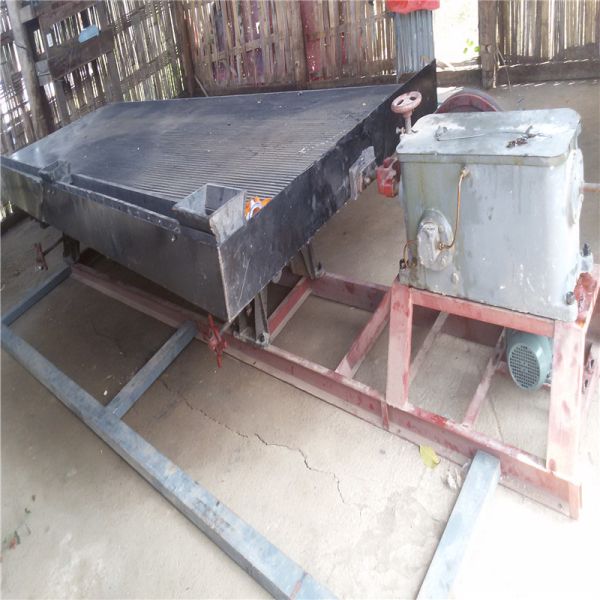

Easy to install, just need pour concrete to fix the anchor bolts on the ground, same effect compare with the normal shaking table, the price is moderate. Most clients like choose it.

Without mounting bracket, need to use concrete pouring cement casting pile to put shaking table, not convenient to move, but relatively save cost.

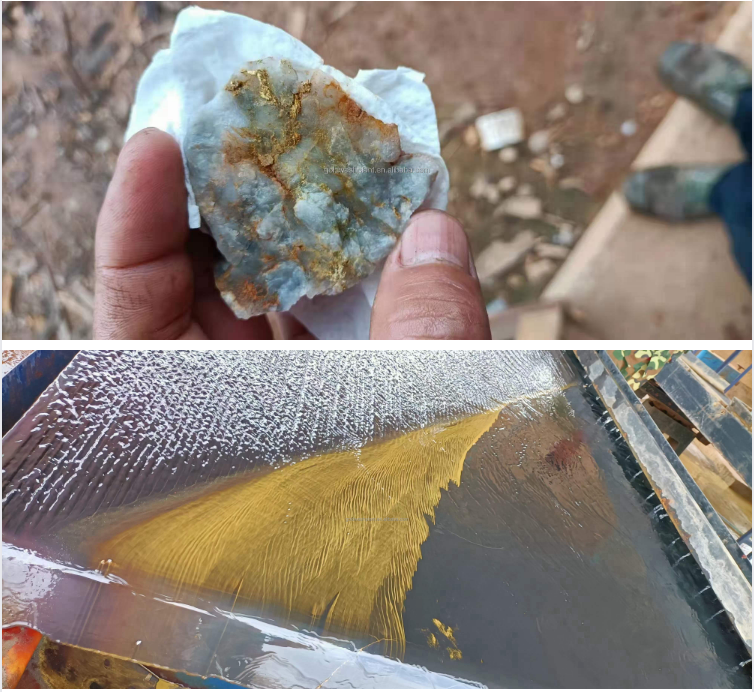

Are you still washing gold mine by hand?

Qingzhou keda machinery is an experienced supplier of complete set mining equipments, professional at providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect. As well as complete set small lab mining machines.

• +10 years history FACTORY at mining machinery.
• Provide engineer team after sales service.
• Provide Complete set mineral processing plant. (Flow Chart Design, Foundation Drawings, free mineral samples Test and Guide Installation Operation.)
• Provide Sample testing service in factory lab for free.
• Provide professional Mining Solution Consulting.
