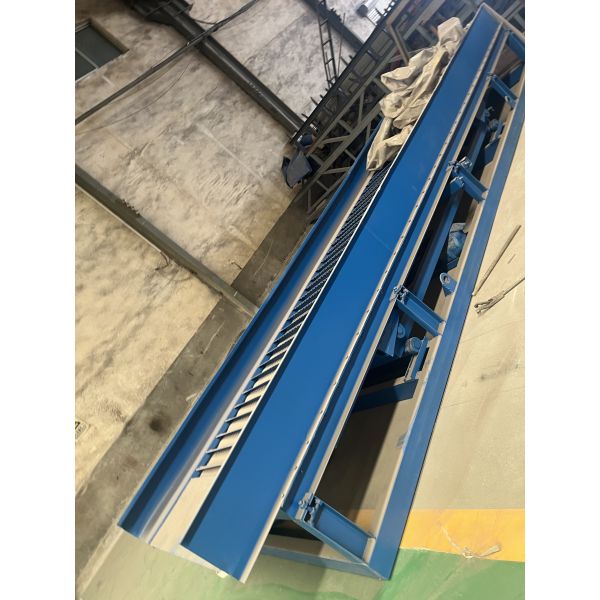

Gold Sluice Box with 98% Production Capacity 380v Voltage and 4.3*1.7*1m Dimension for High-Grade Concentrate
Gold Sluice Box with 98% Production Capacity 380v Voltage and 4.3*1.7*1m Dimension for High-Grade Concentrate
Gold Sluice Box with 98% Production Capacity 380v Voltage and 4.3*1.7*1m Dimension for High-Grade Concentrate
Gold Sluice Box with 98% Production Capacity 380v Voltage and 4.3*1.7*1m Dimension for High-Grade Concentrate
Gold Sluice Box with 98% Production Capacity 380v Voltage and 4.3*1.7*1m Dimension for High-Grade Concentrate
Gold Sluice Box with 98% Production Capacity 380v Voltage and 4.3*1.7*1m Dimension for High-Grade Concentrate
Gold Sluice Box with 98% Production Capacity 380v Voltage and 4.3*1.7*1m Dimension for High-Grade Concentrate
Gold Sluice Box with 98% Production Capacity 380v Voltage and 4.3*1.7*1m Dimension for High-Grade Concentrate
Gold Sluice Box with 98% Production Capacity 380v Voltage and 4.3*1.7*1m Dimension for High-Grade Concentrate
Gold Sluice Box with 98% Production Capacity 380v Voltage and 4.3*1.7*1m Dimension for High-Grade Concentrate
Specifications
Brand Name :
Keda
Place of Origin :
Shandong china
MOQ :
1
Price :
$6,800/sets >=1 sets
Type :
Gravity Separator
Production Capacity :
98%
Voltage :
380v
Dimension(L*W*H) :
4.3*1.7*1m
Weight :
1400 KG
Warranty :
1 Year
Machinery Test Report :
Not Available
Video outgoing-inspection :
Provided
Core Components :
Motor
Key Selling Points :
Long Service Life
Product name :
Sluice Box
Keywords :
Gold Separation Machine
Application :
Alluvial Gold Washing
Function :
Screening\separation\sorting\sieving
Applicable Industries :
Construction works , Energy & Mining
Showroom Location :
None
Condition :
New
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Certification :
CE 9001
Description
Product Overview

Gold Sluice Box For Using With Gold Washing Plant

Gold Sluices are long, narrow "boxes" that water passes through when put in a creek or stream. Sluicing is a method of separating and recovering gold from the placer gravel by the use of running water. Gold is caught or trapped by golden trapet.
Gold sluice boxes are often used in the recovery of black sands, gold, and other minerals from placer deposits during placer mining operations.
The vibrating gold sluice box is a new type of placer gold ore beneficiation equipment developed on the basis of a fixed chute. It belongs to the mineral gravity separation tank equipment. It effectively overcomes the compaction phenomenon of the chute andsignificantly improves the recovery rate of fine-grained gold. It has a very good effect on capillary gold.
Gold Sluice Box with 98% Production Capacity 380v Voltage and 4.3*1.7*1m Dimension for High-Grade Concentrate
Details Images
Gold Sluice Box with 98% Production Capacity 380v Voltage and 4.3*1.7*1m Dimension for High-Grade Concentrate
Gold Sluice Box with 98% Production Capacity 380v Voltage and 4.3*1.7*1m Dimension for High-Grade Concentrate
Product parameters
ITEM
Model 1
Model 2
Overall dimensions (m)
5.3*1.9*1.2M
4.3*1.7*1
Number of spray pipes
1set
1set
Diameter of spray pipe
50
50
Pump flow rate (m³)
25
20
Pump head
26
26
Pump power (kw)
2.2
2.2
Number of sensors
4
4
Drive chain model
10A
10A
Support material
8/10#Channel steel
8/10#Channel steel
Base material
12#Square tube
12#Channel steel
Number of bearings and supporting wheels
16
12
Bearing and supporting roller model
6309/6203
6309/6203
Lifting frame materials
89 thick-walled round tube
89 thick-walled round tube
Electric lifting weight (T)
1
1
Number of supporting legs
2
2
Rubber sheet size
1.5----4.3
1.2---3.3
Motor power (kw)
3
3
Motor manufacturer
HUAYU
HUAYU
Reducer model
200
200
Reducer manufacturers
TAIYANG
TAIYANG
Control cabinet switch manufacturer
Delixi/Chint
Delixi/Chint
Number of control cabinets
1
1
Number of V-belts
2 piece
2piece
Total weight of equipment (T)
1.8
1.4
Our Advantages

1. Simple structure
2. Easy to operate and durable
3. High working efficiency
4.High recovery rate
5.Wide range of applications
Why Choose Us

Qingzhou KEDA Environment Proctection Machinery Co., Ltd

1.More than 10 years of production experience in dredgers and mineral processing equipment
2.Strong technical service team, can provide customized services
3.Own design team with 21 patents
4.Industry and Trade Integration Enterprise
5.The factory covers an area of over 22,000 square meters
6. 3 production lines-dredger-cleaning boat-gold mining equipment
