Specifications
Place of Origin :
Shandong china
Brand Name :
Keda
Certification :
CE 9001
Packaging Details :
in bulk
Supply Ability :
10 Set/Sets per Month
Price :
$2,500/sets >=1 sets
Type :
Gravity Separator
Production Capacity :
92%
Voltage :
220V
Weight :
200 KG
Warranty :
1 year
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Core Components :
Motor
Key Selling Points :
High Rigidity
After-sales Service Provided :
Engineers available to service machinery overseas
Color :
Customized
Warrantly :
12 Months
Applicable Industries :
Energy & Mining
Showroom Location :
None
Condition :
New
Marketing Type :
Hot Product 2019
Warranty of core components :
1 Year
Port :
Qingdao/Tianjin
MOQ :
1
Description
Shaking table For Gold Concentration/separation shaker table/mobile gravity mineral separator shake table
Product Description
Features

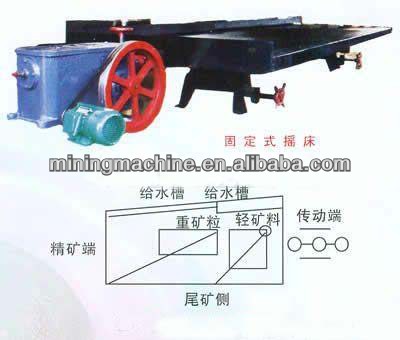

Shaking table is one of the major gravity ore dressing machines, in some aspects it is the most important gravity ore dressing machine. It is designed to concentrate the fine-grinded or micro-grinded rare metal & precious material.

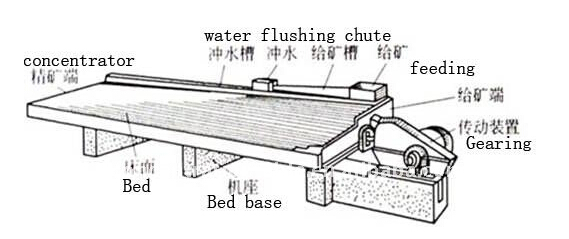

The shaking table separate the mineral granular based on the gravity differences between the different materials inside the pulp. When the pulp reached the table surface from the feeding channel, the granular in it will be effected by the gravity force, water flow force, the inertial force and friction force which comes from the reciprocating movement of the table surface, under the effect of these four forces, the granular inside the pulp will be classified and moved to the different direction: the high density one will go front and drop from the concentration end, the gangue will go to the tailing side, and the middles will be re-concentrated on the shaking table

Technical Specification:
Name Unit Coarse Sand Table Fine Sand Table Slurry Table
Table Dimension Length mm 4450 4450 4450
Driving End mm 1855 1855 1855
Concentrate End mm 1546 1546 1546
Max. Approved Grain Size mm 2 0.5 0.15
Working Capacity t/d 30-60 10-20 15-25
Concentration % 25-30 20-25 15-25
Stroke mm 16-22 11-16 8-16
Frequency f 45-48 48-53 50-57
Water t/d 80-150 30-60 10-17
Electric Motor Power kw 1.1 1.1 1.1

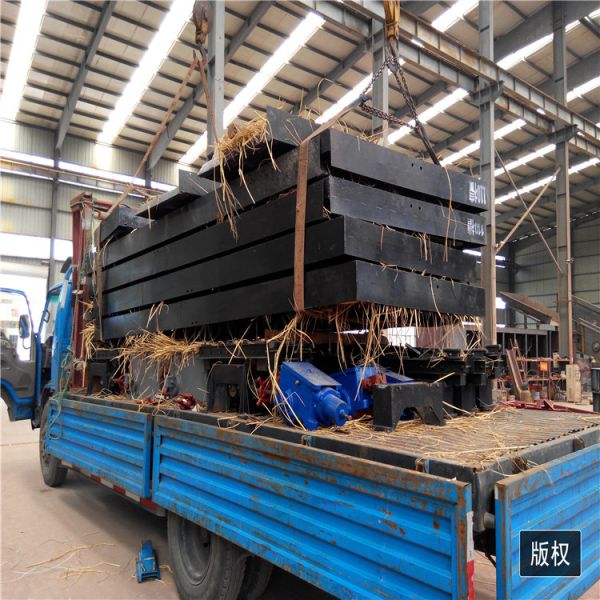

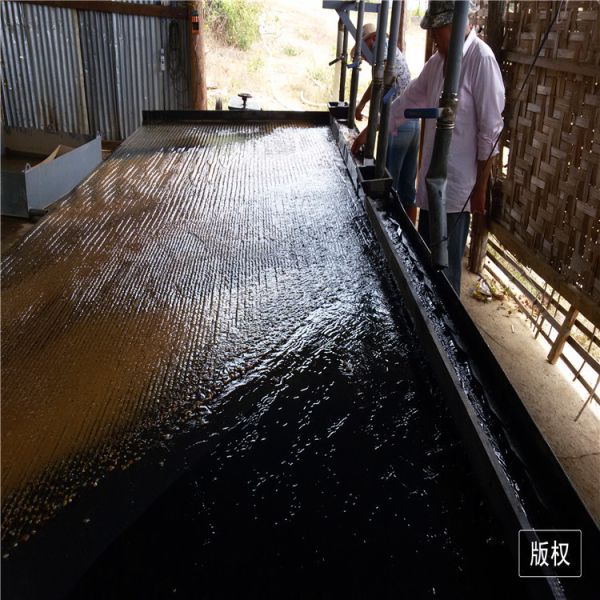

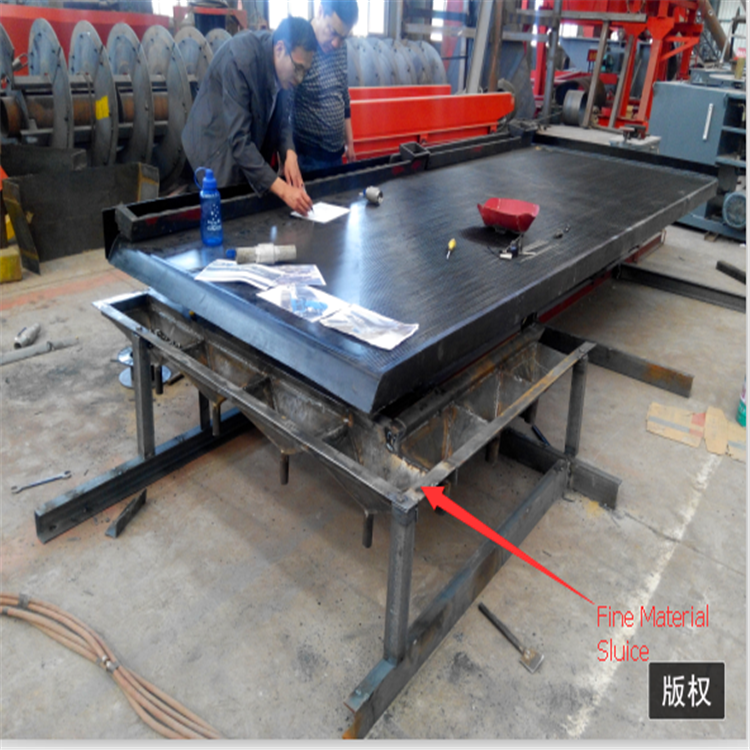

Product Show

Mobile 92% Production Capacity Shaking Table with 220V Voltage and 200 KG Weight for Gold Concentration

Mobile 92% Production Capacity Shaking Table with 220V Voltage and 200 KG Weight for Gold Concentration

Mobile 92% Production Capacity Shaking Table with 220V Voltage and 200 KG Weight for Gold Concentration Mobile 92% Production Capacity Shaking Table with 220V Voltage and 200 KG Weight for Gold Concentration Mobile 92% Production Capacity Shaking Table with 220V Voltage and 200 KG Weight for Gold Concentration

Certificates

Mobile 92% Production Capacity Shaking Table with 220V Voltage and 200 KG Weight for Gold Concentration

Our Services
  • Mining project consulting.
  • Testing sample in laboratory.
  • Providing whole production line equipments.
  • Dispatching engineer overseas guidance for equipments installation and testing.
  • Training your local first batch workers.
  • Help you to solve the problems during the equipment operation.
  • Spare parts provided.
  • Engineers available to service overseas.
