Vibrating Sluice Box Gravity Separator with Long Service Life Simple Structure and Easy to Operate for Gold Mining
Vibrating Sluice Box Gravity Separator with Long Service Life Simple Structure and Easy to Operate for Gold Mining
Vibrating Sluice Box Gravity Separator with Long Service Life Simple Structure and Easy to Operate for Gold Mining
Vibrating Sluice Box Gravity Separator with Long Service Life Simple Structure and Easy to Operate for Gold Mining
Vibrating Sluice Box Gravity Separator with Long Service Life Simple Structure and Easy to Operate for Gold Mining
Vibrating Sluice Box Gravity Separator with Long Service Life Simple Structure and Easy to Operate for Gold Mining
Vibrating Sluice Box Gravity Separator with Long Service Life Simple Structure and Easy to Operate for Gold Mining
Vibrating Sluice Box Gravity Separator with Long Service Life Simple Structure and Easy to Operate for Gold Mining
Vibrating Sluice Box Gravity Separator with Long Service Life Simple Structure and Easy to Operate for Gold Mining
Vibrating Sluice Box Gravity Separator with Long Service Life Simple Structure and Easy to Operate for Gold Mining
Vibrating Sluice Box Gravity Separator with Long Service Life Simple Structure and Easy to Operate for Gold Mining
Vibrating Sluice Box Gravity Separator with Long Service Life Simple Structure and Easy to Operate for Gold Mining
Specifications
Place of Origin :
Shandong china
Brand Name :
Keda
Packaging Details :
In containers or as required.
Supply Ability :
1000 Set/Sets per Year
Price :
$5,000/sets >=1 sets
Type :
Gravity Separator
Production Capacity :
98%
Voltage :
380v
Dimension(L*W*H) :
4.3*1.7*1m
Weight :
1400 KG
Warranty :
1 Year
Machinery Test Report :
Not Available
Video outgoing-inspection :
Provided
Core Components :
Motor
Key Selling Points :
Long Service Life
Product name :
Sluice Box
Keywords :
Gold Separation Machine
Applicable Industries :
Construction works , Energy & Mining
Showroom Location :
None
Condition :
New
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Certification :
CE 9001
MOQ :
1
Description
Product Overview
Gold Sluice Box For Using With Gold Washing Plant

Gold Sluices are long, narrow "boxes" that water passes through when put in a creek or stream. Sluicing is a method of separating and recovering gold from the placer gravel by the use of running water. Gold is caught or trapped by golden trapet.

Gold sluice boxes are often used in the recovery of black sands, gold, and other minerals from placer deposits during placer mining operations.

The vibrating gold sluice box is a new type of placer gold ore beneficiation equipment developed on the basis of a fixed chute. It belongs to the mineral gravity separation tank equipment. It effectively overcomes the compaction phenomenon of the chute andsignificantly improves the recovery rate of fine-grained gold. It has a very good effect on capillary gold.

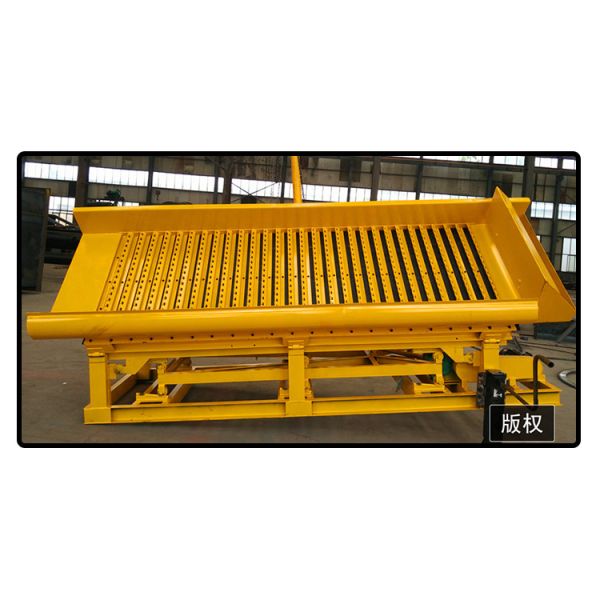

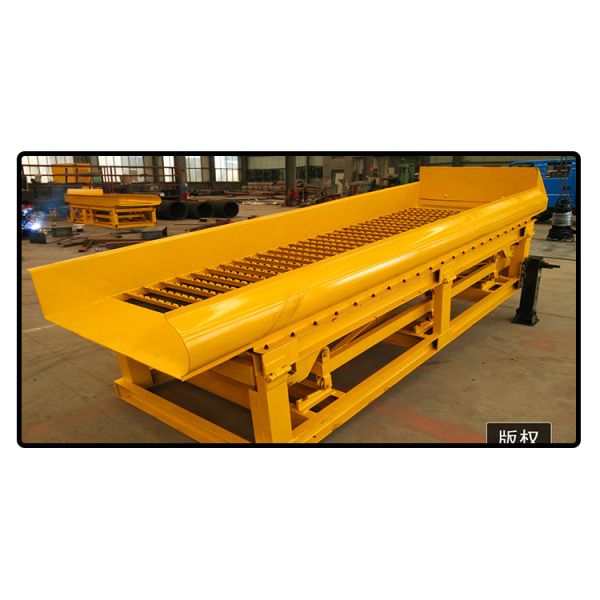

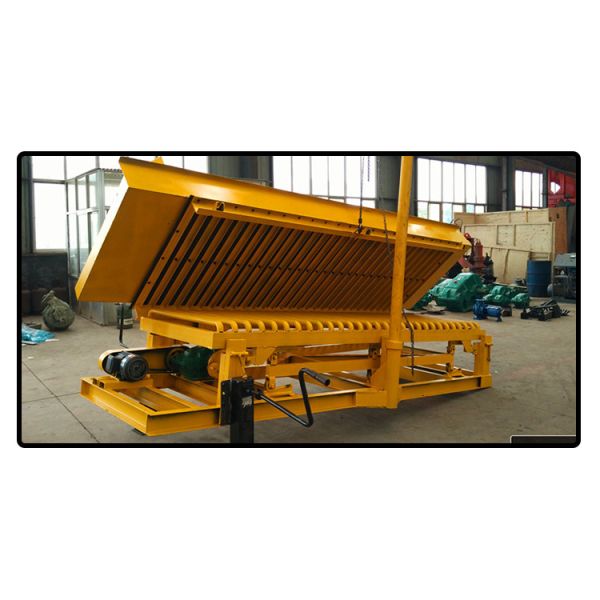

Details Images
Vibrating Sluice Box Gravity Separator with Long Service Life Simple Structure and Easy to Operate for Gold Mining
Vibrating Sluice Box Gravity Separator with Long Service Life Simple Structure and Easy to Operate for Gold Mining
Vibrating Sluice Box Gravity Separator with Long Service Life Simple Structure and Easy to Operate for Gold Mining
Product parameters
ITEM Model 1 Model 2
Overall dimensions (m) 5.3*1.9*1.2M 4.3*1.7*1
Number of spray pipes 1set 1set
Diameter of spray pipe 50 50
Pump flow rate (m³) 25 20
Pump head 26 26
Pump power (kw) 2.2 2.2
Number of sensors 4 4
Drive chain model 10A 10A
Support material 8/10#Channel steel 8/10#Channel steel
Base material 12#Square tube 12#Channel steel
Number of bearings and supporting wheels 16 12
Bearing and supporting roller model 6309/6203 6309/6203
Lifting frame materials 89 thick-walled round tube 89 thick-walled round tube
Electric lifting weight (T) 1 1
Number of supporting legs 2 2
Rubber sheet size 1.5----4.3 1.2---3.3
Motor power (kw) 3 3
Motor manufacturer HUAYU HUAYU
Reducer model 200 200
Reducer manufacturers TAIYANG TAIYANG
Control cabinet switch manufacturer Delixi/Chint Delixi/Chint
Number of control cabinets 1 1
Number of V-belts 2 piece 2piece
Total weight of equipment (T) 1.8 1.4
Our Advantages
  1. Simple structure
  2. Easy to operate and durable
  3. High working efficiency
  4. High recovery rate
  5. Wide range of applications
Why Choose Us
Qingzhou KEDA Environment Proctection Machinery Co., Ltd
  1. More than 10 years of production experience in dredgers and mineral processing equipment
  2. Strong technical service team, can provide customized services
  3. Own design team with 21 patents
  4. Industry and Trade Integration Enterprise
  5. The factory covers an area of over 22,000 square meters
  6. 3 production lines-dredger-cleaning boat-gold mining equipment
