1.75lbs Self Furring Metal Lath In 27x96in Dimensions Diamond Hole For Masonry Tile Work
1.75lbs Self Furring Metal Lath In 27x96in Dimensions Diamond Hole For Masonry Tile Work
1.75lbs Self Furring Metal Lath In 27x96in Dimensions Diamond Hole For Masonry Tile Work
1.75lbs Self Furring Metal Lath In 27x96in Dimensions Diamond Hole For Masonry Tile Work
1.75lbs Self Furring Metal Lath In 27x96in Dimensions Diamond Hole For Masonry Tile Work
1.75lbs Self Furring Metal Lath In 27x96in Dimensions Diamond Hole For Masonry Tile Work
Specifications
Brand Name :
WSFIVIN
Model Number :
25EML
Certification :
ESR-5419 (ICC-ES)
Place of Origin :
CHINA
MOQ :
1000
Payment Terms :
T/T,L/C,D/P,D/A
Supply Ability :
10000PCS/DAY
Delivery Time :
7-15 days
Packaging Details :
10Pcs./Bundle 250/500Pcs. / Pallet
Product Name :
Lightweight 1.75lbs Self-furring Metal Lath In 27x96in Dimensions
Key Words :
Self-furring Metal Lath
Raw Material :
Galvanized Sheet
Thinckness :
0.35mm 0.013in
Width :
27 inches
Length :
96 inches
Hole Pattern :
Diamond
Application :
Plastering, Stucco, Masonry, and Tile Work
Description

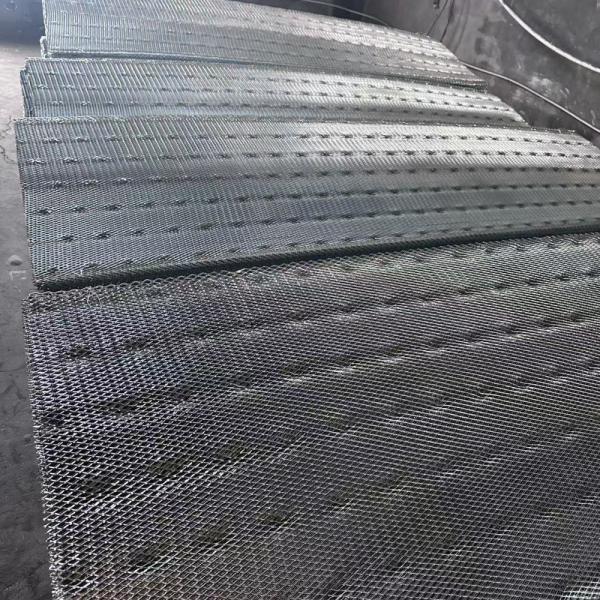

Lightweight 1.75LBS Self-Furring Metal Lath in 27x96in Dimensions

Overview

WSFIVIN’s 1.75LBS Self-Furring Metal Lath revolutionizes lightweight plaster support systems with its 27"x96" modular design, reducing installation time by 40% while maintaining ASTM A653 compliance. Ideal for renovation projects and overhead applications, this lath combines a featherlight construction with a robust hexagonal mesh for enhanced plaster adhesion.

Key Features

1.Ultra-Lightweight Performance

-Weighs 1.75LBS per square yard — 50% lighter than standard 3.4LBS lath, slashing labor costs and simplifying vertical/high-ceiling installations.

-27”x96” pre-cut sheets minimize on-site cutting waste by 30%.

2.Self-Furring Technology

-3/16” pyramid dimples create automatic 3/8” substrate spacing, ensuring consistent plaster thickness and airflow.

-Expanded 1” diamond mesh pattern adapts to curved surfaces for ornamental plasterwork.

3.Durability Meets Affordability

-G30 galvanized coating (30g/m² zinc) provides 20+ years of corrosion protection in drywall and interior applications.

-Passes ASTM C1063 racking tests for shear resistance up to 90 PSI.

Applications

-Residential Retrofits: Ideal for lightweight ceiling repairs in aging homes.

-Commercial Partitions: Reduces structural load in high-rise office upgrades.

-Artisan Plaster: Supports intricate cornice and medallion installations.

-Temporary Structures: Cost-effective for event venue decorative walls.

Service Advantages

-MOQ: 100 sheets | Custom cutting to 24”x48” for tight spaces.

-Free 3D BIM files for installation planning.

CODE

Wt./Sq.Yd.(lbs)

Sheet Size

Standard Thickness

Pcs./Bundle

Pcs./Pallet

DML1.75

1.75 LBS

27” x 96”

0.35mm

10

500

DML2.5

2.5 LBS

27” x 96”

0.5mm

10

500

DML3.4

3.4 LBS

27” x 96”

0.638mm

10

250

FAQ

1. What is expanded metal lath used for?

It is mainly used as a base for stucco or plaster on walls, ceilings, and soffits. The mesh provides excellent keying for cementitious materials.

2. Does your product meet U.S. and Canadian standards?

Yes. Our expanded metal lath complies with ASTM C847 and CSA standards, and is ICC-ES(5419) certified, ensuring approval for a wide range of North American construction projects.

3. Do you offer different types and weights?

Yes. We offer various rib profiles, mesh patterns, and weights such as 1.75 lbs, 2.5 lbs, and 3.4 lbs per sheet to suit different application needs.

4. What is your MOQ and lead time?

Our minimum order is 2 pallets (total 1,000 sheets, 500 sheets per pallet). Typical lead time is 15–20 working days, depending on order volume and requirements.

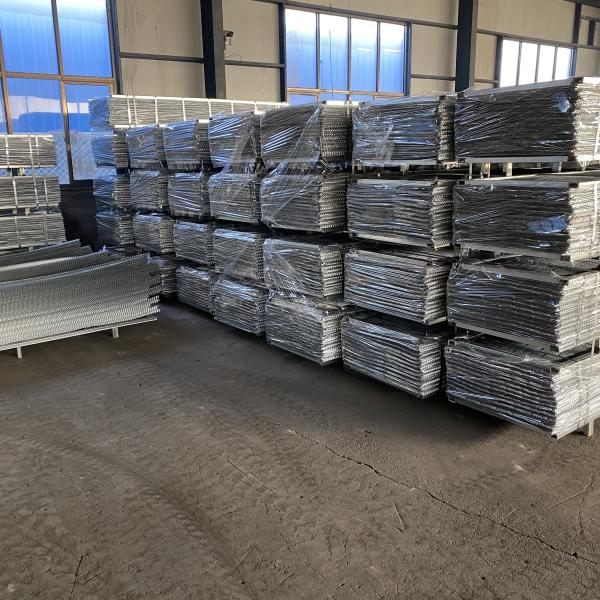

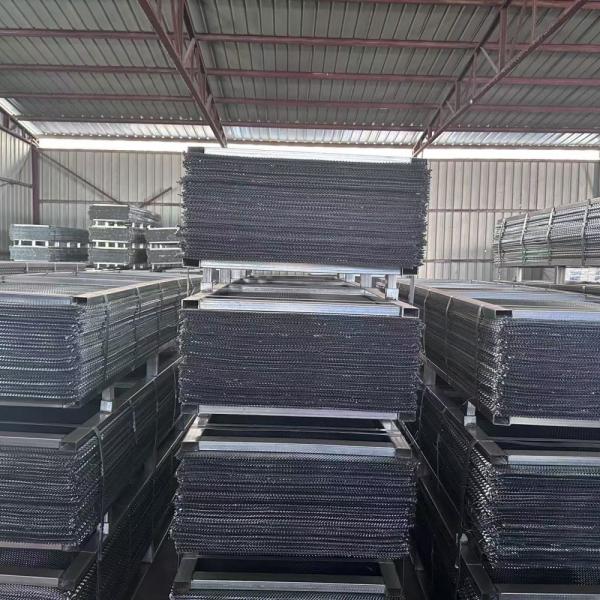

5. How is the product packaged for export?

We use standard palletized packaging for safe and efficient container loading and unloading. Custom labels and weather-resistant wrapping are also available upon request.
