Specifications
Brand Name :
WSFIVIN
Model Number :
175EML
Certification :
ESR-5419 (ICC-ES)
Place of Origin :
CHINA
MOQ :
1000
Payment Terms :
T/T,L/C,D/P,D/A
Supply Ability :
10000PCS/DAY
Delivery Time :
7-15 days
Packaging Details :
10Pcs./Bundle 250/500Pcs. / Pallet
Product Name :
Precision-welded Self-furring Metal Lath For Interior Plastering
Key Words :
Self-furring Metal Lath
Application :
Exterior wall protection, exterior wall processing
Surface treatment :
Galvanized
Weave style :
Diamond lattice
Production technology :
Tensile expansion
Description

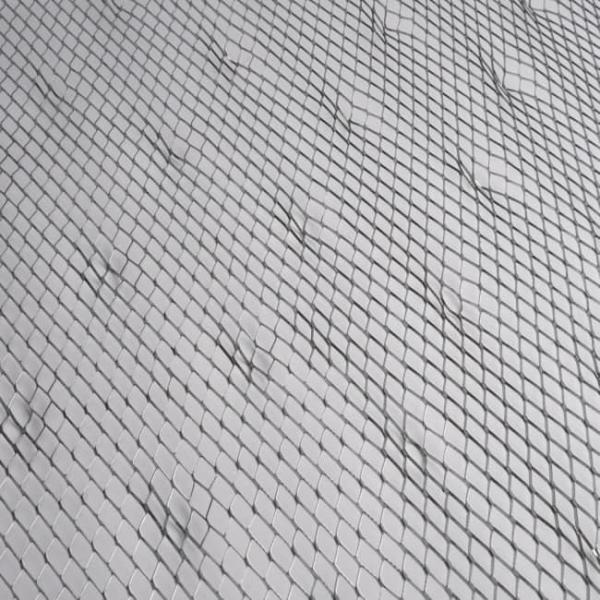

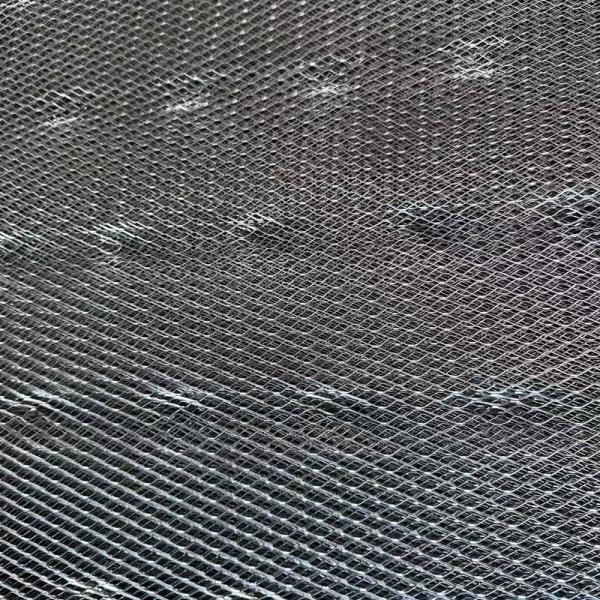

Product Description for Precision-Welded Self-Furring Metal Lath for Interior Plastering

Overview
WSFIVIN’s Precision-Welded Self-Furring Lath ensures seamless plaster adhesion for interior walls and ceilings, featuring 20GA cold-rolled steel and robotic welding technology to eliminate sharp edges. With optimized 5/16" self-furring dimples, this lath simplifies installation in hotels, offices, and residential spaces by reducing plastering time by 40%.

Key Advantages

1.Seamless Welded Joints

-Laser-aligned welds prevent mesh separation under humidity shifts, ideal for bathroom and kitchen ceilings.

-Burr-free edges protect installer hands and plaster trowels.

2.Plaster Optimization

-2" hexagonal mesh channels lock gypsum/venetian plaster uniformly for zero cracks.

Phosphatized coating improves compound bonding strength by 30%.

3.Lightweight Design

-1.5lbs/sq.yd density allows single-person handling for attics and sloped ceilings.

-Roll-form cuts minimize on-site waste for curved archways8.

Technical Specifications

-Material: Cold-rolled steel | Finish: Electro-galvanized (Z275 coating)

-Dimensions: 27"x96" sheets | Mesh Pattern: 2" hexagonal

-Standards: ASTM C1063 (interior lath installation)

Applications

-Luxury Hotels: Vaulted lobby ceilings and decorative cornices

-Medical Facilities: Smooth walls in MRI rooms (non-magnetic properties)

-Reno Projects: Overlay for damaged drywall in condos

-Soundproofing: Embedded in acoustic plaster systems

Service Flexibility

-MOQ: 500 sheets | Pre-cut lengths for elevator shafts

-Free sample swatches to test plaster compatibility

CODE

Wt./Sq.Yd.(lbs)

Sheet Size

Standard Thickness

Pcs./Bundle

Pcs./Pallet

DML1.75

1.75 LBS

27” x 96”

0.35mm

10

500

DML2.5

2.5 LBS

27” x 96”

0.5mm

10

500

DML3.4

3.4 LBS

27” x 96”

0.638mm

10

250

FAQ

1. What is expanded metal lath used for?

It is mainly used as a base for stucco or plaster on walls, ceilings, and soffits. The mesh provides excellent keying for cementitious materials.

2. Does your product meet U.S. and Canadian standards?

Yes. Our expanded metal lath complies with ASTM C847 and CSA standards, and is ICC-ES(5419) certified, ensuring approval for a wide range of North American construction projects.

3. Do you offer different types and weights?

Yes. We offer various rib profiles, mesh patterns, and weights such as 1.75 lbs, 2.5 lbs, and 3.4 lbs per sheet to suit different application needs.

4. What is your MOQ and lead time?

Our minimum order is 2 pallets (total 1,000 sheets, 500 sheets per pallet). Typical lead time is 15–20 working days, depending on order volume and requirements.

5. How is the product packaged for export?

We use standard palletized packaging for safe and efficient container loading and unloading. Custom labels and weather-resistant wrapping are also available upon request.
