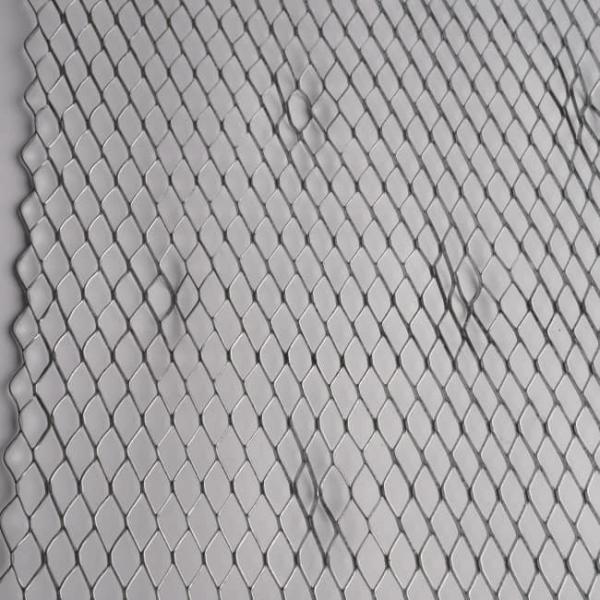

3.4lbs Heavy Gauge Self Furring Metal Lath 0.638mm Thickness For Structural Stability
3.4lbs Heavy Gauge Self Furring Metal Lath 0.638mm Thickness For Structural Stability
3.4lbs Heavy Gauge Self Furring Metal Lath 0.638mm Thickness For Structural Stability
3.4lbs Heavy Gauge Self Furring Metal Lath 0.638mm Thickness For Structural Stability
3.4lbs Heavy Gauge Self Furring Metal Lath 0.638mm Thickness For Structural Stability
3.4lbs Heavy Gauge Self Furring Metal Lath 0.638mm Thickness For Structural Stability
Specifications
Brand Name :
WSFIVIN
Model Number :
DML34
Certification :
ESR-5419 (ICC-ES)
Place of Origin :
CHINA
MOQ :
1000
Payment Terms :
T/T,L/C,D/P,D/A
Supply Ability :
10000PCS/DAY
Delivery Time :
7-15 days
Packaging Details :
10Pcs./Bundle 250/500Pcs. / Pallet
Product Name :
3.4lbs Heavy-gauge Self-furring Metal Lath For Structural Stability
Key Words :
Self-furring Metal Lath
Brand :
WSFIVIN
Packing :
250Pcs/pallet
Sample :
Free sample is available
Hole Pattern :
Diamond
Description

3.4lbs Heavy-gauge Self-furring Metal Lath for Structural Stability

Overview
WSFIVIN’s Heavy-gauge Self-furring Metal Lath (3.4lbs/sq.yd) delivers industrial-grade reinforcement for ceilings and walls in high-traffic environments, featuring 16GA steel thickness to withstand seismic activity and heavy mechanical loads. With pre-formed 5/16" furring dimples and galvanized G60 durability, it addresses critical stability demands in multi-story buildings and earthquake-prone regions.

Key Features

1.Structural Reinforcement

-3.4lbs/sq.yd density resists 350% higher impact forces than standard lath systems.

Diamond-patterned mesh distributes load evenly across 12" joist spans.

2.Corrosion Resistance

-Zinc-aluminum alloy coating exceeds ASTM A641 requirements, ideal for coastal chemical plants.

-Interlocking edges prevent moisture penetration at sheet joints.

3.Self-Furring Efficiency

-Pre-spaced dimples eliminate manual furring strips, reducing labor costs by 30%.

-Serrated edges enhance plaster adhesion for crack-free finishes.

Applications

-High-Rise Buildings: Seismic reinforcement in hotel atriums and conference halls

-Parking Garages: Overhead protection against vehicle vibrations

-Warehouse Facilities: Impact-resistant wall systems near loading docks

-Disaster Relief: Quick-deploy structural stabilization for emergency shelters

Service Benefits

-MOQ: 250 sheets | Roll-forming available for vaulted ceilings

-Free seismic load calculator with orders over 500 sheets

CODE

Wt./Sq.Yd.(lbs)

Sheet Size

Standard Thickness

Pcs./Bundle

Pcs./Pallet

DML1.75

1.75 LBS

27” x 96”

0.35mm

10

500

DML2.5

2.5 LBS

27” x 96”

0.5mm

10

500

DML3.4

3.4 LBS

27” x 96”

0.638mm

10

250

FAQ

1. What is expanded metal lath used for?

It is mainly used as a base for stucco or plaster on walls, ceilings, and soffits. The mesh provides excellent keying for cementitious materials.

2. Does your product meet U.S. and Canadian standards?

Yes. Our expanded metal lath complies with ASTM C847 and CSA standards, and is ICC-ES(5419) certified, ensuring approval for a wide range of North American construction projects.

3. Do you offer different types and weights?

Yes. We offer various rib profiles, mesh patterns, and weights such as 1.75 lbs, 2.5 lbs, and 3.4 lbs per sheet to suit different application needs.

4. What is your MOQ and lead time?

Our minimum order is 2 pallets (total 1,000 sheets, 500 sheets per pallet). Typical lead time is 15–20 working days, depending on order volume and requirements.

5. How is the product packaged for export?

We use standard palletized packaging for safe and efficient container loading and unloading. Custom labels and weather-resistant wrapping are also available upon request.
