Specifications
Brand Name :
WSFIVIN
Model Number :
175EML
Certification :
ESR-5419 (ICC-ES)
Place of Origin :
CHINA
MOQ :
1000
Payment Terms :
T/T,L/C,D/P,D/A
Supply Ability :
10000PCS/DAY
Delivery Time :
7-15 days
Packaging Details :
10Pcs./Bundle 250/500Pcs. / Pallet
Product Name :
Corrosion-Resistant G90 Self-Furring Lath For Fireproofing Construction
Key Words :
Self-Furring Metal Lath
Thinckness :
0.638mm 0.025in
Weight :
3.4lbs
Country Of Origin :
China
Width :
27"
Length :
96"
Packing :
500Pcs/pallet
Description

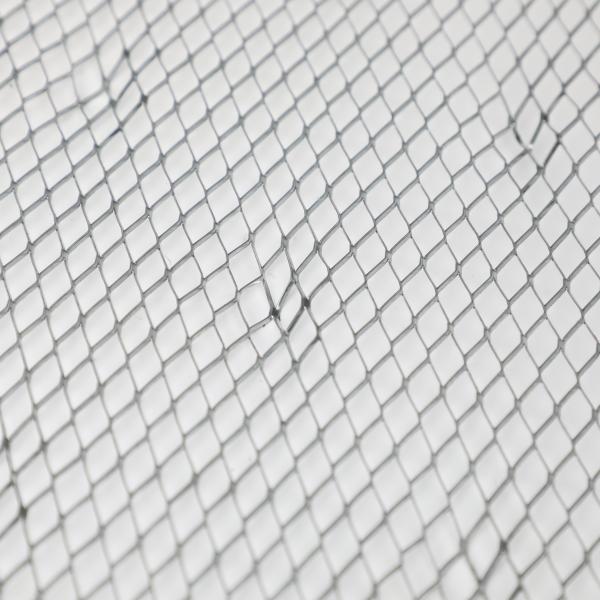

Corrosion-Resistant G90 Self-Furring Metal Lath for Fireproofing Construction

Overview

WSFIVIN’s G90 Self-Furring Lath delivers unmatched corrosion resistance and fireproofing performance for critical infrastructure projects. Featuring a 90g/m² zinc coating** and 0.019in steel thickness, this lath meets UL fire-resistance ratings while exceeding ASTM A653 specifications for heavy-duty applications.

Key Features

1.G90 Galvanized Superiority

-3x thicker zinc layer (90g/m²) vs. standard G30 lath, ensuring 50+ years of service in corrosive environments like coastal plants and chemical facilities.

-ASTM B117-certified for 5,000+ hours of salt spray resistance.

2. Fireproofing Optimization

-Integrates seamlessly with 2-hour fire-rated plaster systems(ASTM E119).

-Self-furring 5/16” dimples** enhance plaster adhesion while maintaining critical air gaps for thermal regulation.

3. High-Load Capacity

-0.019in (22GA) steel core supports 200 PSI compressive loads in industrial ceilings and tunnels.

-Diamond mesh (5/8” x 5/8”) prevents crack propagation under seismic stress.

Applications

-Nuclear Facilities: Radiation-shielded wall assemblies.

-Oil Refineries: Fireproofing structural steel in explosive atmospheres.

-Underground Parking: Moisture-resistant ceilings with Class A fire rating.

-Tunnel Linings: Corrosion protection in high-humidity transit systems.

Service Advantages

-MOQ: 250 sheets | Custom paper-backing for 1-hour/2-hour fire ratings.

-Free ASTM/UL compliance documentation for LEED® projects.

CODE

Wt./Sq.Yd.(lbs)

Sheet Size

Standard Thickness

Pcs./Bundle

Pcs./Pallet

DML1.75

1.75 LBS

27” x 96”

0.35mm

10

500

DML2.5

2.5 LBS

27” x 96”

0.5mm

10

500

DML3.4

3.4 LBS

27” x 96”

0.638mm

10

250

FAQ

1. What is expanded metal lath used for?

It is mainly used as a base for stucco or plaster on walls, ceilings, and soffits. The mesh provides excellent keying for cementitious materials.

2. Does your product meet U.S. and Canadian standards?

Yes. Our expanded metal lath complies with ASTM C847 and CSA standards, and is ICC-ES(5419) certified, ensuring approval for a wide range of North American construction projects.

3. Do you offer different types and weights?

Yes. We offer various rib profiles, mesh patterns, and weights such as 1.75 lbs, 2.5 lbs, and 3.4 lbs per sheet to suit different application needs.

4. What is your MOQ and lead time?

Our minimum order is 2 pallets (total 1,000 sheets, 500 sheets per pallet). Typical lead time is 15–20 working days, depending on order volume and requirements.

5. How is the product packaged for export?

We use standard palletized packaging for safe and efficient container loading and unloading. Custom labels and weather-resistant wrapping are also available upon request.
