Front Left Right Electric Air Spring Shock Absorber Cartridge For Land Rover Discovery 3
Front Left Right Electric Air Spring Shock Absorber Cartridge For Land Rover Discovery 3
Front Left Right Electric Air Spring Shock Absorber Cartridge For Land Rover Discovery 3
Front Left Right Electric Air Spring Shock Absorber Cartridge For Land Rover Discovery 3
Front Left Right Electric Air Spring Shock Absorber Cartridge For Land Rover Discovery 3
Front Left Right Electric Air Spring Shock Absorber Cartridge For Land Rover Discovery 3
Specifications
Brand Name :
FHD
Model Number :
Land Rover Discovery 3 LR3
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
D/A,D/P,T/T,Western Union
Supply Ability :
5000 Sets/month
Delivery Time :
3-15days
Packaging Details :
Carton
Warranty :
2 years
Position :
Front/L/R
Packing :
Carton
Condition :
New
Purpose :
Replace/ Repair
Description

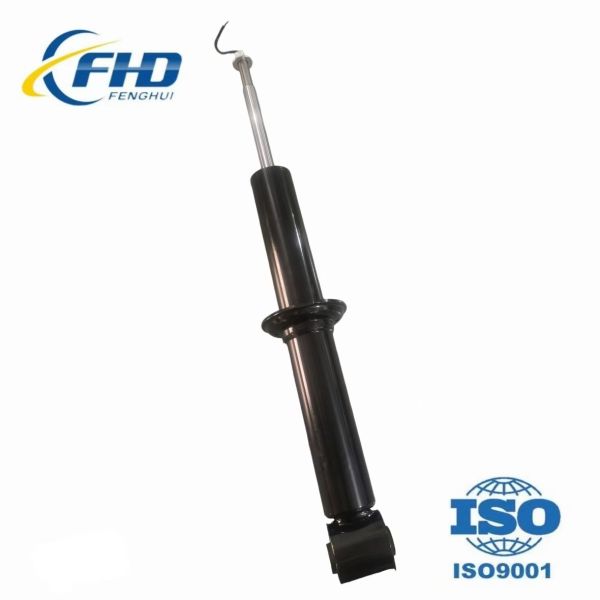

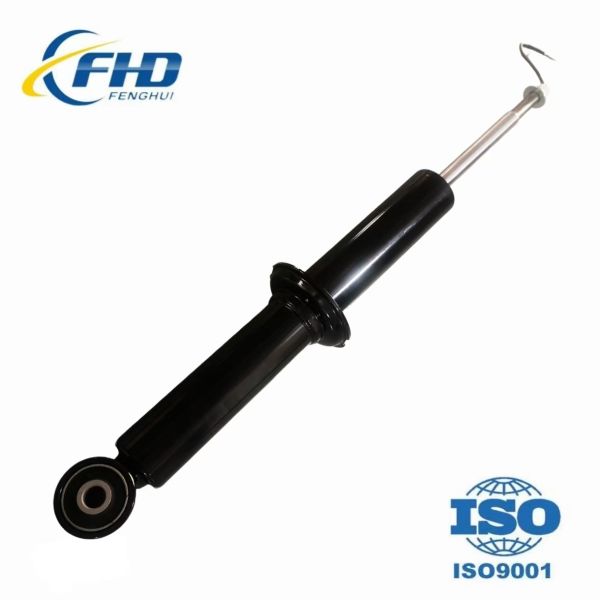

Discovery 3 Front Left Right Electric Air Shock Cartridge Damper Core Unit
Product Overview

Sturdy, reliable OE replacement air shock absorber core (strut only) for Land Rover Discovery 3 front left and front right positions. This product includes the strut only, without air spring.

Specifications
Vehicle Application Land Rover Discovery 3 (Discovery 3 / L319)
Installation Position Front Left (Vehicle Left Side, Driver's Side on LHD Vehicles) / Front Right (Vehicle Right Side, Passenger Side on LHD Vehicles)
Component Type Shock Absorber Core / Strut Only (Without Air Spring, Must Be Used with Original or New Air Spring)
Product Description

This air shock absorber core (strut) is designed for the front air suspension system of the Land Rover Discovery 3, available in two separate versions for front left and front right positions. This strut-only component is ideal for repair scenarios where the original front air spring remains fully functional but the strut damping has degraded or failed.

The front strut manages vehicle attitude control during steering and braking operations. Through an internal hydraulic valve system, it regulates suspension compression and rebound rates, absorbs vertical impacts from road surfaces transmitted through the front wheels, and suppresses "nose-dive" during braking as well as body roll during cornering. The strut works in coordination with the front air spring, upper control arms, lower control arms, and steering knuckles to form a complete front air suspension system.

Compared to rear struts, the front strut features different piston rod diameter, damping valve tuning, and mounting angle design to accommodate the greater load variations and steering demands of the front axle. Manufactured to original equipment structural dimensions, this product ensures mounting holes, body length, piston rod travel, and dust boot fitment positions all match original factory specifications for direct replacement without modifications.

Key Features
  • Independent Strut (No Air Spring): Suitable for scenarios where the front air spring is intact and only the strut is damaged, avoiding the high cost of replacing the complete assembly
  • Front vs. Rear Differentiation: The front strut is independently tooled and not interchangeable with the rear strut, ensuring correct damping characteristics
  • Universal Fitment for Left and Right: This strut fits both left and right sides
  • Reinforced Sealing: The front strut uses an upgraded oil seal to withstand greater hydraulic pressure冲击 from the front axle
  • Factory Tested: Each unit undergoes individual damping force curve testing and air tightness verification
Warehouse & Workshop

Keep dry, clean and handle with care.

Front Left Right Electric Air Spring Shock Absorber Cartridge For Land Rover Discovery 3
Packing & Delivery

Professional, environmentally friendly, and efficient packaging services ensure the safety of your goods during transit.

Front Left Right Electric Air Spring Shock Absorber Cartridge For Land Rover Discovery 3
Frequently Asked Questions
Q1: After replacing the front strut, the front end feels bumpier than before. Is this normal?
Yes, this is normal. Over long-term use, the damping oil inside the old strut ages and becomes thinner, and the valve plates wear down, resulting in significantly reduced damping force. The driver has become accustomed to the softer suspension response. After the new strut restores the original factory damping level, the road feel becomes more pronounced and small bumps are more noticeable, which is a normal phenomenon. Typically, after driving 400-600 km, the strut will gradually break in to a stable condition. If the discomfort persists beyond 1,000 km, check whether the installation is correct or whether the correct model was matched.
Q2: There is a "creaking" noise from the front axle while driving after strut installation. What is the cause?
This type of noise is usually not a problem with the strut itself, but rather an installation-related issue. Common causes include: 1) The top nut of the strut is not tightened to the specified torque, causing loosening at the connection between the strut and the vehicle body; 2) The dust boot or bump stop is misaligned and rubbing against the strut body; 3) The lower control arm or stabilizer bar mounting bolts are not fully tightened. It is recommended to first check the torque of all bolts, remove the front wheel and observe whether the dust boot is correctly positioned. Only after ruling out installation issues should you determine whether the strut itself has any abnormalities.
Q3: Are the Discovery 3 front struts and rear struts interchangeable?
Absolutely not. The front and rear struts have fundamental differences in piston rod diameter, body length, mounting hole spacing, damping valve tuning, and bump stop travel. The front strut must withstand greater braking and steering loads and is designed with higher strength; the rear strut is biased toward load carrying and comfort. Forcibly installing a rear strut on the front axle will result in insufficient support, severe nose-dive during braking, and even safety hazards. Please be sure to purchase accurately according to front/rear and left/right positions.
Q4: Are the left and right front struts for the Discovery 3 interchangeable?
Yes, they are interchangeable. The left and right front struts are identical in specifications and are the same part. There is no difference between the two sides.
Q5: How can I tell whether the front strut is faulty or the front air spring is leaking?
The symptoms of the two failures are quite different. Air spring leakage typically presents as: the front axle noticeably sinks after the vehicle is parked, the air compressor runs longer upon starting, and sometimes a hissing noise can be heard. Strut failure presents as: the vehicle height remains normal after parking, but while driving there is excessive bouncing when the front wheels go over bumps, increased steering wheel vibration, and greater nose-dive during braking. A simple diagnostic method: press down on the front of the vehicle by hand after parking. If the body shakes up and down more than twice after releasing before stopping, the strut damping has significantly degraded.
Q6: Is it acceptable to replace only the front strut and keep the old air spring?
Yes, but it is recommended to first confirm that the original front air spring is in good condition, i.e., the rubber shows no cracking, bulging, or significant hardening. If the air spring has been in use for more than 5 years or has exceeded 120,000 km, even if it is not currently leaking, the rubber elasticity may have already degraded, which will affect the overall consistency of the suspension. The combination of new and old components will not cause a fault, but the driving feel may be stiffer or rebound faster, requiring some adjustment time.
