Custom BMW X5 Rear Right Performance Shock Absorbers Cartridge Core Replacement
Custom BMW X5 Rear Right Performance Shock Absorbers Cartridge Core Replacement
Custom BMW X5 Rear Right Performance Shock Absorbers Cartridge Core Replacement
Custom BMW X5 Rear Right Performance Shock Absorbers Cartridge Core Replacement
Specifications
Brand Name :
FHD
Model Number :
BMW G38
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
D/A,D/P,T/T,Western Union
Supply Ability :
5000 Sets/month
Delivery Time :
3-15days
Packaging Details :
Carton
Warranty :
2 years
Position :
Rear/R
Packing :
Carton
Condition :
New
Purpose :
Replace/ Repair
Description

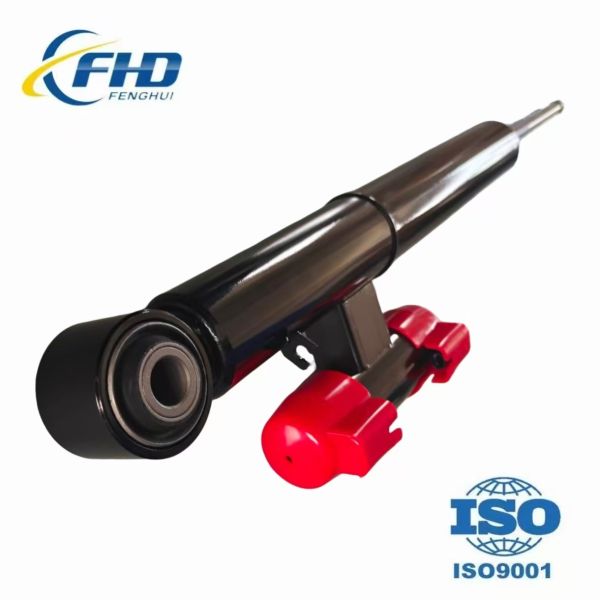

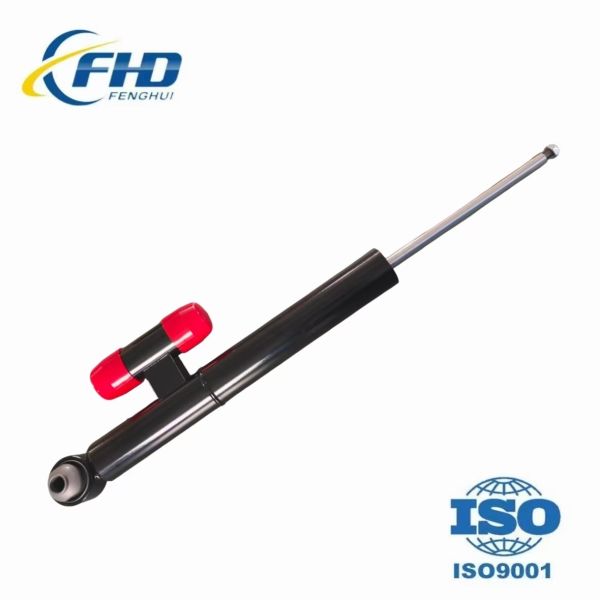

G38 BMW 5 Series Rear Right Air Shock Cartridge Core Unit New Replacement
Product Overview

Sturdy load-bearing, OE specification air shock absorber core (strut only) for BMW G38 rear right position. This product includes the strut only, without air spring.

Specifications
Vehicle Application BMW 5 Series Long Wheelbase (G38, 2017-2023)
Installation Position Rear Right (Vehicle Right Side, Passenger Side Rear on LHD Vehicles)
Component Type Shock Absorber Core / Strut Only (Without Air Spring)
Product Description

This air shock absorber core (strut) is designed for the rear air suspension system of the BMW G38 chassis, specifically for the rear right (passenger side rear) position. This product is a strut-only component and does not include an air spring. It is suitable for repair scenarios where the original rear air spring is still fully functional but the strut damping has degraded or failed.

As the long wheelbase version of the BMW 5 Series, the G38 chassis extends the wheelbase based on the standard G30, requiring the rear axle to accommodate greater load variations from the increased rear seat space. The rear strut primarily handles load-bearing and stabilization tasks, focusing on suppressing rear-end squat during acceleration, filtering road impacts, and maintaining vehicle level under load conditions.

The G38 rear right strut features damping optimization specifically matched to the load characteristics of the long wheelbase rear right axle. It is manufactured to original equipment structural dimensions, with all mounting points and specifications consistent with factory standards, allowing direct replacement without modifications.

Key Features
  • Independent Strut (No Air Spring): Designed for scenarios where the air spring is intact and only the strut has failed
  • Position Specific: Designed specifically for the rear right position; left and right damping characteristics differ
  • Long Wheelbase Adapted: Damping matched to the increased load on the G38 long wheelbase rear axle
  • Load Optimized: Valve tuning calibrated for rear axle load demands
  • Comfort Oriented: Damping settings maintain premium rear-seat ride quality
  • Factory Verified: Each unit undergoes damping force curve matching testing and air tightness verification
Important Note

⚠️ This product is suitable for the BMW G38 chassis 5 Series Long Wheelbase (2017-2023), including 525Li, 530Li, 540Li and other versions. The G38 and standard wheelbase G30 rear struts are partially compatible, but it is recommended to confirm based on the OE part number. Differences may exist between different model years and configurations. Please verify the original OE part number or VIN code before purchasing.

Warehouse & Workshop

Keep dry, clean and handle with care.

Custom BMW X5 Rear Right Performance Shock Absorbers Cartridge Core Replacement
Packing & Delivery

Professional, environmentally friendly, and efficient packaging services ensure the safety of your goods during transit.

Custom BMW X5 Rear Right Performance Shock Absorbers Cartridge Core Replacement
Frequently Asked Questions
Q1: How can I tell whether the BMW G38 rear right strut is already damaged?
Common signs of damage include: a dull "thumping" noise when the right rear wheel goes over speed bumps, the right rear body side being noticeably lower than the left, noticeable rear-end squat to the lower right side during acceleration, and stronger bumpiness on the right rear side than the left. A simple self-check method: after stopping the vehicle, press down firmly on the right rear fender and release quickly. If the body bounces up and down more than twice before stopping, the damping on the right side has significantly degraded.
Q2: Are the G38 rear right and rear left struts interchangeable?
No, they are not interchangeable. Although similar in appearance, the left and right rear struts on the G38 differ in internal damping valve calibration to accommodate left-right load differences. Forcibly swapping them will result in different rebound rhythms on both sides of the rear axle when going over speed bumps, affecting driving stability.
Q3: After replacing the rear right strut, is it necessary to also replace the rear left strut?
Replacing in pairs is not mandatory; the right side can be replaced alone. However, if the left side strut has been in service for a long time (over 70,000 km or 5+ years), it is recommended to replace both sides as a pair. Otherwise, you may experience inconsistent rear-end rebound when going over speed bumps and increased rear-seat rocking.
Q4: After replacing the strut, the instrument panel shows a "Chassis Function Restricted" warning, but the vehicle drives normally. What is the cause?
This situation is usually not a problem with the strut itself, but rather the air suspension system has not been reset after installation. After replacing rear suspension components, a diagnostic tool is required to perform "height calibration" and "component matching" on the air suspension system. It is recommended to connect a diagnostic tool after installation, clear the fault codes, and perform rear axle height initialization.
Q5: What accessories are recommended to replace at the same time as the rear right strut?
It is recommended to replace the following accessories simultaneously: the rear strut dust boot, the upper bump stop, and the top nut securing the piston rod. In addition, check the right rear stabilizer bar link ball joint for looseness and check the rear axle height sensor link for integrity.
Q6: After replacing the strut, the rear right suspension feels stiffer or bumpier than before. Is this normal?
Yes, this is normal. Over long-term use, the damping oil inside the old strut gradually degrades and damping force decreases. After the new strut restores the original factory damping level, rear seat passengers may feel more fine vibrations. Typically, after driving 300-500 km, the strut will gradually break in to a stable condition.
Q7: There is a "creaking" or "squeaking" noise from the right rear wheel area while driving after strut replacement. What is the cause?
This type of noise requires careful diagnosis. Common causes include: the top nut of the strut is not tightened to the specified torque, the dust boot is not installed properly, the right rear stabilizer bar link ball joint is aged, or wiring harness is pinched during installation. It is recommended to remove the right rear wheel and check all installation positions.
Q8: Is a wheel alignment (chassis angle calibration) necessary after replacing the G38 rear right strut?
Rear axle alignment is recommended. The G38 chassis rear suspension is a multi-link design. Removing the strut involves disconnecting the lower control arm from the subframe, which may affect rear wheel toe and camber after installation. It is recommended to drive 30-50 km after replacement to allow the suspension to settle naturally before performing a rear wheel alignment.
Q9: Are the G38 rear strut and front strut interchangeable?
Absolutely not. The rear and front struts have fundamental differences in body length, piston rod diameter, mounting method, and damping valve tuning. Forcing interchangeability will result in chassis dynamic imbalance and seriously affect driving stability and comfort.
Q10: Is the G38 rear right strut suitable for the later generation G68 long wheelbase 5 Series?
No, it is not suitable. The G68 is the next-generation long wheelbase 5 Series launched in 2024, with a completely different chassis structure, suspension geometry, and strut mounting dimensions. Parts are not interchangeable with the G38.
