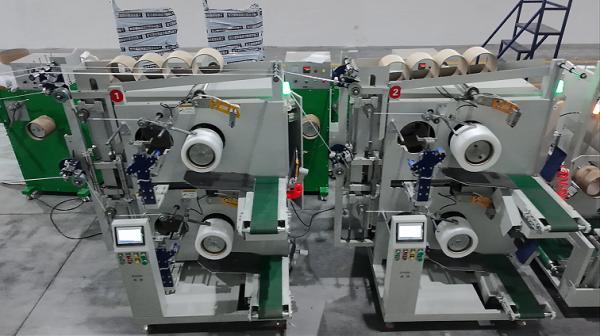

High-stability Production With Dual-cooling Tanks PP Strapping Production Machine
High-stability Production With Dual-cooling Tanks PP Strapping Production Machine
Specifications
Brand Name :
CHUQI
Model Number :
CQ-SPP75-4
Place of Origin :
CHINA
MOQ :
1SET
Payment Terms :
T/T
Supply Ability :
100SETS
Delivery Time :
60DAYS
Packaging Details :
WOODEN BOX
Cooling Configuration :
Primary and Secondary dual-stage tank cooling system
Temperature Control Precision :
Secondary cooling water temperature adjustable 10-25°C with digital display
Anti-Tangle Design :
Internal guide rollers and alignment devices eliminate product entanglement
Protective Craftsmanship :
Polyurethane-covered guide rollers prevent product scratches
Sizing Effect :
Dual-stage cooling ensures dimensional stability and high rigidity
Parallel Production :
Ensures uniform, synchronized cooling and haul-off for all four strands
Description
High-Stability Production with Dual-Cooling Tanks & Guided Strand Alignment
Product Introduction

Stability is fundamental to high-speed production of premium quality PP strapping. This production line features an advanced dual-stage cooling system comprising a primary cooling tank and secondary sizing tank. The primary tank performs initial quenching and shaping, while the secondary tank delivers precise low-temperature cooling following stretching and oven heat treatment. This dual-stage process guarantees permanent dimensional stability, minimal internal stress, and superior product rigidity.

Both tanks incorporate polyurethane-covered guide rollers and precision alignment devices that maintain parallel advancement of all four strands. This innovative design eliminates product entanglement and deviation during high-speed operations, creating optimal conditions for subsequent embossing and winding processes.

Main Specifications
  • Cooling Configuration: Primary cooling tank + Secondary sizing tank
  • Temperature Control: Secondary tank water temperature adjustable from 10-25°C with digital display
  • Guidance Structure: Both tanks include guide rollers and anti-entanglement alignment devices
  • Material & Craftsmanship: Tank bodies constructed from 304 stainless steel with polyurethane-covered guide rollers
  • Synchronization Assurance: Ensures parallel and uniform cooling of all four strands
Technical Parameters
Item Parameter / Description
Primary Tank Dimensions 3.0m (L) * 0.6m (W)
Secondary Tank Dimensions 5.5m (L) * 1.0m (W)
Tank Body Material 304 Stainless Steel (plate thickness 2.5mm / 2.0mm)
Secondary Tank Water Temp. Range 10 - 25°C Adjustable
Alignment Devices Internal guide rollers (polyurethane-covered) and parallel aligners
Water Pump High-pressure circulating pump for uniform flow
Frequently Asked Questions
Won't dual-tank cooling consume a lot of water?
Both tanks utilize a closed-loop circulating water cooling system equipped with pumps and water reservoirs. Only minimal water addition is required to compensate for evaporation and losses. The total circulating water volume is approximately 5 tons/hour, ensuring effective cooling while maintaining manageable water consumption levels.
Is the polyurethane covering on the guide rollers durable? Could it peel off and contaminate the product?
We select premium quality polyurethane known for exceptional wear and tear resistance. Applied using a mature covering process that ensures strong adhesion, this material offers extended service life under normal operating conditions. The polyurethane will not peel off, and its soft surface effectively protects products from scratches and damage.
How is the consistency in width and thickness of the four straps ensured after cooling?
Consistency begins with our high-precision 4-strand extrusion die head (tolerance ≤ ±0.05mm). The uniform water flow and parallel alignment devices within the dual tanks ensure each strand travels under identical cooling conditions, preventing dimensional variations caused by uneven cooling or mutual interference between strands.
