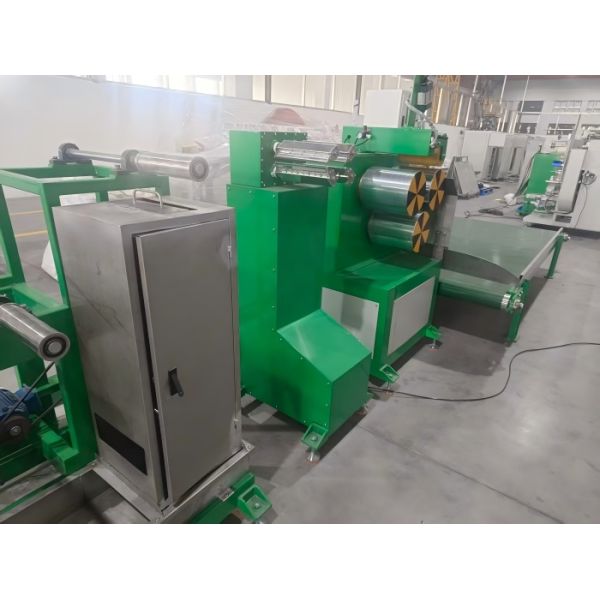

Durable PP Strap Band Extrusion Line Stainless Steel Tanks Hardened Alloy Steel Screw
Durable PP Strap Band Extrusion Line Stainless Steel Tanks Hardened Alloy Steel Screw
Specifications
Brand Name :
CHUQI
Place of Origin :
CHINA
MOQ :
1SET
Payment Terms :
T/T
Supply Ability :
100SETS
Delivery Time :
60DAYS
Packaging Details :
WOODEN BOX
Model Number :
CQ-SPP75-4
Screw Material :
38CrMoAlA Alloy Steel
Screw Treatment :
Nitrided
Screw Hardness :
≥HV1000
Water Tank Material :
304 Stainless Steel
Roller Surface :
Chrome Plated
Design Philosophy :
Long Service Life
Maintenance Cost :
Low
Roller Hardness :
HRC60
Substrate :
Alloy steel
Design Purpose :
High-Efficiency Synchronized Production
Description
Durable Design: Stainless Steel Tanks & Hardened Alloy Steel Screw
Product Introduction

Engineered for exceptional durability and longevity, this production line features core components manufactured from premium industrial materials to ensure long-term stable operation with minimal maintenance requirements. All water tanks (primary cooling, secondary setting) are constructed from corrosion-resistant 304 stainless steel, while the extruder's core screw and barrel utilize 38CrMoAlA alloy steel treated with nitriding for superior surface hardness and outstanding wear resistance. This robust material selection ensures reliable performance in demanding production environments, delivering a service life that significantly exceeds industry standards.

Main Specifications
  • Core Materials: Screw/Barrel – 38CrMoAlA alloy steel, nitrided
  • Structural Materials: Water Tanks – 304 stainless steel
  • Surface Treatment: Screw hardness ≥HV1000, chrome-plated rollers
  • Key Advantages: Superior wear resistance, corrosion resistance, extended lifespan, low maintenance
Technical Parameters
Item Parameter/Material
Screw Material & Treatment 38CrMoAlA Alloy Steel, Fully Nitrided
Screw Surface Hardness ≥ HV1000
Barrel Material 38CrMoAlA Alloy Steel, Inner Bore Precision Ground
Water Tank Material (Primary/Secondary) 304 Stainless Steel (Plate Thickness 2.5mm/2.0mm)
Haul-Off Roller Surface Treatment Chrome Plated, Hardness ≥HRC58
Die Head Die Steel High-Quality Die Steel
Frequently Asked Questions
What are the advantages of using stainless steel water tanks compared to ordinary painted steel plate tanks?
The primary advantage is exceptional corrosion resistance. During PP production, cooling water is used continuously. Ordinary steel is prone to rust, and rust particles can contaminate products and clog pipelines. 304 stainless steel eliminates corrosion issues entirely, is easy to clean, ensures product cleanliness and long-term cooling system functionality, and is ideal for production environments with stringent hygiene requirements.
How much does nitriding treatment extend the screw's service life?
Nitriding creates an extremely hard nitride layer on the screw surface, significantly enhancing wear and corrosion resistance. Under normal use with PP materials (without excessive filler or regrind), a nitrided screw's lifespan can be extended by 50% to over 100% compared to standard carburized screws, substantially reducing the frequency and cost of replacing this critical component.
Does this durable design mean the equipment price is much higher?
While the initial investment may be slightly higher than equipment using standard materials, from a Total Cost of Ownership (TCO) perspective, it is more economical. Longer component life means less downtime for replacements, reduced spare part consumption, and lower maintenance costs. Considering the gains in production efficiency and operational stability, this represents a highly valuable investment.
