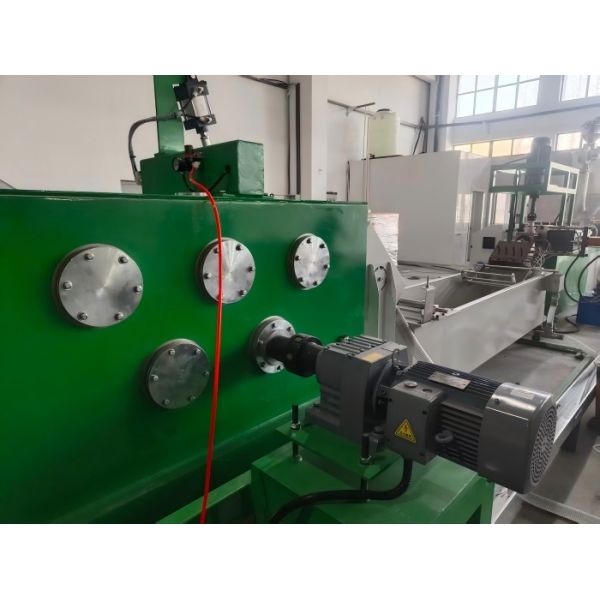

Quick Change Die System PP Strapping Band Making Machine For Flexible PP Production Setups
Quick Change Die System PP Strapping Band Making Machine For Flexible PP Production Setups
Specifications
Brand Name :
CHUQI
Place of Origin :
CHINA
MOQ :
1SET
Payment Terms :
T/T
Supply Ability :
100SETS
Delivery Time :
60DAYS
Packaging Details :
WOODEN BOX
Model Number :
CQ-SPP75-4
Connection Design :
Quick-Release Flange
Changeover Speed :
Fast
Standard Dies :
1 Set
Expandability :
Supports 2 Custom Die Sets
Operation Difficulty :
Low
Design Purpose :
Production Flexibility
Description
Quick-Change Die System for Flexible PP Production Setups
Product Overview

Designed to meet market demands for multiple product varieties and small batch sizes, our quick-change die system features an innovative quick-release flange connection design. This advanced system enables exceptionally simple and fast die disassembly and installation without complex tools or lengthy alignment processes. Combined with customizable multiple die sets, you can complete product specification changes within hours, significantly reducing downtime while enhancing production line flexibility and equipment utilization.

Key Specifications
  • Connection Method: Quick-release flange connection
  • Standard Configuration: 1 set of basic die (1-out-4)
  • Expansion Capability: Can be equipped with up to 2 additional custom die sets
  • Key Advantages: Short die-change time, simple operation, supports multi-specification production
Technical Parameters
Item Parameter
Die Head Connection Method Quick-Release Flange
Standard Die Qty & Type 1 set (1-out-4 Basic Type)
Maximum Supported Custom Dies 2 sets (Customized to customer specifications)
Typical Die Change Time (Skilled) 1-2 hours (mechanical part)
Die Material High-Quality Die Steel, Precision Machined
Frequently Asked Questions
How does the "quick-release flange" operate specifically? Does it really not require a professional fitter?
The system employs flanges with hinges or quick-clamping mechanisms along with alignment pins. During operation, loosening just a few special bolts or levers allows the entire die module to be separated from or joined to the main die head, eliminating the cumbersome steps of aligning holes and threading numerous bolts required by traditional flanges. Our comprehensive training enables your operators to master die-changing skills without relying on professional fitters.
Will frequent die changes affect the die head's precision or cause material leakage?
No. The quick-release design incorporates high-precision alignment and sealing mechanisms. Alignment pins ensure high repeatability of the installation position each time, while dedicated high-temperature seals or plane sealing designs effectively prevent leakage. When procedures are followed and seals are properly maintained, precision and sealing reliability are preserved over long-term use.
What is the cost and lead time for custom dies? How do you guarantee the quality of custom dies?
Cost and lead time for custom dies depend on specification complexity. Typically, delivery takes 4-8 weeks from receiving final confirmed drawings. We guarantee quality through: 1) Using premium steel matching standard die grades; 2) Employing precision CNC machining and EDM (Electrical Discharge Machining); 3) Conducting trial runs and dimensional inspections before shipment to ensure compliance with your samples or drawings.
