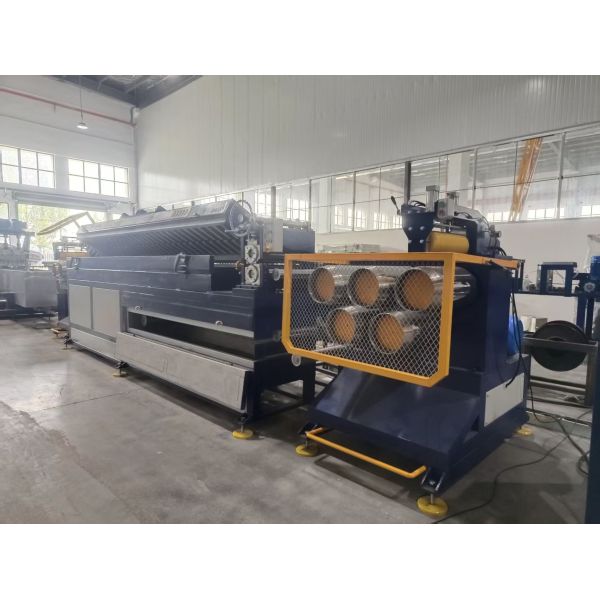

Honeycomb Inlet Adjustable Level PP Band Extrusion Line
Honeycomb Inlet Adjustable Level PP Band Extrusion Line
Specifications
Brand Name :
CHUQI
Model Number :
CQ-SPP120-6
Place of Origin :
CHINA
MOQ :
1SET
Price :
USD/RMB
Payment Terms :
T/T
Supply Ability :
10SETS
Delivery Time :
60DAYS
Packaging Details :
WOODEN BOX
Water inlet type :
Honeycomb
Flow regime :
Laminar
Tank length :
3.5m
Material :
304 Stainless Steel
Applicable strands :
6
Cooling uniformity :
High
Description
Honeycomb Inlet Adjustable Level PP Band Extrusion Line
Product Overview

The water inlet method and water level control of the first cooling tank directly affect cooling uniformity and operational stability of the tape. The first cooling tank of this production line uses a honeycomb water inlet device, providing smooth, uniform laminar flow into the tank, avoiding turbulence and bubbles generated by conventional inlets.

Additionally, the tank has an adjustable water level, allowing operators to flexibly adjust cooling depth according to tape width, thickness, and production speed for optimal cooling and minimal water splashing. The combination of honeycomb inlet and adjustable level ensures uniform cooling for PP strapping.

Technical Specifications
Parameter Value/Description
Water inlet type Honeycomb device
Flow characteristic Laminar, no turbulence
Water level adjustment Adjustable
Tank length 3.5 m
Tank material 304 Stainless Steel
Applicable strands 6
Key Features
  • Honeycomb inlet: Disperses flow into fine streams, filling tank uniformly
  • Laminar flow: Avoids turbulent impact on tape, reducing surface damage
  • No bubbles: Prevents air bubbles from causing uneven cooling
  • Adjustable water level: Sets depth according to tape thickness for optimal cooling time
  • Reduced splashing: Proper level keeps water in tank, cleaner environment
  • Improved cooling efficiency: Uniform flow quickly removes heat
  • Prevents tape floating: Correct level submerges tape without letting it float
  • Adapts to various specs: From 5mm narrow to 19mm wide
  • Easy operation: Intuitive level adjustment mechanism
  • Durable design: 304 stainless steel, honeycomb structure resists clogging
Frequently Asked Questions
What are the advantages of a honeycomb inlet over a standard inlet?
A standard inlet produces concentrated flow, easily creating turbulence and bubbles that impact the tape surface. The honeycomb inlet disperses flow into many fine streams, creating laminar flow that is smooth and uniform, providing better cooling without damaging the tape surface.
How is the water level adjusted? What is the adjustment range?
Through an overflow plate or level adjustment valve on the tank side. The level can be adjusted from just submerging the tape to full submersion, typically ranging from 50-200mm depending on tape thickness.
Will a higher water level cause the tape to float?
Tape density is slightly lower than water; excessive depth may cause floating. It is recommended to keep the level just covering the top surface of the tape, and use sizing tracks to hold the tape down, preventing floating.
