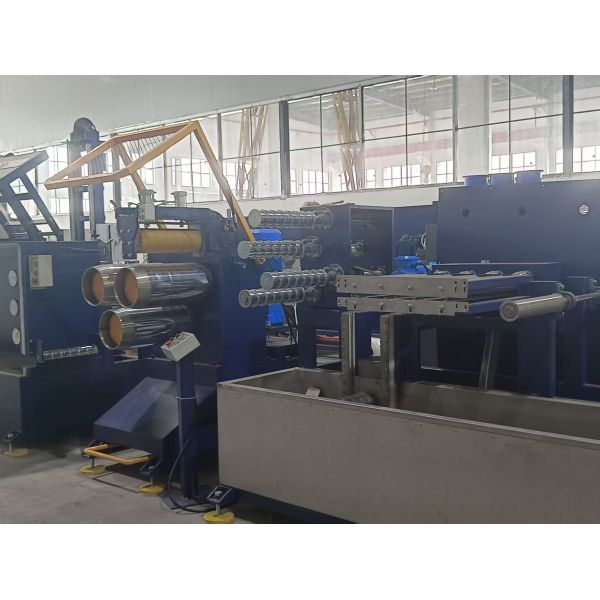

First Tank Movable & Dual Cooling – PP Strapping Extrusion
First Tank Movable & Dual Cooling – PP Strapping Extrusion
Specifications
Brand Name :
CHUQI
Model Number :
CQ-SPP120-6
Place of Origin :
CHINA
MOQ :
1SET
Price :
USD/RMB
Payment Terms :
T/T
Supply Ability :
10SETS
Delivery Time :
60DAYS
Packaging Details :
WOODEN BOX
First tank length :
3.5m
Second tank length :
5.5m
First tank mobility :
Forward/back & up/down
Water inlet type :
Honeycomb
Sizing tracks :
Multiple sets
Material :
304 Stainless Steel
Second tank temp. range :
10-25°C
Cooling method :
Two-stage staged
Description
First Tank Movable & Dual Cooling – PP Strapping Extrusion
Product Overview

This production line features a dual-stage cooling system consisting of a first cooling water tank and a secondary cooling water tank. The first cooling tank is 3.5m long and can be moved forward/backward and up/down for precise alignment with the die outlet. It contains multiple sets of sizing tracks to keep the 6 strands parallel during cooling. The tank uses a honeycomb water inlet for uniform, smooth flow and an adjustable water level to suit different tape specifications. The secondary cooling tank is 5.5m long with adjustable water temperature from 10-25°C for low-temperature precision cooling. The dual-tank design enables staged cooling ("rapid setting + low-temperature precision cooling"), effectively controlling crystallinity, reducing internal stress, and improving product dimensional stability.

Technical Specifications
Parameter First Cooling Tank Secondary Cooling Tank
Length 3.5 m 5.5 m
Material 304 Stainless Steel 304 Stainless Steel
Plate Thickness 2.0 mm 2.0 mm
Mobility Adjustable forward/back & up/down Fixed
Water Inlet Honeycomb Standard
Water Level Adjustment Adjustable Not adjustable (separate control)
Sizing Tracks Multiple sets None
Water Temp. Adjustment Depends on inlet 10-25°C adjustable
Lifting Motor 0.55 KW --
Key Features
  • First tank fully movable: Forward/back and up/down for easy die alignment
  • Honeycomb water inlet: Smooth, laminar flow avoids turbulence and bubble impact
  • Adjustable water level: Optimizes cooling depth for different tape sizes
  • Multiple sizing tracks: Prevents interference or tangling among 6 strands
  • 304 stainless steel: Corrosion-resistant, easy to clean, rust-free
  • Dual-stage cooling: First tank for rapid setting, second for low-temperature precision
  • Secondary tank temperature adjustable: 10-25°C for different materials and products
  • Lifting motor: Smooth, effortless height adjustment
  • Reduced internal stress: Staged cooling lowers product stress, improving toughness
  • Dimensional stability: Uniform cooling ensures consistent width/thickness
Technical Questions & Answers
What is the specific benefit of the first tank being fully movable?
It allows precise alignment with the die outlet. When changing width or thickness specifications, fine-tuning the tank position ensures the tape enters the cooling water smoothly, preventing wandering, edge friction, scratches, and breakage.
What is the advantage of the honeycomb water inlet over a standard inlet?
The honeycomb inlet provides uniform laminar flow, avoiding turbulence and bubbles, reducing surface impact on the tape, and removing heat more efficiently.
How is the 10-25 °C temperature adjustment achieved in the secondary tank?
By connecting an external chiller or cooling tower, with a temperature sensor and automatic valve controlling the chilled water mix. The line provides the control interface; the customer supplies the refrigeration equipment.
