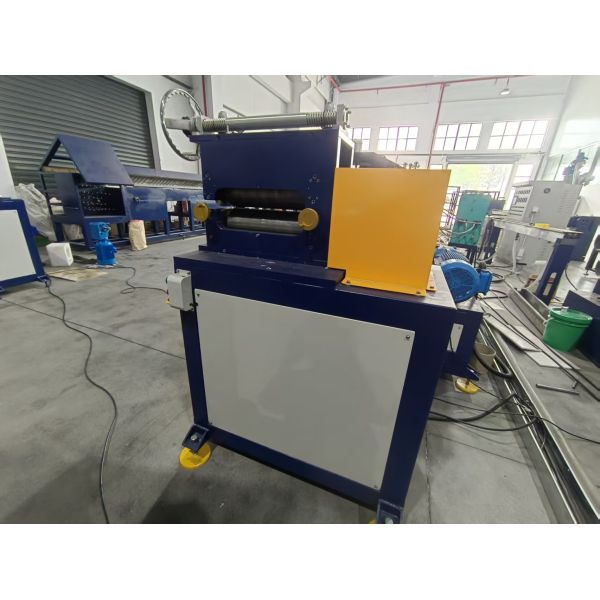

1-out-6 PP Strapping Line
1-out-6 PP Strapping Line
Specifications
Brand Name :
CHUQI
Model Number :
CQ-SPP120-6
Place of Origin :
CHINA
MOQ :
1SET
Price :
USD/RMB
Payment Terms :
T/T
Supply Ability :
10SETS
Delivery Time :
60DAYS
Packaging Details :
WOODEN BOX
Synchronized quantity :
6 strands
Switchable mode :
4 wide strands
Width range :
13.5-19mm (4 strands)
Tolerance :
≤±0.05mm
Distribution method :
Flow-diverging die
Auxiliary equipment :
2 metering pumps
Production advantage :
Large volume, identical specs
Description
1-out-6 PP Strapping Line
Product Overview

This production line utilizes a specialized 1-out-6 flow-diverging die to synchronously extrude 6 PP strapping strands. The die flow channels are optimized using fluid dynamics principles to ensure uniform melt distribution across all 6 independent outlets. Synchronized production not only significantly increases output per unit time but also guarantees identical process conditions for all strands, resulting in highly uniform product batches. This system represents the ideal solution for customers requiring large volumes of same-specification strapping. Additionally, the line supports switching to 4-wide-strand mode (13.5-19mm) by changing the die, providing flexible response to varying order requirements.

Technical Specifications
Parameter Value
Synchronized strands 6 strands (standard mode)
Switchable mode 4 strands (wide mode, 13.5-19mm)
Die type 1-out-6 flow-diverging
Number of metering pumps 2 units (50cc)
Strand width range 5 - 13.5 mm (6 strands)
Width tolerance ≤ ±0.05 mm
Key Features & Benefits
  • High efficiency: 6 straps per extrusion, multiplying productivity
  • Mode switching: Change die to produce 4 wide straps flexibly
  • Uniform distribution: Optimized flow channels ensure consistent melt pressure and temperature
  • Space saving: Much smaller footprint than 6 single-strand lines
  • Centralized control: All 6 strands synchronized for easy operation
  • Consistent quality: All strands produced under identical conditions - zero batch variation
  • Labor saving: One operator manages 6 lines, drastically reducing headcount
  • Energy efficient: Shared heating, cooling, and drive systems lower unit energy consumption
  • Modular expansion: Future addition of winding units or inspection devices possible
  • Cost-effective investment: One machine equals multiple single-strand lines in output
Frequently Asked Questions
Q: Can I still produce 6 strands if I need 19mm wide strapping?
A: According to the specification, the standard die covers 5-13.5mm for 6 strands. For 13.5-19mm wide strapping, you need to switch to 4-strand mode (optional die) to ensure uniform melt distribution and dimensional accuracy.
Q: If one strand breaks, will it affect the other 5?
A: The equipment has independent guiding and detection devices. A single strand break will not force a full line stop; the other 5 strands can continue production, minimizing losses.
Q: How is dimensional consistency maintained across 6 strands?
A: With a high-precision 1-out-6 die, 2 metering pumps for stable flow, and closed-loop speed/temperature control, the width/thickness tolerance is stably maintained within ≤±0.05mm.
