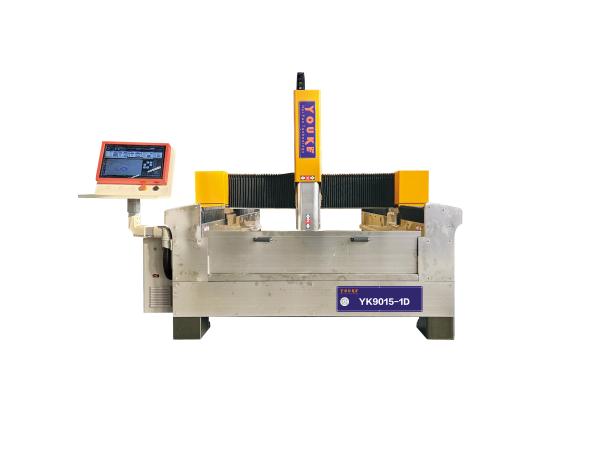

Single Head Stone Carving CNC Machine For Granite Engraving ODM
Single Head Stone Carving CNC Machine For Granite Engraving ODM
Single Head Stone Carving CNC Machine For Granite Engraving ODM
Single Head Stone Carving CNC Machine For Granite Engraving ODM
Specifications
Model Number :
HM1325-1D
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Packaging Details :
width 2200 x length 5200 x height 2350mm
Delivery Time :
15 work days
Payment Terms :
L/C,D/A
Platformdimensions :
1300×2500mm
Workpiece size :
1300×2500
Feed height :
≤400mm/700mm
Blank speed :
25m/min
Processing speed :
1-15m/min
spindle power :
5.5KW water-cooled spindle
Motor :
1108S/2208 ACservo motor
OperatingVotage :
AC380V/50Hz
File format :
G-code/HPGL
Control System :
WEIHONG Nc60A
Machine dimension :
2250x3400x2100mm
Weight :
1900KG
Description

Introduction


Single-head engraving machine is a kind of CNC engraving equipment with a single spindle or tool head, which is widely used in woodworking, metal processing, plastic processing, stone engraving and other fields. Compared with multi-head engraving machines, single-head engraving machines are usually used for smaller batches or personalized customized processing tasks.



Functional Characteristic


★ The equipment system is specially designed for the stone carving industry,Optional leveling function,to ensure high quality,high efficiency,high precision; Mainly used for granite,marble,quartz stone,coppeplate,aluminum plate and other flat engraving and hollow cutting;Stone industry is the first choice of special-shaped carving processing plant;

★ Equipment driven by servo motor-758/1108s,fast speed,high precision,good stability;The whole machine X,Y,Z transmission adopts 30 import straight square rail,bearing capacity,stable operation,high machining precision;

★ The whole machine adopts thickened steel pipe welding,strong rigidity is not easy to deformation,Stainless steel surrounded the fuselage and table,the overall service life of the equipment is longer.


Various parameters

Product name Single head engraving machine HM1325-1D
Platformdimensions 1300×2500mm
Workpiece size 1300×2500
Feed height ≤400mm/700mm
Blank speed 25m/min
Processing speed 1-15m/min
spindle power 5.5KW water-cooled spindle
Motor 1108S/2208 ACservo motor
OperatingVotage AC380V/50Hz
File format G-code/HPGL
Control System WEIHONG Nc60A
Machine dimension 2250x3400x2100mm
Weight 1900KG
