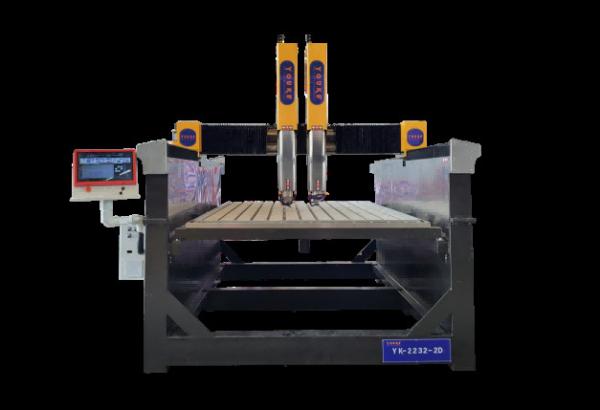

Customized Precision Stone Carving Machine For Engraving 3300kg
Customized Precision Stone Carving Machine For Engraving 3300kg
Specifications
Model Number :
DW2232-2D-1500
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Packaging Details :
width 2200 x length 5200 x height 2350mm
Delivery Time :
15 work days
Payment Terms :
L/C,D/A
Platform dimensions :
2000x3000mm
Workpiece size :
1000x3000x2
Feed height :
≤400mm≤600mm-1500mm
Blank speed :
25m/min
Processing speed :
1-15m/min
spindle power :
5.5KW water-cooled spindle
Motor :
1108S/1.5Kw ACserver motor
OperatingVoltage :
AC380V/50Hz
File format :
G-code/HPGL
Control System :
WEIHONG Nc60A
Machine dimension :
3200×4200×3500mm
Weight :
3300kg
Elevated special design :
optional
Description

Introduction

The use of stone engraving machine not only improves the efficiency and accuracy of stone processing, but also can achieve the complex effect that is difficult to achieve by traditional hand engraving, which greatly expands the scope of application and artistic expression of stone processing.


Functional Characteristic

★ This equipment is non-standard customized for stone carving industry,the processing height increases to 1500mm,there are two types of platform separation and double platform,effectively solve the high square column,non-standard shaped and other engraving problems,it is the first choice for large stone sculpting plants.;

★ Equipment driven by servo motor-1108s/1.5kw,fast speed,high precision,good stability;

★ The whole machine X,Y,Z transmission adopts 30 import straight square rail,bearing capacity,stable operation,high machining precision;

★ The whole machine adopts thickened steel pipe welding,strong rigidity is not easy to deformation,Stainless steel surrounded the fuselage and table,the overall service life of the equipment is longer,


Various parameters


Product name Stone carving machine DW2232-2D-1500
Platform dimensions 2000x3000mm
Workpiece size 1000x3000x2
Feed height ≤400mm≤600mm-1500mm
Blank speed 25m/min
Processing speed 1-15m/min
spindle power 5.5KW water-cooled spindle
Motor 1108S/1.5Kw ACserver motor
OperatingVoltage AC380V/50Hz
File format G-code/HPGL
Control System WEIHONG Nc60A
Machine dimension 3200×4200×3500mm
Weight 3300kg
Elevated special design optional
