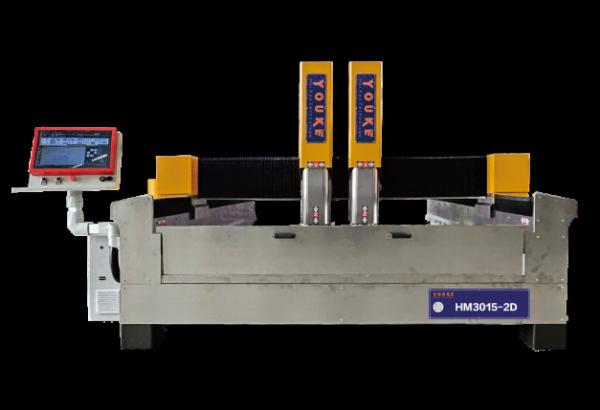

OEM CNC Marble Engraving Machine Router For Stone Carving
OEM CNC Marble Engraving Machine Router For Stone Carving
OEM CNC Marble Engraving Machine Router For Stone Carving
OEM CNC Marble Engraving Machine Router For Stone Carving
OEM CNC Marble Engraving Machine Router For Stone Carving
OEM CNC Marble Engraving Machine Router For Stone Carving
Specifications
Model Number :
HM3015-2D
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Packaging Details :
width 2200 x length 5200 x height 2350mm
Delivery Time :
15 work days
Payment Terms :
L/C,D/A
Platformdimensions :
3000x1500mm
Workpiece size :
1450×1500×2
Feed height :
≤400mm/700mm
Blank speed :
25m/min
Processing speed :
1-15m/min
spindle power :
5.5KW water-cooled spindle
Motor :
1108S/2208 ACservo motor
OperatingVotage :
AC380V/50Hz
File format :
G-code/HPGL
Control System :
WEIHONG Nc60A
Machine dimension :
4100x2250x2100mm
Weight :
2800kg
Description

Introduction

Stone engraving machine is a kind of mechanical equipment specially used for marble, granite, bluestone, jade and other stone carving, cutting, drilling, milling and other processing. It combines numerical control technology and high-powered spindles to enable high-precision engraving of complex patterns, reliefs and text on hard stone surfaces. Stone carving machine is widely used in architectural decoration, tombstone carving, handicraft production, stone tablet carving and other fields.

Functional Characteristic

★ The equipment system is a specially designed product for the stone carving machine industry,mainly aimed at the convenient rotation of export loading containers and the abillty to add engraving and leveling engraving functions,ensuring highquality,efficiency,and precision; Mainly used for flat carving and hollow cutting of granite,marble,quartz,copper plate,aluminum plate,etc;It is the preferred choice for stone irregular carving processing factories;

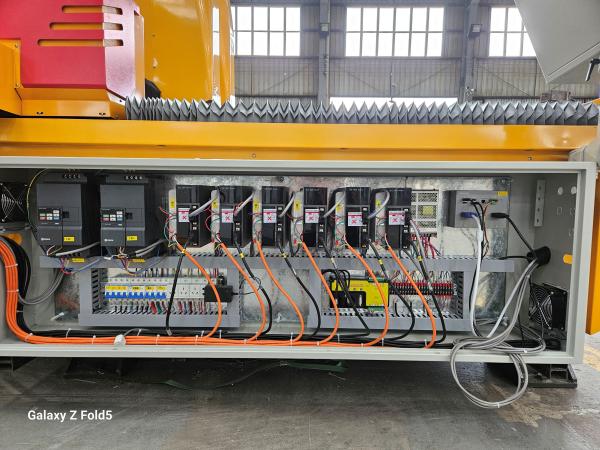

★ Equipment driven by servo motor-758/1108s,fast speed,high precision,good stability;

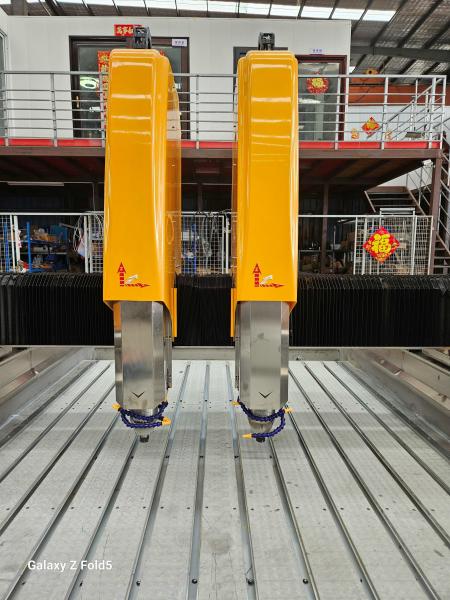

★ The whole machine X,Y,Z transmission adopts 30 import straight square rail,bearing capacity,stable operation,high machining precision;

★ The whole machine adopts thickened steel pipe welding,strong rigidity is not easy to deformation,Stainless steel surrounded the fuselage and table,theoverall service life of the equipment is longer.


Various parameters

Platformdimensions 3000x1500mm
Workpiece size 1450×1500×2
Feed height ≤400mm/700mm
Blank speed 25m/min
Processing speed 1-15m/min
spindle power 5.5KW water-cooled spindle
Engine 1108S/2208 ACservo motor
OperatingVotage AC380V/50Hz
File format G-code/HPGL
Control System WEIHONG Nc60A
Machine dimension 4100x2250x2100mm
Weight 2800kg


Application Area

• Architectural decoration

• Tombstone carving

• Handicraft production

• Steles and monuments
