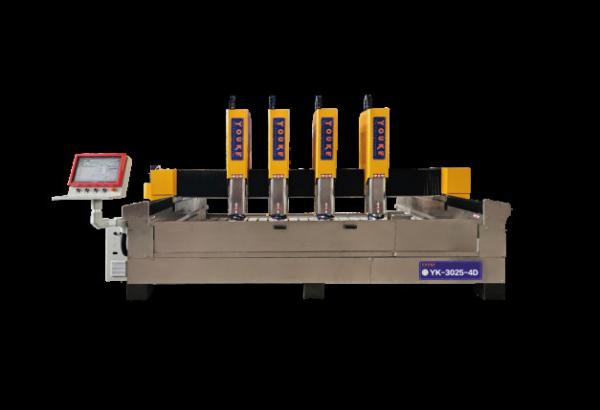

HPGL CNC Stone Engraving Machine For Jade Carving 3800kg
HPGL CNC Stone Engraving Machine For Jade Carving 3800kg
HPGL CNC Stone Engraving Machine For Jade Carving 3800kg
HPGL CNC Stone Engraving Machine For Jade Carving 3800kg
Specifications
Model Number :
HM3025-4D
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Packaging Details :
width 2200 x length 5200 x height 2350mm
Delivery Time :
15 work days
Payment Terms :
L/C,D/A
Patformdimensions :
3000×2000mm
Workpiece size :
750x2500x4
Blank speed :
20m/min
Processing speed :
1-15m/min
spindle power :
5.5/7.5KW water-cooled spindle
Spindle speed :
6000~24000rpm/min
Motor :
1.5kw AC digital servo motor
Reducer :
Planets 1:7
OperatingVoltage :
AC380V/50Hz
File formal :
G-code/HPGL
Control System :
WEIHONG Nc60A
Machine dimension :
4500*3400*2300mm
Weight :
3800kg
apearance design :
optional
Description

Introduction


4D stone engraving machine represents the high-end level of stone engraving technology, it combines traditional 3D engraving with the dynamic processing of the time dimension, and can achieve more complex and fine stone engraving effects. For projects seeking high quality and uniqueness, the 4D stone engraving machine is an ideal choice.


Functional Characteristic


★ Equipment system is Shanghai Weihong Company for stone engraving machine features,to ensure high quality,high efficiency,high precision;Mainly used for granite,marble,quartz stone,copper plate,aluminum plate and other flat engraving and hollow cutting;Stone industry is the first choice of special-shaped carving processing plant;

★ Equipment driven by brand servo motor,1:7 reducer,fast speed,high precision,good stability;

★ The whole machine X,Y,Z transmission adopts 30 import straight square rail,bearing capacity,stable operation,high machining precision;

★ The whole machine adopts thickened steel pipe welding,strong rigidity is not easy to deformation,Stainless steel surrounded the fuselage and table,the overall service life of the equipment is longer.


Various parameters


Product name Stone carving machine HM3025-4D
Patformdimensions 3000×2000mm
Workpiece size 750x2500x4
Blank speed 20m/min
Processing speed 1-15m/min
spindle power 5.5/7.5KW water-cooled spindle
Spindle speed 6000~24000rpm/min
Motor 1.5kw AC digital servo motor
Reducer Planets 1:7
OperatingVoltage AC380V/50Hz
File formal G-code/HPGL
Control System WEIHONG Nc60A
Machine dimension 4500*3400*2300mm
Weight 3800kg
apearance design optional
