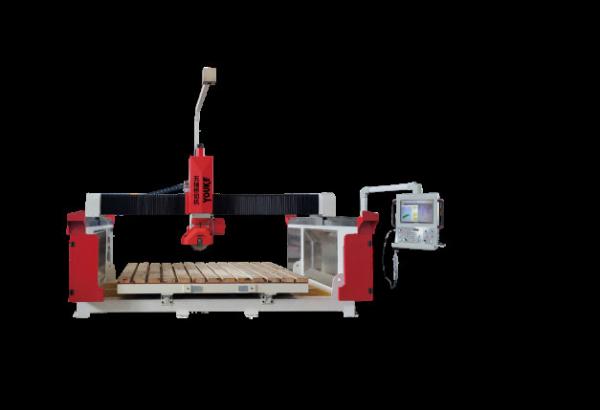

Industrial Automatic 5 Axis Bridge Saw Tile Stone Cutting Machine
Industrial Automatic 5 Axis Bridge Saw Tile Stone Cutting Machine
Industrial Automatic 5 Axis Bridge Saw Tile Stone Cutting Machine
Industrial Automatic 5 Axis Bridge Saw Tile Stone Cutting Machine
Industrial Automatic 5 Axis Bridge Saw Tile Stone Cutting Machine
Industrial Automatic 5 Axis Bridge Saw Tile Stone Cutting Machine
Industrial Automatic 5 Axis Bridge Saw Tile Stone Cutting Machine
Industrial Automatic 5 Axis Bridge Saw Tile Stone Cutting Machine
Industrial Automatic 5 Axis Bridge Saw Tile Stone Cutting Machine
Industrial Automatic 5 Axis Bridge Saw Tile Stone Cutting Machine
Specifications
Model Number :
CNC5X-5700B
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Packaging Details :
width 2200 x length 5200 x height 2350mm
Delivery Time :
15 work days
Payment Terms :
L/C,D/A
Aaxis stroke :
0-90(automatic)
C axis stroke :
±365
(mm)Maximum machining size :
3200×2000X12C
(m/min)Fastruning speed :
25
(KW)Spindle power :
18.5/22
(mm)Saw blade diametel :
300-500
(mm)Platform size :
3200×2000
(°)Flip Angle :
0-85
(kw)The total power :
≈26/30
(kg)The total weight :
≈4300
(mm)Equipment dimensions :
5800×3300×3500
Camera function :
Industrial camera
The knife function :
optional

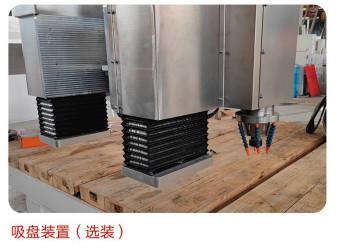

Chuck function :
optional

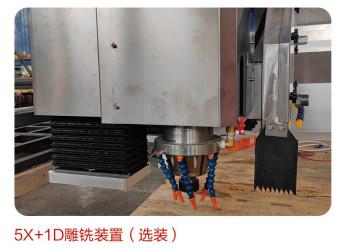

Cutter function :
optional
Description

Introduction


5-axis bridge cutting machine is an advanced CNC equipment, mainly used for stone, tile, marble and other materials cutting and processing. Through the linkage of five axes, it realizes the complex cutting and engraving of materials, and has the characteristics of high precision and high efficiency.


Functional Characteristic


★ This machine is a special 5-axis bridge cutting machine,aiming at the cutting and copying processing of specification boards and various special-shaped shapes (mainly:polygon,triangle,fan,table panel processing,oval,diamond,circle,horse belly edge,any Angle chamfer,straight and arc line copying);It has the advantages of fast speed,high cutting precision,simple operation and easy to learn.Suitable for rock plate,marble,granite,quartz stone and granite processing.

★ The system is specially designed for 5-axis bridge cutting machine,CNC system and Huichuan servo drive bus communication,JOG running,RTCP linkage function,support CAD import,fast response speed,higher processing accuracy.


Various parameters

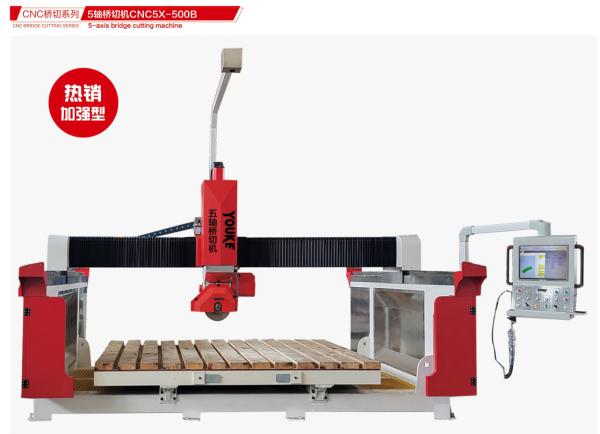

Product name 5-axis bridge cutting machine CNC5X-500B
Aaxis stroke 0-90(automatic)
C axis stroke ±365
(mm)Maximum machining size 25
(mm)Maximum machining size 3200×2000X12C
(KW)Spindle power 18.5/22
(mm)Saw blade diametel 300-500
(mm)Platform size 3200×2000
(°)Flip Angle 0-85
(kw)The total power ≈26/30
(kg)The total weight ≈4300
(mm)Equipment dimensions

5800×3300×3500
Camera function Industrial camera

The knife function

 optional
Chuck function optional
Cutter function optional
