Automatic 4Axis CNC Stone Saw Bridge Saw Cutting Machine For Marble
Automatic 4Axis CNC Stone Saw Bridge Saw Cutting Machine For Marble
Automatic 4Axis CNC Stone Saw Bridge Saw Cutting Machine For Marble
Automatic 4Axis CNC Stone Saw Bridge Saw Cutting Machine For Marble
Automatic 4Axis CNC Stone Saw Bridge Saw Cutting Machine For Marble
Automatic 4Axis CNC Stone Saw Bridge Saw Cutting Machine For Marble
Automatic 4Axis CNC Stone Saw Bridge Saw Cutting Machine For Marble
Automatic 4Axis CNC Stone Saw Bridge Saw Cutting Machine For Marble
Specifications
Model Number :
CNC4X-350B
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Packaging Details :
width 2200 x length 5200 x height 2350mm
Delivery Time :
15 work days
Payment Terms :
L/C,D/A
(mm)Saw blade diameter :
300
Table size :
3200X2000
Maximum cutting size :
3200X2000X50
Maximum chamfer size :
3000X1800X50
Saw blade horizontal rotation Angle :
0-360°
Chamfer bearing :
0-90-180-270°
Saw blade tilt Angle :
0/45°
Table turning Angle :
0-85°
Main motor power :
15
Host frequency conversion :
optional
Total power Kw :
22.5
Gross weight of complete machine :
3500
Overall dimension :
5300×3200X2800
Description

Introduction


4-axis bridge cutting machine is an automatic equipment for stone processing, especially suitable for marble, granite and other natural stone cutting. Its name comes from the fact that its structural design is similar to that of a bridge crane, and the cutting head below the table can be moved along the four axes of the bridge.


Functional Characteristic


★ The 4-axis bridge cutting machine series products belong to the CNC series of high-end cutting equipment,mainly used for irregular edge cutting of building materials such as rock slabs,marble,quartz,granite,ceramic tiles,cement products,etc.It is the preferred processing equipment for stone irregular processing plants.

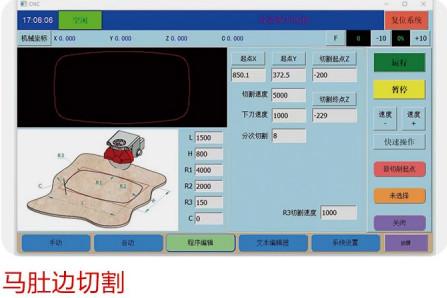

★ Function is mainly suitable for specification board and all kinds of special-shaped cutting,copying processing (such as polygon,triangle,fan,table panel cutting,oval,diamond,circle,horse belly edge,45 ·chamfer and copying);CNC control has the advantages of fast running speed,high cutting precision, simple and efficient operation.

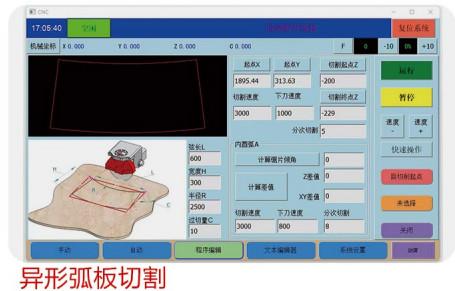

★ Easy to learn operation:touchscreen computer interface,supports DXF import,template input,no programming required. High configuration:The main core control components using international brand components,stable performance,long life.

★ The transmission parts adopt high precision linear guide rail,with high precision planetary reducer,high precision.

★ Energy saving:permanent magnet main motor is optional,saving 30%energy than three-phase asynchronous motor.


Various parameters


Product name 4-axis bridge cutting machine CNC4X-350B
(mm)Saw blade diameter 300
Table size 3200X2000
Maximum cutting size 3200X2000X50
Maximum chamfer size 3000X1800X50
Saw blade horizontal rotation Angle 0-360°
Chamfer bearing 0-90-180-270°
Saw blade tilt Angle 0/45°
Table turning Angle 0-85°
Main motor power 15
Host frequency conversion optional
Total power Kw 22.5
Gross weight of complete machine 3500
Overall dimension 5300×3200X2800
