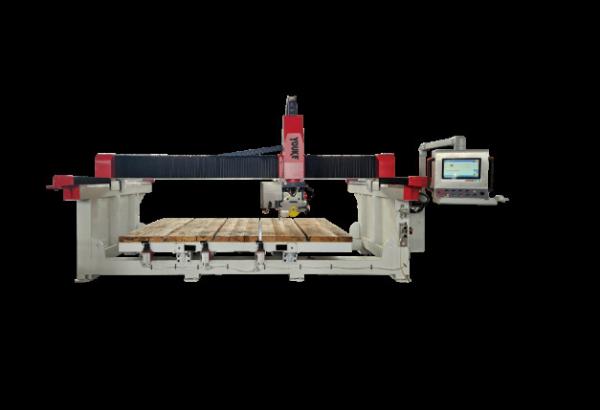

Customized CNC Stone Cutting Bridge Saw Machine 4 Axis 75KW
Customized CNC Stone Cutting Bridge Saw Machine 4 Axis 75KW
Customized CNC Stone Cutting Bridge Saw Machine 4 Axis 75KW
Customized CNC Stone Cutting Bridge Saw Machine 4 Axis 75KW
Customized CNC Stone Cutting Bridge Saw Machine 4 Axis 75KW
Customized CNC Stone Cutting Bridge Saw Machine 4 Axis 75KW
Specifications
Model Number :
CNC4X350B+1D
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Packaging Details :
width 2200 x length 5200 x height 2350mm
Delivery Time :
15 work days
Payment Terms :
L/C,D/A
saw blade diameter :
350/450
Workbench size :
3200X2000
EngravingWorkbench size :
3000X2000
Maximum cutting size :
3200×2000X50
Engraving Maximum cutting size :
2800X1800X100
Maximum chamfer size :
3000X1800X50
Horizontal rotation angle of saw blade :
0-360°
Chamfer orientation :
0-90-180-270°
Saw blade inclination angle :
0/45°
Workbench flap angle :
0-85°
Description

Introduction


4-axis bridge cutting machine CNC4X350B+1Dinclusion of three linear axes (X, Y, Z) and a rotating axis (C) allows the bridge cutter to precisely cut the stone at different angles and positions. The multi-axis control capability of the 4-axis bridge cutter enables it to achieve complex cutting paths, suitable for the production of stone panels of various shapes, such as right Angle cutting, oblique cutting, and special-shaped processing.


Functional Characteristic


★This device has two functions:CNC four axis bridge cutting and tabletop engraving and milling.The first cutting motor can perform 4-axis bridge cutting processing function,and the second head is a carving spindle that can perform all functions of miling and carving processing.It is a pioneering product in the stone industry with extremely high cost-effectiveness,and is the preferred product for customers in the home decoration market.

★ Function is mainly suitable for specification board and all kinds of special-shaped cutting,copying processing (such as polygon,triangle,fan,table panel sciumtt horse belly edge,45°chamfer and copying);CNC control has the advantages of fast running speed,high cuting precision,

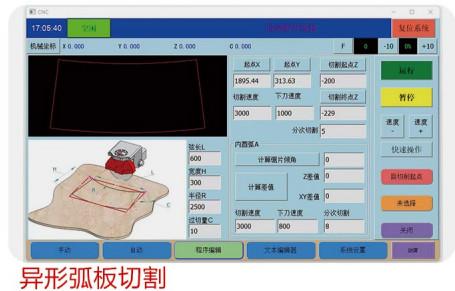

★ Easy to learn operation:touchscreen computer interface,supports DXF import,template input,no programming required. High configuration:The main core control components using international brand components,stable performance,long life

★ The transmission parts adopt high precision linear guide rail,with high precision planetary reducer,high precision.

★ Energy saving:permanent magnet main motor is optional,saving 30%energy than three-phase asynchronous motor


Various parameters


Customized CNC Stone Cutting Bridge Saw Machine 4 Axis 75KW






Straight edge cutting

Customized CNC Stone Cutting Bridge Saw Machine 4 Axis 75KW



Basin cutting


Customized CNC Stone Cutting Bridge Saw Machine 4 Axis 75KW

Customized CNC Stone Cutting Bridge Saw Machine 4 Axis 75KW
