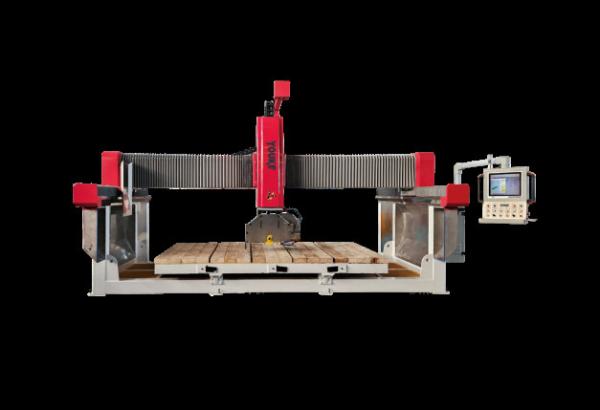

Oval Diamond Shaped 5 Axis CNC Bridge Saw Cutting Machine For Granite Stone
Oval Diamond Shaped 5 Axis CNC Bridge Saw Cutting Machine For Granite Stone
Oval Diamond Shaped 5 Axis CNC Bridge Saw Cutting Machine For Granite Stone
Oval Diamond Shaped 5 Axis CNC Bridge Saw Cutting Machine For Granite Stone
Specifications
Model Number :
CNC5X-700B
Place of Origin :
CHINA
MOQ :
1
Price :
218800RMB
Packaging Details :
width 2200 x length 5200 x height 2350mm
Delivery Time :
15 work days
Payment Terms :
L/C,D/A
Aaxis stroke :
0-90(automatic)
C axis stroke :
±365
Mamaximum machining size(mm) :
3600×2000×200
Fast runing speed(m/min) :
25
Spindle power(KW) :
22
Spindle speed(rpm) :
0-6000
The total power(kw) :
35
The total weight(kg) :
≈5200
Saw blade diamete(mm) :
350-700
Platform size(mm) :
3600×2000
Flip Angle(°) :
0-85
Equipment dimensions(mm) :
6200×3300×3800
Camera functon :
Industrial Camera
The knife function :
Optional
Chuckfunction :
Optional
Cutter function :
Optional
Beam structure :
Casting iron
Description

Introduction


5-axis bridge cutting machine is an advanced CNC equipment, mainly used for stone, tile, marble and other materials cutting and processing. Through the linkage of five axes, it realizes the complex cutting and engraving of materials, and has the characteristics of high precision and high efficiency.


Functional Characteristic


★The machine is an integrated plus heavy 5-axis bridge cutting machine,for specifications and all kinds of special-shaped plate cutting and copying processing(mainly:polygon,triangle,fan,table panel processing,oval,diamond,circle,horse belly edge,any Angle chamfering,straight and arc line copying);With the advantages of fast speed,high cutting precision,simple and intelligent operation,it is suitable for the processing of stone such as cutting rock board,marble,granite,quartz stone and granite.

★ System:the use of ltaly ESA company 5-axis special model;CNC system and driver bus communication,JOG running,RTCP linkage function,support CAD import;The operation response speed is fast,and the processing precision is higher.

★ The mechanical part of the beam is reinforced casting parts,the whole machine equipment using high-precision machine tool processing;The X axis uses 3 imported 35 rails,and the Y and Z axes are imported 35 rails.With the international brand Qinchuan RV reducer,more effective protection of equipment strength and processing accuracy.


Various parameters


Product name 5-axis bridge cutting machine CNC5X-700B
Aaxis stroke 0-90(automatic)
C axis stroke ±365
Mamaximum machining size(mm) 3600×2000×200
Fast runing speed(m/min) 25
Spindle power(KW) 22
Spindle speed(rpm) 0-6000
The total power(kw) 35
The total weight(kg) ≈5200
Saw blade diamete(mm) 350-700
Platform size(mm) 3600×2000
Flip Angle(°) 0-85
Equipment dimensions(mm) 6200×3300×3800
Camera functon Industrial Camera
The knife function Optional
Chuckfunction Optional
Cutter function Optional
Beam structure Casting iron
