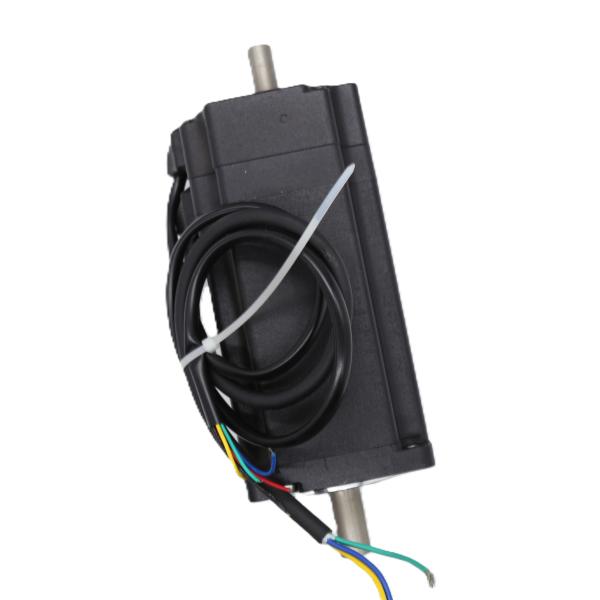

60mm Hybrid Stepper Motor For CNC Machines and Printing Equipment
60mm Hybrid Stepper Motor For CNC Machines and Printing Equipment
60mm Hybrid Stepper Motor For CNC Machines and Printing Equipment
60mm Hybrid Stepper Motor For CNC Machines and Printing Equipment
60mm Hybrid Stepper Motor For CNC Machines and Printing Equipment
60mm Hybrid Stepper Motor For CNC Machines and Printing Equipment
60mm Hybrid Stepper Motor For CNC Machines and Printing Equipment
60mm Hybrid Stepper Motor For CNC Machines and Printing Equipment
Specifications
Brand Name :
XM-Motor
Model Number :
HB60
Certification :
ISO9001 ROHS
Place of Origin :
CHINA
MOQ :
1PCS
Price :
1~10 USD/PC
Payment Terms :
L/C, T/T, D/P
Supply Ability :
100,000 PCS/month
Delivery Time :
20 ~ 30 days after receiving deposit
Packaging Details :
Carton
Step Angle :
1.8° ± 5%
IP Rating :
40
Insulation Resistance :
100 MegOhms
Current :
2~4.5
Torque :
0.7~4 N.m
Motor Length :
47~110mm
Name :
60mm Hybrid Stepper Motor For CNC Machines and Printing Equipment
colour :
customized
color :
customized
Description
60mm Hybrid Stepper Motor For CNC Machines and Printing Equipment

Motor Model: NEMA34 Two - phase simple servo stepper motor-XM60HS-ED

Genaral Specification:

(Specifications)
(Step Angle) 1.8°
(Temperature Rise) 80℃max
(Ambient Temperature) -20℃~+50℃
(Insulation Resistance) 100 MΩ Min. ,500VDC
(Dielectric Strength): 820VAC for 1s 3mA
(Shaft Radial Play) 0.02Max. (450g-load)
(Shaft Axial Play) 0.08Max. (450g-load)
(Max. radial force) 220N (20mm from the flange)
(Max. axial force) 60N

Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass
( °) (L)mm A Ω mH N.m No. Kg.cm g.cm60mm Hybrid Stepper Motor For CNC Machines and Printing Equipment Kg
XM86HS78-6004XBJED-0.35M 1.8 78 6 0.27 2 4.5 4 1.2 1400 2.8
XM86HS115-6004YBJED-0.35M 1.8 115 6 0.36 3.8 8.5 4 2.4 2700 4.3
XM86HS155-6004YBJED-0.35M 1.8 155 6 0.44 3.8 12 4 3.6 4000 5.9

Above only for representative products, products of special request can be made according to the customer request.

Dimensions:

60mm Hybrid Stepper Motor For CNC Machines and Printing Equipment

60mm Hybrid Stepper Motor For CNC Machines and Printing Equipment

Wiring Diagram:()

60mm Hybrid Stepper Motor For CNC Machines and Printing Equipment

60mm Hybrid Stepper Motor For CNC Machines and Printing Equipment

(Torque-frequency characteristic curve):

60mm Hybrid Stepper Motor For CNC Machines and Printing Equipment
