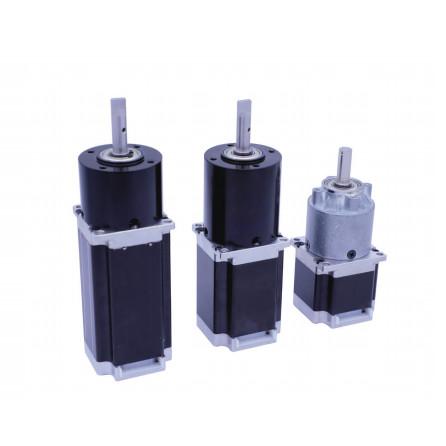

Standard Hybrid Stepping Motor 2 Phase - 4 Phase Stepper Motor With Gearbox
Standard Hybrid Stepping Motor 2 Phase - 4 Phase Stepper Motor With Gearbox
Specifications
Brand Name :
XM-Motor
Model Number :
Hybrid Stepper Gearbox Motor 57 Series
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
10000
Price :
1~10 USD/PC
Payment Terms :
L/C,D/P,T/T
Supply Ability :
100000PCS/month
Delivery Time :
35days
Packaging Details :
CTN OR CUSTOMIZED
Name :
Hybrid Stepping Motor
Material :
black or customized
size :
Standard
packing :
CTN Or Customized
motor :
stepper motor
phase :
2~4
stepper motor :
4 wire stepper motor
high torque :
small stepper motor high torque
Construction :
PM
Description

Hybrid Stepping MotorHybrid Stepper Gearbox Motor 57 Series Step Accuracy ±5% Temperature Rise 80°C Max Ambient Temperature Range -20°C - +50°C100MΩ @ 500 VDC Dielectric Strength

Hybrid Stepper Gearbox Motor 57Series

Product Overview

Product Overview Specification
Step accuracy ±5%
Temperature rise 80°C Max
Ambient temperature range -20°C - +50°C
Insulation resistance 100MΩ @ 500 VDC
Dielectric strength 500V AC for 1 minute

Technical Data

Model Reduction Ratio Gearbox Diameter Phase Voltage Phase Current Phase Resistance Phase Inductance Static Torque Gearbox Height Motor Height Total Weight
57BYGH231 - 05AG13 1/13 52 9.6 1.0 9.6 20 0.10 52.9 51.1 1.05
57BYGH236 - 01AG6 1/6 56 12.0 0.55 22 55 0.90 41.3 62.7 1.25
57BYGH406 - 17AG6 1/6 56 6.2 1.0 6.2 18 0.9 41.3 67.7 1.25
57BYGH636 - 80AG15 1/15 56 1.5 3.0 0.5 1.8 1.5 59.6 69.4 1.70

Optional Gearboxes

Optional Gearboxes

Planetary Gearbox 52 Zinc Alloy Model

Reduction Ratio Instant Allowable Load (Nm) Length (mm) Reduction Ratio Stages
1/13 6.0 52.9 1

Planetary Gearbox 56mm

Reduction Ratio Instant Allowable Load (Nm) Length (mm) Reduction Ratio Stages
1/4 6.0 41.3 1
1/6 - - -
1/15 25 59.6 2
1/18 - - -
1/26 50 59.6 2
1/47 - - -
1/66 - - -

Planetary Gearbox 56 Zinc Alloy Model

Reduction Ratio Instant Allowable Load (Nm) Length (mm) Reduction Ratio Stages
1/13 6.0 52.7 1

Planetary Gearbox 56 Alternative Model

Reduction Ratio Instant Allowable Load (Nm) Length (mm) Reduction Ratio Stages
1/4 6.0 43.3 1
1/6 - - -

Planetary Gearbox 56 Zinc-Plastic Model

Reduction Ratio Instant Allowable Load (Nm) Length (mm) Reduction Ratio Stages
1/15 25 61.6 2
1/18 - - -
1/26 - - -
1/47 50 61.6 2
1/66 - - -
