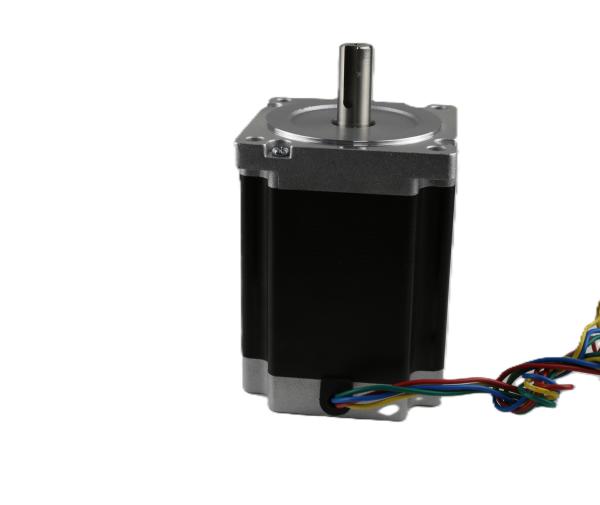

Step Angle 1.8 Degree Stepper Motor 2 Phase 4 Phase Stepper Motor 4 Wire
Step Angle 1.8 Degree Stepper Motor 2 Phase 4 Phase Stepper Motor 4 Wire
Step Angle 1.8 Degree Stepper Motor 2 Phase 4 Phase Stepper Motor 4 Wire
Step Angle 1.8 Degree Stepper Motor 2 Phase 4 Phase Stepper Motor 4 Wire
Specifications
Brand Name :
XM-Motor
Model Number :
1.8° 28HS hybrid stepper motor
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
10000
Price :
1~10 USD/PC
Payment Terms :
L/C,D/P,T/T
Supply Ability :
100000PCS/month
Delivery Time :
35days
Packaging Details :
CTN OR CUSTOMIZED
Name :
1.8 Degree Stepper Motor 2 Phase
Material :
black or customized
size :
standard
Ambient Temperature :
-20℃~+50℃
Insulation Resistance :
100 MΩ Min. ,500VDC
Dielectric Strength :
500VAC for 1minute
Temperature Rise :
80℃max
packing :
CTN or customized
Shaft Radial Play :
0.02Max. (450g-load)
Shaft Axial Play :
0.08Max. (450g-load)
motor :
stepper motor
phase :
2~4
stepper motor :
4 wire stepper motor
high torque :
small stepper motor high torque
Construction :
PM
Description

Hybrid Stepping Motor 1.8° 28HS Hybrid Stepper Motor (Step Angle) 1.8° Shaft Radial Play) 0.02Max. (450g-Load)

1.8° 28HS hybrid stepper motor

Product Overview

(Item) (Specifications)
Step Angle) 1.8°
(Temperature Rise) 80℃max
(Ambient Temperature) -20℃~+50℃
(Insulation Resistance) 100 MΩ Min. ,500VDC
(Dielectric Strength): 500VAC for 1minute
(Shaft Radial Play) 0.02Max. (450g-load)
(Shaft Axial Play) 0.08Max. (450g-load)
(Max. radial force) 28N (20mm from the flange)
(Max. axial force) 10N

Motor Specifications:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Rotor Inertia

Mass
( °) (L)mm A Ω mH g.cm No. g.cmStep Angle 1.8 Degree Stepper Motor 2 Phase 4 Phase Stepper Motor 4 Wire Kg
28HS32-0956 1.8 32 0.95 2.8 0.8 430 6 9 0.11
28HS32-0674 1.8 32 0.67 5.6 3.4 600 4 9 0.11
28HS45-0956 1.8 45 0.95 3.4 1.2 750 6 12 0.14
28HS45-0674 1.8 45 0.67 6.8 4.9 950 4 12 0.14
28HS51-0956 1.8 51 0.95 4.6 1.8 900 6 18 0.2
28HS51-0674 1.8 51 0.67 9.2 7.2 1200 4 18 0.2

Motor Outline Drawing

Step Angle 1.8 Degree Stepper Motor 2 Phase 4 Phase Stepper Motor 4 Wire

Motor Wiring Diagram

Step Angle 1.8 Degree Stepper Motor 2 Phase 4 Phase Stepper Motor 4 Wire
