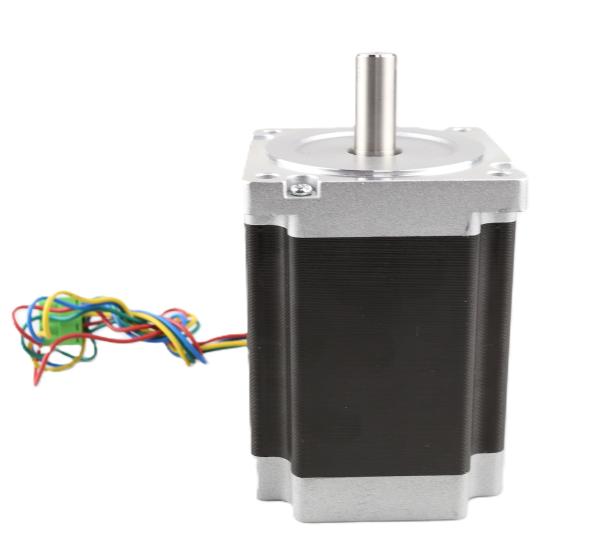

High Torque Hybrid Stepper Motor , Miniature Stepper Motor With Gearbox
High Torque Hybrid Stepper Motor , Miniature Stepper Motor With Gearbox
High Torque Hybrid Stepper Motor , Miniature Stepper Motor With Gearbox
High Torque Hybrid Stepper Motor , Miniature Stepper Motor With Gearbox
High Torque Hybrid Stepper Motor , Miniature Stepper Motor With Gearbox
High Torque Hybrid Stepper Motor , Miniature Stepper Motor With Gearbox
Specifications
Brand Name :
XM-Motor
Model Number :
Hybrid Stepper Gearbox Motor 57 Series
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
10000
Price :
10
Payment Terms :
L/C,D/P,T/T
Supply Ability :
100000PCS/month
Delivery Time :
35days
Packaging Details :
CTN OR CUSTOMIZED
Name :
High Torque Hybrid Stepper Motor
Material :
black or customized
size :
standard
packing :
CTN or customized
Step Angle :
0.9°
Temperature Rise :
80℃max
Ambient Temperature :
-20℃~+50℃
Dielectric Strength :
500VAC for 1minute
Shaft Radial Play :
0.02Max. (450g-load)
motor :
stepper motor
phase :
2~4
stepper motor :
4 wire stepper motor
high torque :
small stepper motor high torque
Construction :
PM
Description
Hybrid Stepping Motor Hybrid Stepper Gearbox Motor 57 Series Basic Performance Of 0.9° 57HM Hybrid Stepper Motor
Basic Performance of 0.9° 57HM Hybrid Stepper Motor

(Item) Specifications)
(Step Angle 0.9°
Temperature Rise 80℃max
(Ambient Temperature) -20℃~+50℃
(Insulation Resistance) 100 MΩ Min. ,500VDC
Dielectric Strength 500VAC for 1minute
Shaft Radial Play 0.02Max. (450g-load)
Shaft Axial Play 0.08Max. (450g-load)
(Max. radial force) 75N (20mm from the flange)
Max. axial force) 15N

Motor Specifications:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass
( °) (L)mm A Ω mH kg.cm No. g.cm g.cm Kg
57HM41-1006 0.9 41 1 5.7 8 3.9 6 210 120 0.45
57HM41-2006 0.9 41 2 1.4 2.2 3.9 6 210 120 0.45
57HM41-3006 0.9 41 3 0.63 1.0 3.9 6 210 120 0.45
57HM41-2804 0.9 41 2.8 0.7 2.2 5.5 4 210 120 0.45
57HM56-1006 0.9 56 1 7.4 17.5 9 6 400 300 0.7
57HM56-2006 0.9 56 2 1.8 4.5 9 6 400 300 0.7
57HM56-3006 0.9 56 3 0.75 1.9 9 6 400 300 0.7
57HM56-2804 0.9 56 2.8 0.9 4.5 12 4 400 300 0.7
57HM76-1006 0.9 76 1 8.6 23 13.5 6 680 480 1
57HM76-2006 0.9 76 2 2.25 5.6 13.5 6 680 480 1
57HM76-3006 0.9 76 3 1 2.6 13.5 6 680 480 1
57HM76-2804 0.9 76 2.8 1.13 5.6 18 4 680 480 1

Motor Outline Drawing

Motor Wiring Diagram
