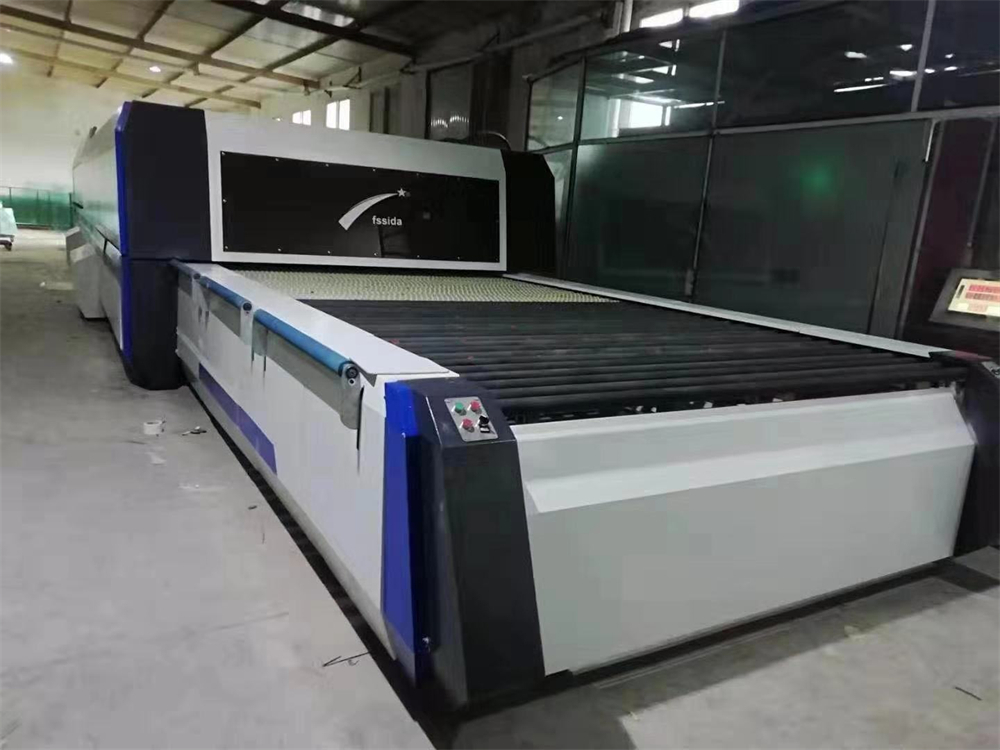

The furnace includes loading table, heating section , quenching and cooling section, unloading table, and control system. It is used to manufacture flat tempered glass for furniture, home appliance, architecture glass, etc.

1. Uniform Heating and Precise Temperature Control

• Heating elements and radiation plates arranged on both upper and lower layers in matrix layout for even heating

• Glass moves back and forth automatically on rollers with computer-calculated distance to ensure uniform heat distribution

2. Easy Maintenance and Long Service Life

• Upper radiation plate made of special heat-resistant, anti-corrosion cast material

• Spiral-type resistance heating elements integrated with ceramic parts — easy to replace

• Upper furnace section can be lifted up for convenient maintenance

3. Advanced Quenching Technology for Superior Flatness

• Alloy sections and steel sheets cold-riveted to avoid heat-welding deformation, ensuring perfect flatness of the air face

• Upper and lower quenches with linkage and individual drives allow precise control of air nozzle height

• Balanced upper/lower air volume control ensures optimum heat exchange on both glass surfaces — excellent flatness of finished tempered glass

4. Passing Technology — Significant Energy Saving

• For 4–5mm glass production, no need to start large blowers .Saves approximately 60% of quenching energy and reduces installed power

5. Highly Automated Operation

• Loading table automatically conveys glass to furnace entrance with roller stop positioning; computer control system commands furnace entry

• Unloading table supports manual pickup or robot handling

6. Reliable After-Sales Service

• One-year warranty + lifetime technical support

• Tinted glass
• Patterned glass
• Coated glasses (Including most kinds of hard coated glass, parts of special soft coated glass, which withstands about temperature 700 ℃)
• Silk screen printing glass
• Clear float glass
• Sandblasting glass

• --Loading table
• --Heating section(furnace) with top vortex convection system
• --Fast pass area
• --Quenching and Cooling section
• --Unloading table
• --Blower system
• --Control system
