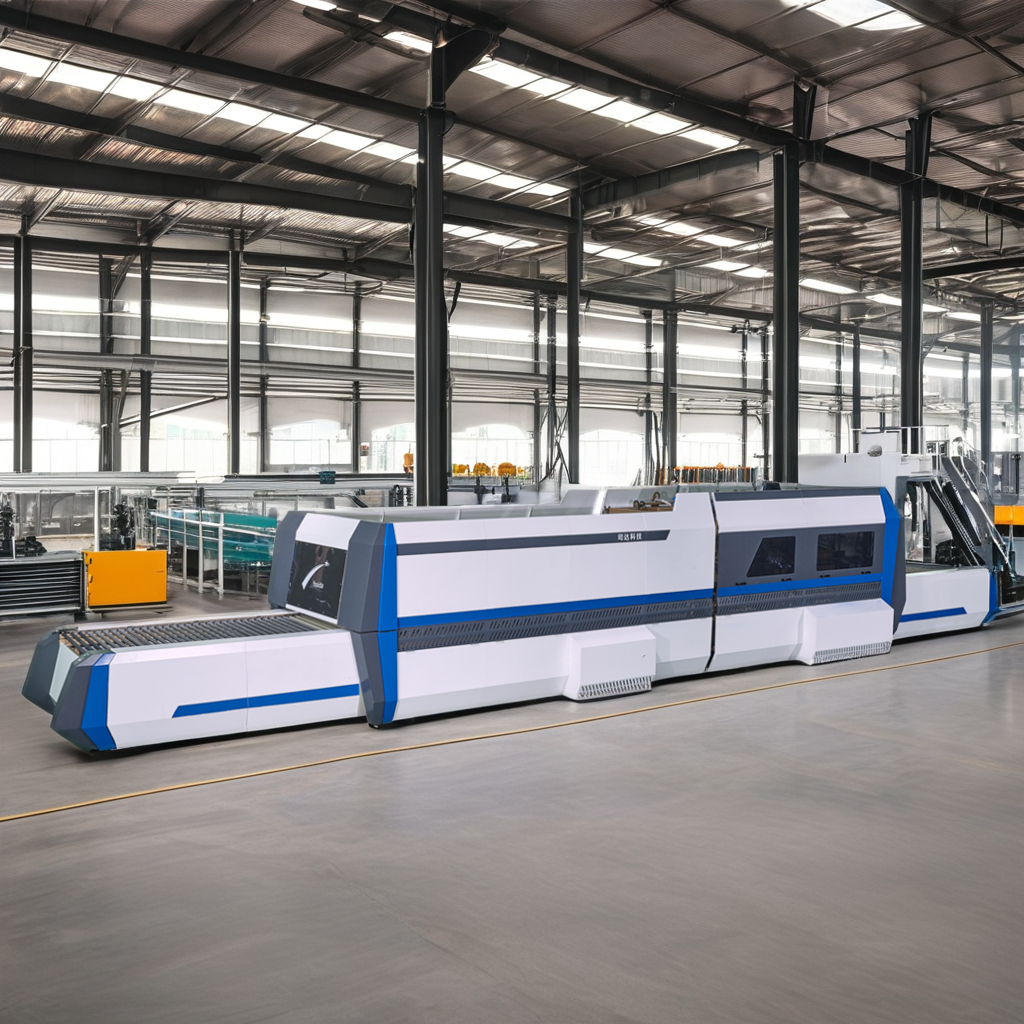

Convection Model Low E Glass Tempering Furnace For Furniture / Home Appliance
Convection Model Low E Glass Tempering Furnace For Furniture / Home Appliance
Convection Model Low E Glass Tempering Furnace For Furniture / Home Appliance
Convection Model Low E Glass Tempering Furnace For Furniture / Home Appliance
Specifications
Heat power :
560KW
Price :
$130000-$159000/Set
Certification :
CE
Model :
STG-A Q2436-4T
Packaging Details :
protective fim
Max glass size :
2440X3660mm
Payment Terms :
L/C,T/T
Place of Origin :
CHINA
Type :
Convection Model
Delivery Time :
90 days
Glass width :
2440mm
Supply Ability :
15Set each month
Glass thickness :
4-19mm
MOQ :
1
Brand Name :
FSSIDA
Name :
Glass Tempering Furnace
Description
Convection Model STG-A Q2436-4 T Glass Tempering Furnace for Low e Glass
Product Description
The furnace includes loading table, heating system, Top Vortex fan forced convection system. quenching and cooling section, unloading table, and control system. It is used to manufacture glass for furniture, home appliance, architecture glass, etc.
Product Features
1. Accurate heating and temperature control
The equipment is equipped with high-precision infrared sensors and dynamic algorithms, which can intelligently control the temperature of the furnace, abandoning the traditional waste mode of "higher than lower", ensuring uniform heating of the glass, effectively reducing optical deformation, ripple color difference, and furnace explosion phenomenon.
2. Efficient cooling and wind pressure system
The air cooling system of the tempered section directly determines the stress uniformity and flatness of the glass. The advanced tempering furnace adopts equal pressure tempering technology and customized formed air grilles to ensure consistent internal stress of tempered glass. For ultra-thin or special glass, some equipment adopts a dual fan through structure (combining high-pressure and low-pressure fans), which significantly improves the flatness of the glass while saving energy.
3. Processing compatibility and multifunctionality
Modern tempering furnaces have strong material compatibility, not only capable of processing ordinary white glass and ultra white glass, but also capable of high-quality tempering of online/offline Low-E glass, silk screen glass, embossed glass, and colored glass. In terms of morphological processing, through technologies such as flat bending bidirectional design, servo transmission, and vacuum adsorption, a single device can achieve the formation of flat tempered glass, as well as various complex shaped glasses such as single curved, hyperbolic, gradient bending, and unequal arc, widely meeting the needs of new energy vehicles, construction furniture, home appliances, and solar energy fields.
Technical Specifications
Convection Model Low E Glass Tempering Furnace For Furniture / Home Appliance
Product Service

Convection Model Low E Glass Tempering Furnace For Furniture / Home Appliance

Convection Model Low E Glass Tempering Furnace For Furniture / Home Appliance

Convection Model Low E Glass Tempering Furnace For Furniture / Home Appliance

Convection Model Low E Glass Tempering Furnace For Furniture / Home Appliance

Convection Model Low E Glass Tempering Furnace For Furniture / Home Appliance

Convection Model Low E Glass Tempering Furnace For Furniture / Home Appliance

Product Images

Convection Model Low E Glass Tempering Furnace For Furniture / Home Appliance

Convection Model Low E Glass Tempering Furnace For Furniture / Home Appliance

Convection Model Low E Glass Tempering Furnace For Furniture / Home Appliance

Convection Model Low E Glass Tempering Furnace For Furniture / Home Appliance
