2440x4220mm Glass Toughened Furnace Convection Model ISO9001 Certified
2440x4220mm Glass Toughened Furnace Convection Model ISO9001 Certified
Specifications
Model Number :
STG-AQ2442-4T
Glass thickness :
4-19mm
Certification :
CB,CE, RoHS, ISO9001
Glass size :
2440*4220mm
Price :
148000-198000USD/SET
Min Glass size :
100x300mm
Payment Terms :
T/T
Recommended transformer capacity :
≥630KVA
Delivery Time :
30 -45 working days
Guarantee period :
ONE year for non worn-out parts and components.
Packaging Details :
Protective Film
Brand Name :
FOSHAN STAR
Place of Origin :
China
Name :
Glass Toughened Furnace
MOQ :
1
Model :
Convection
Description

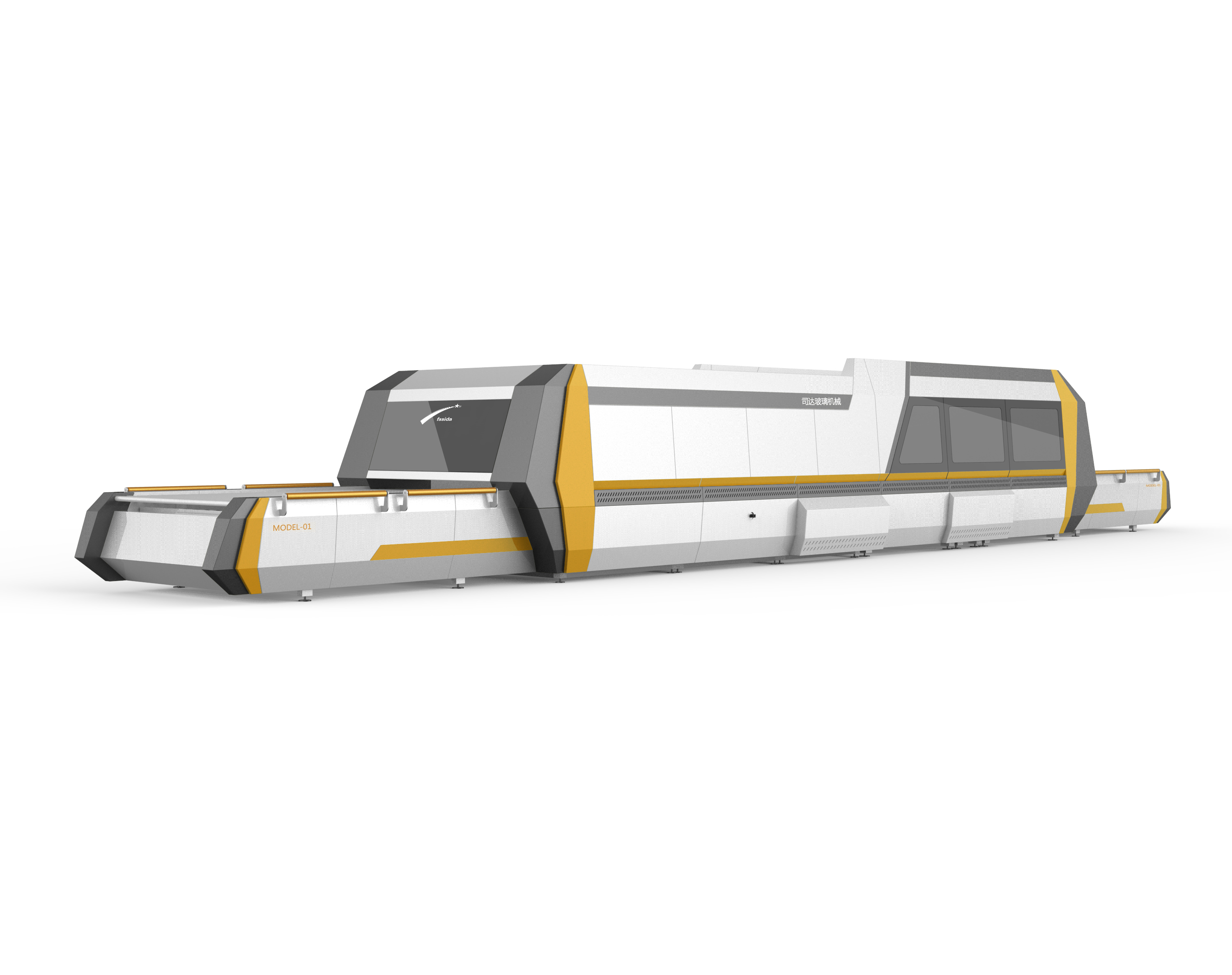

2440 x 4220mm Convection Model Glass Tempering Furnace
Machine introduction

Engineered as a single, turnkey production solution, this glass tempering furnace integrates an automatic infeed table, uniform heating system, powerful convection airflow, rapid quenching section, and smart unloading station, governed by one centralized control platform for flawless end-to-end coordination.

Product Advantages
  1. Fitted with a forced-air convection heating system and a finely tuned quenching and cooling stage, the furnace guarantees uniform heating and fast, even cooling, yielding tempered glass with stable quality and a high yield rate.

  2. The machine is extensively employed to produce tempered glass for furniture, household appliances, architectural glazing, and other applications, making it a productive and flexible solution for glass fabricators.

Suitable glass sorts
  • Tinted glass
  • Patterned glass
  • Silk screen printing glass
  • Clear float glass
  • Sandblasting glass
  • Low e glass(single silver, two layers silver)
Supply Scope
  • --Loading table
  • --Heating section(furnace) with forced convection system
  • --Quenching and Cooling section
  • --Unloading table
  • --Blower system
  • --Long-distance trouble maintenance
Technical Specifications
Model STG-AQ2436-4T
Flat Glass size Max loading area 2440x 4220mm
Max glass size 2440 X 4220mm
Min Glass size 100x300mm
Glass thickness range 4 -19mm
Power Recommended transformer capacity ≥630KVA
Heating power: 550KW
Blower: 315KW, 105KW.frequency inverters controlled
Heating zone 90 Heating zone. 45 heating zone on the top and 45 heating zone at bottom
Vortex convection fan (variable frequency control) 15kw
Ceramic roller Diameter :85mm
Number :45 PCS
Space between two ceramic rollers :120MM
Quality Standard ANSI Z97.1-2004,
Finished product rate ≥ 98%
Installation period (approximately,) 15 working days
Commissioning period (approximately) 7 working days
Training period (approximately) 1 ( one ) working week
Guarantee period ONE year for non worn-out parts and components.
Product Service

2440x4220mm Glass Toughened Furnace Convection Model ISO9001 Certified

2440x4220mm Glass Toughened Furnace Convection Model ISO9001 Certified

2440x4220mm Glass Toughened Furnace Convection Model ISO9001 Certified

2440x4220mm Glass Toughened Furnace Convection Model ISO9001 Certified

2440x4220mm Glass Toughened Furnace Convection Model ISO9001 Certified

2440x4220mm Glass Toughened Furnace Convection Model ISO9001 Certified

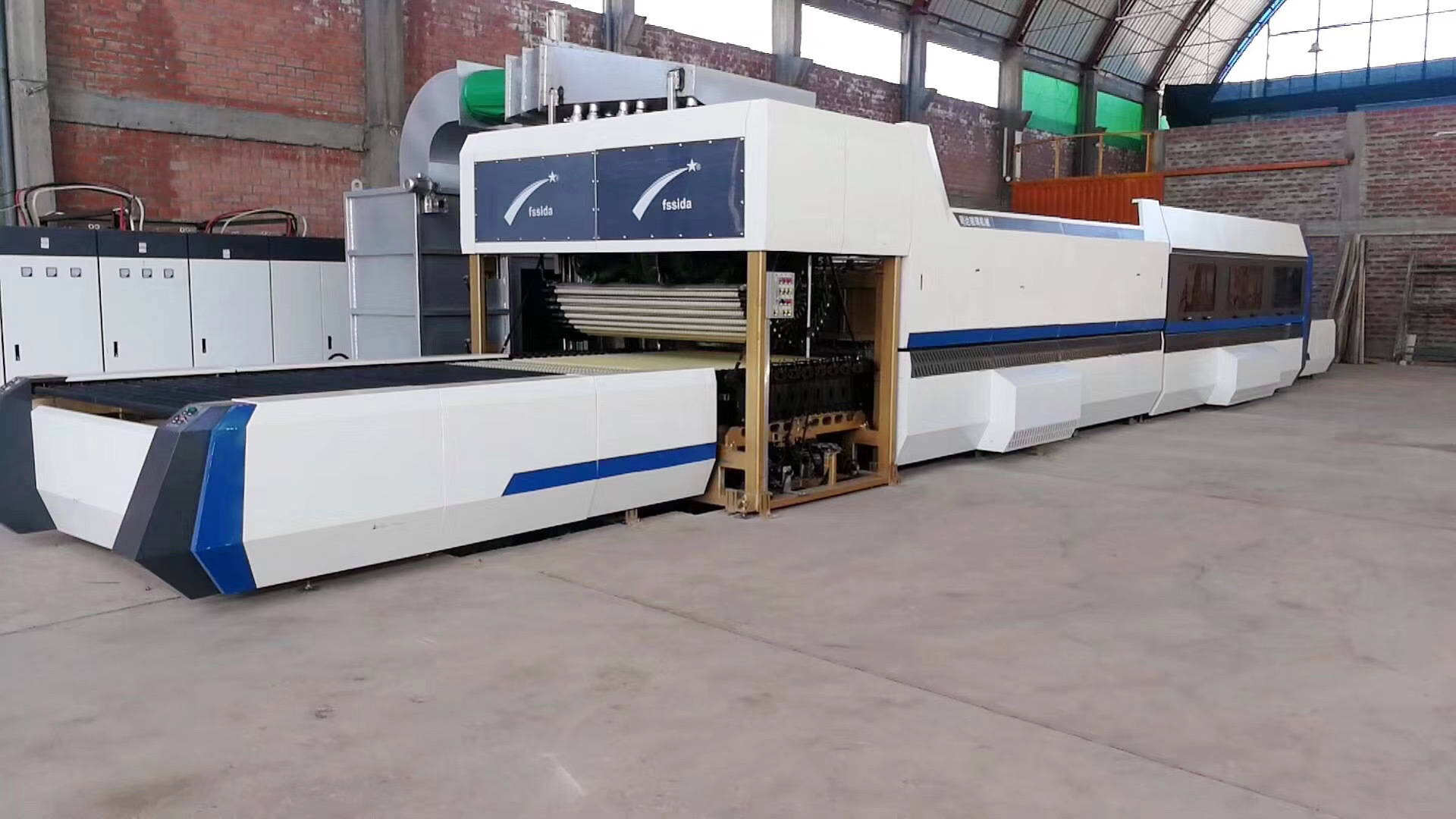

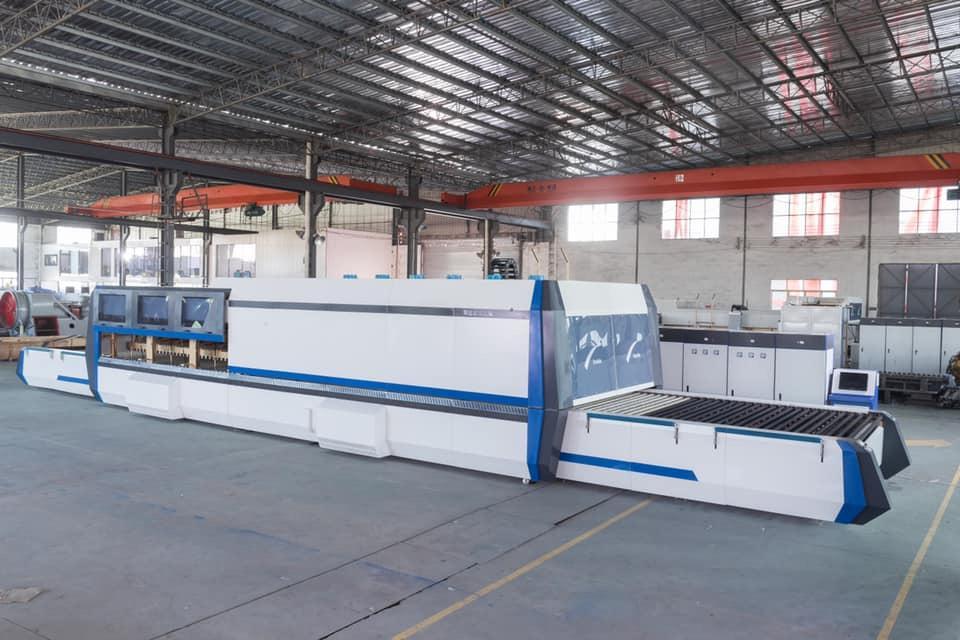

Machine Images

2440x4220mm Glass Toughened Furnace Convection Model ISO9001 Certified

2440x4220mm Glass Toughened Furnace Convection Model ISO9001 Certified

2440x4220mm Glass Toughened Furnace Convection Model ISO9001 Certified

2440x4220mm Glass Toughened Furnace Convection Model ISO9001 Certified
