Precision Processing Tempering Glass Machine 200KW Industrial Glass Toughened Machine
Precision Processing Tempering Glass Machine 200KW Industrial Glass Toughened Machine
Precision Processing Tempering Glass Machine 200KW Industrial Glass Toughened Machine
Precision Processing Tempering Glass Machine 200KW Industrial Glass Toughened Machine
Specifications
Supply Ability :
15Set each month
Name :
Tempering Glass Machine
Certification :
CE
Max loading area :
1800 x 3000mm
Price :
$98000-$120000/Set
Packaging Details :
protective fim
Power :
200KW
Payment Terms :
L/C,T/T
transformer capacity :
≥550KVA
Place of Origin :
CHINA
Min Glass size :
200x300mm
MOQ :
1
Glass thickness range :
4-19mm
Delivery Time :
90 days
Brand Name :
FSSIDA
Model :
STG-AQ1830
Description

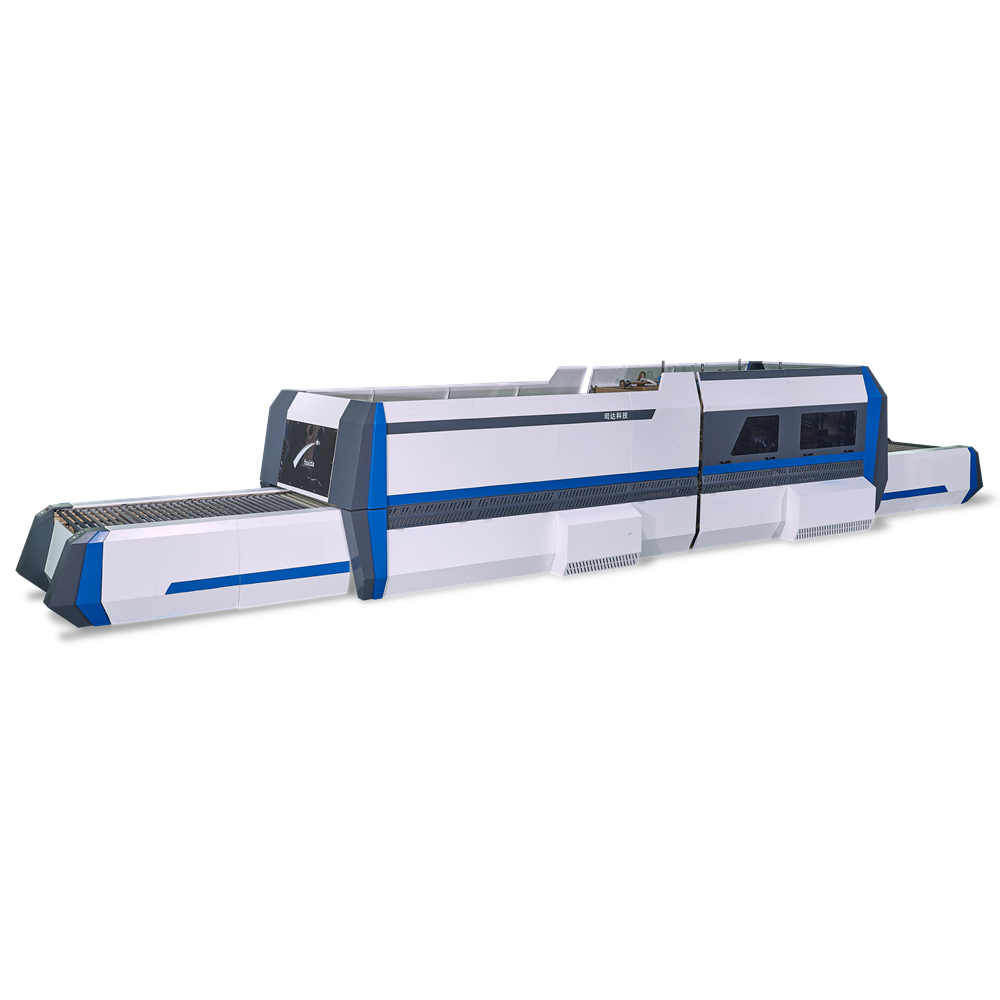

Precision Processing Tempering Furnace, Industrial Glass Tempering Furnace
Product Description
The furnace includes loading table, heating system, Top Vortex fan forced convection system. quenching and cooling section, unloading table, and control system. It is used to manufacture glass for furniture, home appliance, architecture glass, etc.
Product Features
1. Accurate heating and temperature control
The equipment is equipped with high-precision infrared sensors and dynamic algorithms, which can intelligently control the temperature of the furnace, abandoning the traditional waste mode of "higher than lower", ensuring uniform heating of the glass, effectively reducing optical deformation, ripple color difference, and furnace explosion phenomenon.
2. Efficient cooling and wind pressure system
The air cooling system of the tempered section directly determines the stress uniformity and flatness of the glass. The advanced tempering furnace adopts equal pressure tempering technology and customized formed air grilles to ensure consistent internal stress of tempered glass. For ultra-thin or special glass, some equipment adopts a dual fan through structure (combining high-pressure and low-pressure fans), which significantly improves the flatness of the glass while saving energy.
3. Processing compatibility and multifunctionality
Modern tempering furnaces have strong material compatibility, not only capable of processing ordinary white glass and ultra white glass, but also capable of high-quality tempering of online/offline Low-E glass, silk screen glass, embossed glass, and colored glass. In terms of morphological processing, through technologies such as flat bending bidirectional design, servo transmission, and vacuum adsorption, a single device can achieve the formation of flat tempered glass, as well as various complex shaped glasses such as single curved, hyperbolic, gradient bending, and unequal arc, widely meeting the needs of new energy vehicles, construction furniture, home appliances, and solar energy fields.
Technical Specifications
Model STG-AQ1830
Max loading area 1800 x 3000mm
Min Glass size 200x300mm
Glass thickness range 4-19mm
Power 200KW
transformer capacity ≥550KVA
Product Service

Precision Processing Tempering Glass Machine 200KW Industrial Glass Toughened Machine

Precision Processing Tempering Glass Machine 200KW Industrial Glass Toughened Machine

Precision Processing Tempering Glass Machine 200KW Industrial Glass Toughened Machine

Precision Processing Tempering Glass Machine 200KW Industrial Glass Toughened Machine

Precision Processing Tempering Glass Machine 200KW Industrial Glass Toughened Machine

Precision Processing Tempering Glass Machine 200KW Industrial Glass Toughened Machine

Product Images

Precision Processing Tempering Glass Machine 200KW Industrial Glass Toughened Machine

Precision Processing Tempering Glass Machine 200KW Industrial Glass Toughened Machine

Precision Processing Tempering Glass Machine 200KW Industrial Glass Toughened Machine

Precision Processing Tempering Glass Machine 200KW Industrial Glass Toughened Machine
