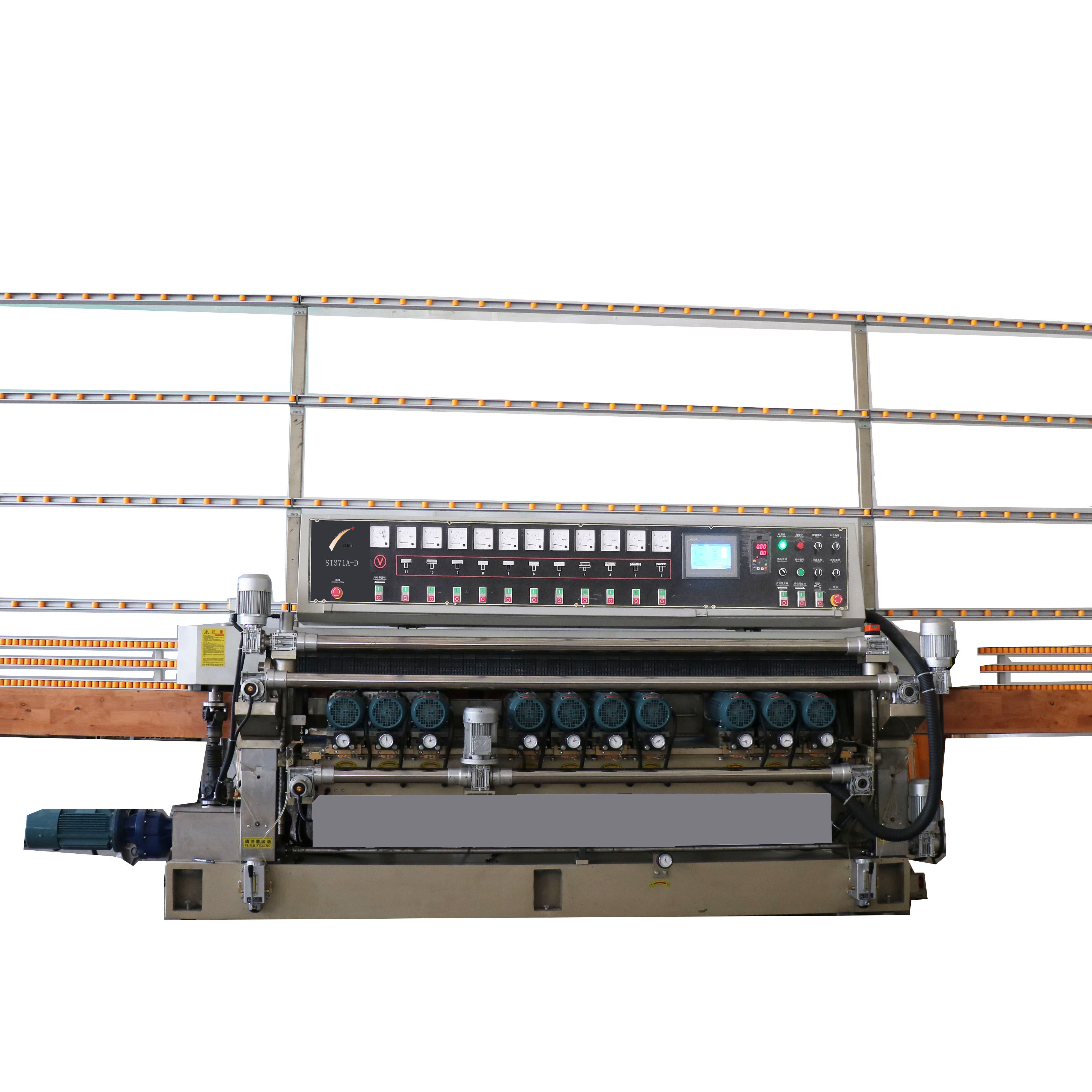

10 Motors Glass Grinding Polishing Machine With PLC Support Bottom Edge Grinding
10 Motors Glass Grinding Polishing Machine With PLC Support Bottom Edge Grinding
Specifications
Payment Terms :
T/T
Total power :
25KW
Model Number :
ST361C
Glass thickness :
4-12mm
MOQ :
1
Packaging Details :
Protective Film
Max. bevel width :
35mm
Core components :
PLC、Motors
Price :
22000-24000USD/SET
Speed :
0.6m-6m/min
Certification :
CB,CE, RoHS, ISO9001
Bevel angle :
0°-25°
Delivery Time :
30 working days
Weight :
5500KG
Brand Name :
FOSHAN STAR
Name :
Glass Grinding Polishing Machine
Place of Origin :
China
Min. glass size :
80mmX80mm
Description
10 Motors Glass Beveling Machine with PLC
Machine Introduction

This machine is for glass bevel‑edge grinding & polishing with bottom‑edge grinding function.

Product Highlight
  1. It is equipped with a chain‑drive conveyor with wear‑resistant rubber pads and No.40 forged steel frames. Timing‑belt loading/unloading, variable‑frequency main conveyor and high‑precision CDQC motors ensure stable operation.
  2. The combined chain and timing‑belt conveying system guarantees steady glass transport. Variable‑speed control and CDQC high‑precision motors effectively minimize vibration for uniform grinding quality.
  3. Boasting advanced structure and high machining precision, the machine is easy to operate and requires minimal maintenance.
Parameters
Spindles 10
Working speed 0.6m-6m/min
Min glass size 80*80mm
Glass thickness 4-12mm
Max glass size 3000*3000mm
Bevel angle 0° - 25°
Max bevel width 35mm
Total Power 25KW
Machine dimension 7000*1300*1900mm
Weight 5500KG
Product Services

10 Motors Glass Grinding Polishing Machine With PLC Support Bottom Edge Grinding

10 Motors Glass Grinding Polishing Machine With PLC Support Bottom Edge Grinding

10 Motors Glass Grinding Polishing Machine With PLC Support Bottom Edge Grinding

10 Motors Glass Grinding Polishing Machine With PLC Support Bottom Edge Grinding

10 Motors Glass Grinding Polishing Machine With PLC Support Bottom Edge Grinding

10 Motors Glass Grinding Polishing Machine With PLC Support Bottom Edge Grinding

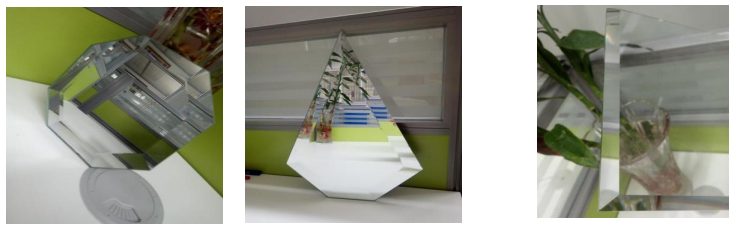

Machine Images

10 Motors Glass Grinding Polishing Machine With PLC Support Bottom Edge Grinding

10 Motors Glass Grinding Polishing Machine With PLC Support Bottom Edge Grinding
