9 Motors Glass Beveling Machine 6680*1300*1900mm For Glass Bevel Edge Grinding / Polishing
9 Motors Glass Beveling Machine 6680*1300*1900mm For Glass Bevel Edge Grinding / Polishing
Specifications
Model Number :
ST 261 E
Glass thickness :
4-12mm
MOQ :
1
Packaging Details :
Protective Film
Bevel angle :
0°-25°
Payment Terms :
T/T
Weight :
4000KG
Price :
18000-19000USD/SET
Total dimension :
6680*1300*1900mm
Certification :
CB,CE, RoHS, ISO9001
Max glass size :
3000*3000mm
Place of Origin :
CHINA
Min glass size :
80*80mm
Delivery Time :
30 -45 working days
Brand Name :
FOSHAN STAR
Name :
Glass Beveling Machine
Description

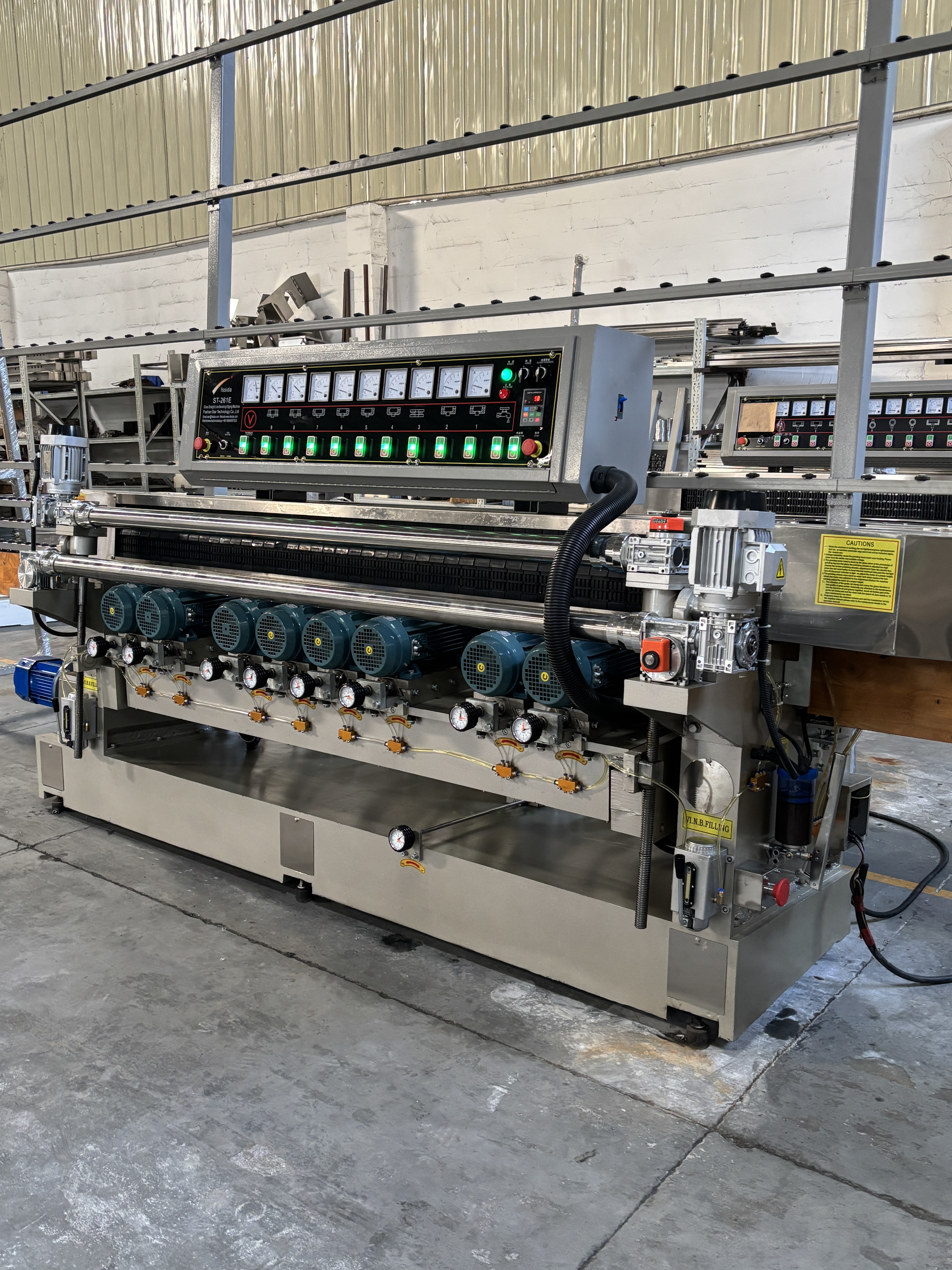

9 Motors Glass Beveling Machine
This machine is specially developed for glass bevel-edge grinding and polishing, and it is also capable of bottom-edge grinding.
Product Advantages
  • Its conveyor system adopts a chain drive structure fitted with wear-resistant rubber pads and No.40 forged steel frames. Timing belts are installed on the loading and unloading arms for stable glass transportation.
  • The main conveyor is equipped with frequency-variable speed control. Each grinding spindle is independently driven by a high-precision CDQC motor, which provides sufficient torque, smooth operation and stable power output to ensure consistent grinding quality and high-precision edge finishing.
  • Featuring an advanced mechanical structure, the machine delivers high processing precision. It also boasts simple operation and convenient daily maintenance.
Technical Specifications
Spindles 9
Working speed 0.6m-6m/min
Max. bevel width 30mm
Min glass size 80*80mm
Max glass size 3000*3000mm
Glass thickness 4-12mm
Bevel angle 0° - 25°
Total power 21 KW
Total dimension 6680*1300*1900mm
Weight 4000KG
