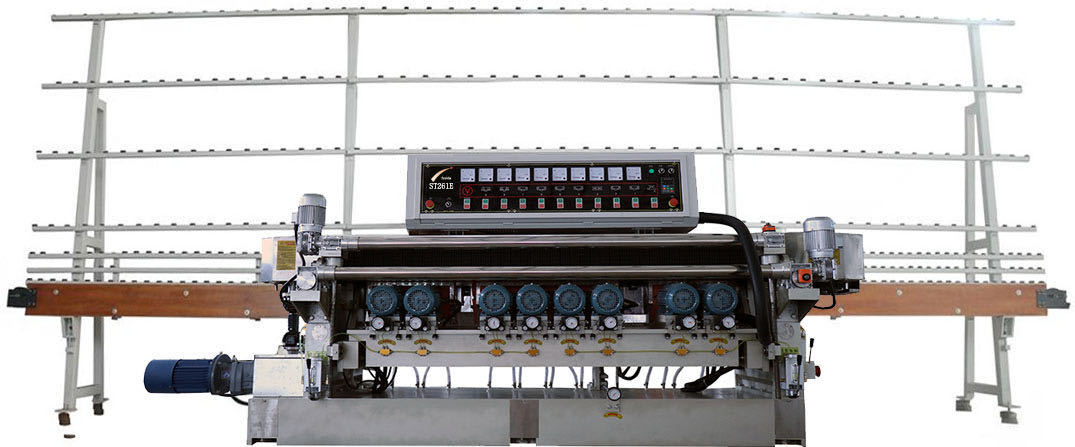

Automatic Glass Beveling Machine 9 Wheels Engine Gearbox Easy Operation
Automatic Glass Beveling Machine 9 Wheels Engine Gearbox Easy Operation
Specifications
Place of Origin :
China
Wheels :
9
Payment Terms :
T/T
Max. bevel width :
30mm
Total power :
21kw
Delivery Time :
35
Min. glass size :
80mm*80mm*3mm
MOQ :
1
Working speed :
0.6-6.0m/min
Packaging Details :
Protective fim/Wooden Box
Glass thickness :
4-12mm
Price :
$17,500-$18500/SET
Bevel angle :
0°-25°
Machine size :
7100mm*1200mm*2600mm
Model Number :
ST-261E
Brand Name :
FoShan Star
Name :
Automatic Glass Beveling Machine
Description
Foshan Star ST- 261E Automatic Glass Beveling Machine Engine Gearbox With Easy Operation

The ST-261E is a high-power beveling machine engineered for precision glass edge processing. Powered by a robust 21KW drive system, it delivers consistent grinding and polishing results for glass thicknesses ranging from 4mm to 12mm. With a machine size of 7100 x 1200 x 2600 mm and the ability to process pieces as small as 80x80x3mm, this machine is an ideal solution for workshops requiring high-quality edge finishing with operational flexibility.

Key Features
  • High-Power Drive System: Utilizes a robust 21KW power configuration to ensure stable torque and superior edge quality across various thicknesses.
  • Wide Processing Capability: Accommodates glass thicknesses from 4mm to 12mm and handles minimum dimensions of 80x80x3mm, suitable for diverse architectural and furniture applications.
  • Variable Speed Control: Offers an adjustable working speed of 0.6-6.0m/min, allowing operators to optimize throughput based on specific finishing requirements.
Technical Specifications
Parameter Specification Parameter Specification
Glass Thickness 4 ~ 12 mm Wheels 9
Working Speed 0.6 ~ 6.0 m/min Bevel Angle 0° - 25°
Min. Glass Size 80 x 80 x 3 mm Max. Bevel Width 30 mm
Total Power 21 KW Machine Dimensions 7100 x 1200 x 2600 mm
Glass Sample Results

Automatic Glass Beveling Machine 9 Wheels Engine Gearbox Easy Operation

Automatic Glass Beveling Machine 9 Wheels Engine Gearbox Easy Operation

Automatic Glass Beveling Machine 9 Wheels Engine Gearbox Easy Operation

Automatic Glass Beveling Machine 9 Wheels Engine Gearbox Easy Operation

Automatic Glass Beveling Machine 9 Wheels Engine Gearbox Easy Operation

Automatic Glass Beveling Machine 9 Wheels Engine Gearbox Easy Operation
