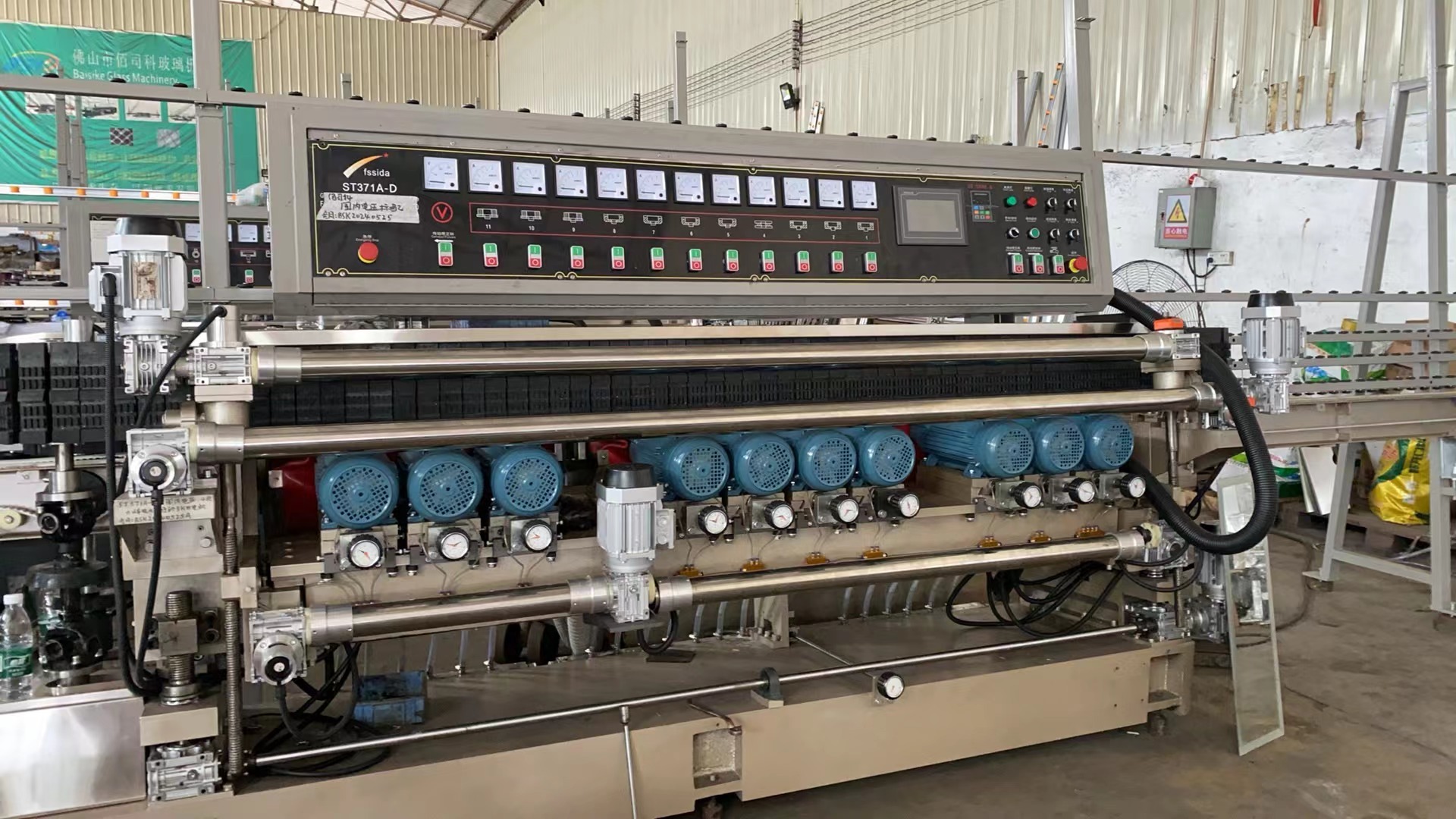

11 Spindle Glass Beveling Machine 0.6m-6m/min With PLC / Lifting Function
11 Spindle Glass Beveling Machine 0.6m-6m/min With PLC / Lifting Function
Specifications
Model Number :
ST 371 A - D
Max glass size :
3000*3000mm
MOQ :
1
Packaging Details :
Protective Film
Bevel angle :
0°-25°
Price :
25100-26000USD/SET
Total dimension :
6680*1300*1900mm
Certification :
CB,CE, RoHS, ISO9001
Min glass size :
80*80mm
Payment Terms :
T/T
Glass thickness :
4-12mm
Delivery Time :
30 -45 working days
Brand Name :
FOSHAN STAR
Name :
Glass Beveling Machine
Place of Origin :
CHINA
Weight :
4000KG
Description
11-Spindle Glass Beveling Machine with PLC and Lifting Function
Product Overview

This 11-spindle glass beveling machine is professionally built for glass bevel-edge grinding and polishing. It adopts timing-belt conveying system and front-guide-rail lifting structure, supporting the machining of small-size glass workpieces with a minimum dimension of 25×25 mm.

Product Advantages
  • PLC control supports fast parameter setting. The front-guide-rail lifting structure enables simple adjustments, especially for small-size glass, for quick production changeover.
  • High-precision performance: bevel angle tolerance ±0.15°, edge straightness ≤0.08 mm/m, surface roughness Ra≤0.8 μm. It produces chip-free, uniform mirror-finish bevels even on tiny workpieces.
Technical Specifications
Spindles 11
Working speed 0.6m-6m/min
Max. bevel width 50mm
Min glass size 25×25mm
Max glass size 2000×3000mm
Glass thickness 3-12mm
Bevel angle 0° - 25°
Total power 25 KW
Total dimension 7100×1300×2600mm
Weight 5000 KG
Product Services

11 Spindle Glass Beveling Machine 0.6m-6m/min With PLC / Lifting Function

11 Spindle Glass Beveling Machine 0.6m-6m/min With PLC / Lifting Function

11 Spindle Glass Beveling Machine 0.6m-6m/min With PLC / Lifting Function

11 Spindle Glass Beveling Machine 0.6m-6m/min With PLC / Lifting Function

11 Spindle Glass Beveling Machine 0.6m-6m/min With PLC / Lifting Function

11 Spindle Glass Beveling Machine 0.6m-6m/min With PLC / Lifting Function

Machine Images

11 Spindle Glass Beveling Machine 0.6m-6m/min With PLC / Lifting Function

11 Spindle Glass Beveling Machine 0.6m-6m/min With PLC / Lifting Function
