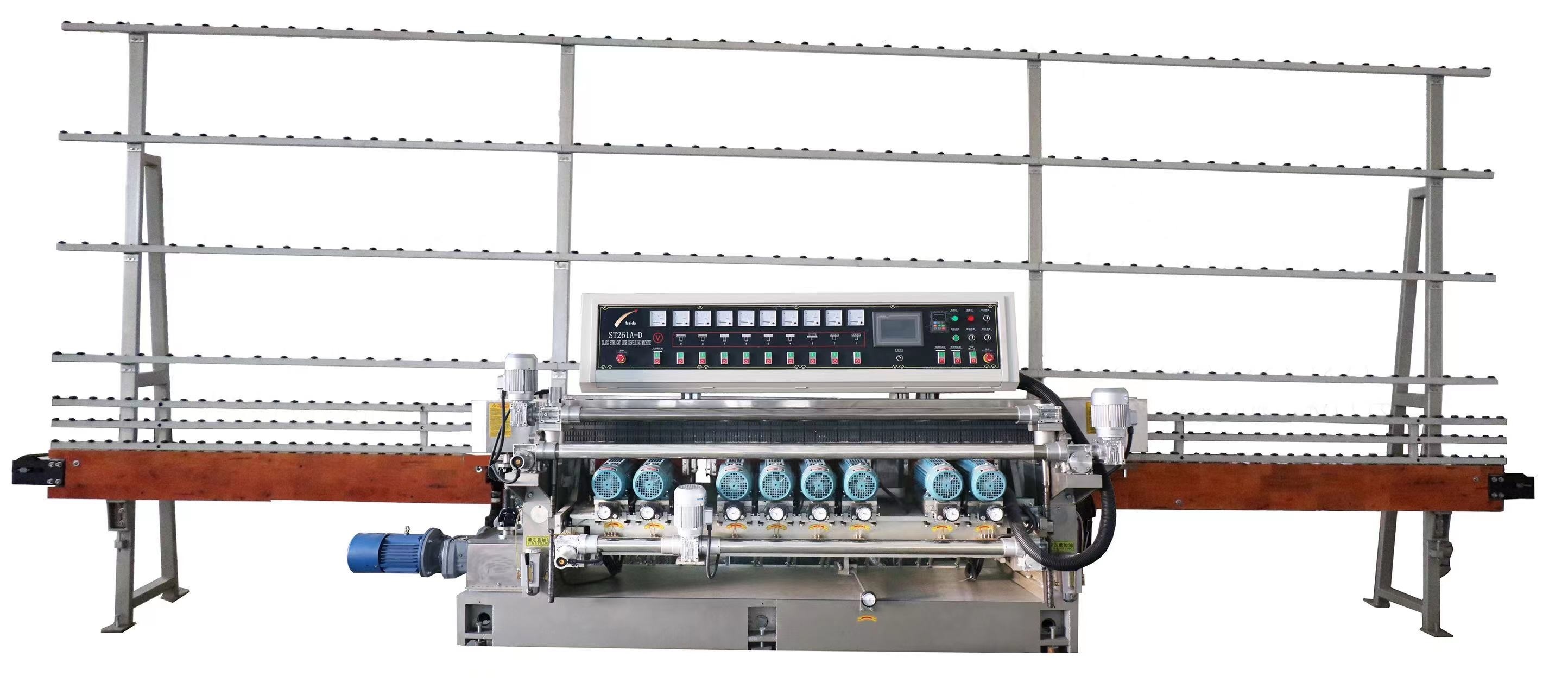

3000x3000mm Glass Beveling Machine 10 Heads With PLC Control System
3000x3000mm Glass Beveling Machine 10 Heads With PLC Control System
3000x3000mm Glass Beveling Machine 10 Heads With PLC Control System
3000x3000mm Glass Beveling Machine 10 Heads With PLC Control System
Specifications
Model Number :
ST-261C
Spindles :
10 heads
MOQ :
1SET
Delivery Time :
15-35 Working days
Max bevel width :
50mm
Price :
11000-22500USD/SET
Max glass size :
3000*3000mm
Certification :
CE
Speed range :
0.6m-6m/min
Payment Terms :
L/C,T/T,Western Union
Bevel angle :
0°～25°
Place of Origin :
CHINA
Glass thickness :
3mm～19mm
Supply Ability :
20Set each month
Brand Name :
Foshan star
Name :
Glass Beveling Machine
Packaging Details :
protective fim
Description
10 Heads Glass Beveling Machine with PLC Control System for 3000x3000mm Max Glass Size
Machine Overview

This professional glass beveling edging machine is engineered for precision grinding and polishing of glass bevel edges, including bottom edge grinding. The conveyor system utilizes a chain transmission mechanism with anti-friction rubber pads reinforced by sheet steel bones, ensuring stable glass movement and high working precision.

Timing belt transfer provides stable transportation, while grinding wheels are powered by high-precision CDQC motors. The machine offers easy operation and exceptional durability for industrial applications.

Product Features

1. High functional integration, one-time processing and forming

The bevel machine integrates multiple processes such as rough grinding, precision grinding, polishing, and edge trimming, enabling one-time continuous processing. It features a wide adjustable processing angle range (typically adjustable between 3° and 45°) and variable bevel width, making it highly suitable for various applications including furniture glass, architectural glass, decorative glass, and frameless glass.

2. Solid mechanical structure, smooth operation with high precision

The core components are made of high-quality materials: key load-bearing components such as the base and front and rear beams are often made of thick cast iron and undergo aging annealing or quenching heat treatment, which has excellent rigidity, durability, wear resistance, and is not easily deformed.

Advanced transmission system: The main transmission often uses stepless reducers or variable frequency motors for speed regulation, combined with front and rear clamping plates (using special telescopic clamping plates or forged thick steel plates), to ensure smooth and vibration free transmission, low noise, and effective guarantee of grinding accuracy.


Innovative structural design: In recent years, the front beam lifting and chamfering machine has been launched, which allows for flexible adjustment of the height of the front beam frame according to the thickness of the glass. This not only enhances the versatility of the equipment, but also easily meets the processing needs of ultra small pieces of glass and ultra wide beveled edges.

Technical Specifications

Spindles 10 heads
Speed range 0.6m - 6m/min
Minimum glass size 80mm * 80mm
Glass thickness 3mm - 19mm
Maximum bevel width 50mm
Maximum glass size 3000mm * 3000mm
Bevel angle 0° - 25°
Total power 25KW (380V 50HZ, customizable)
Base dimensions 7m * 1.3m * 1.9m
Weight 5500kg
