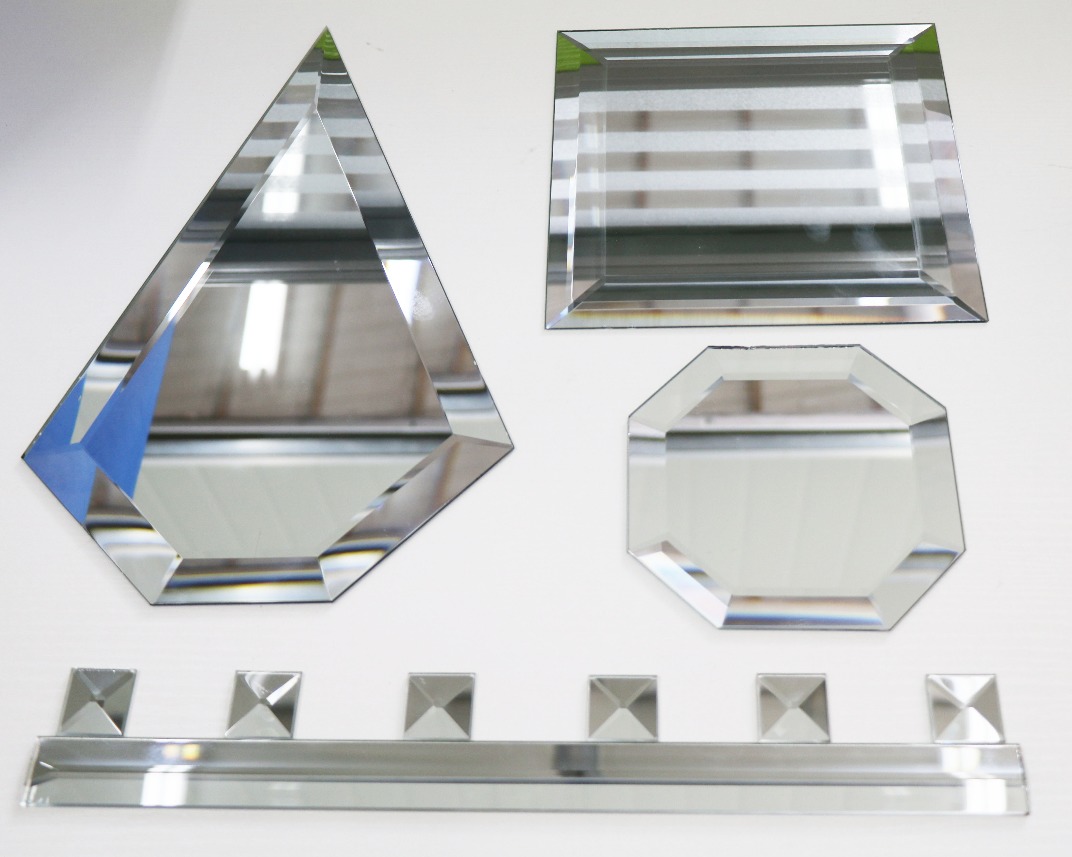

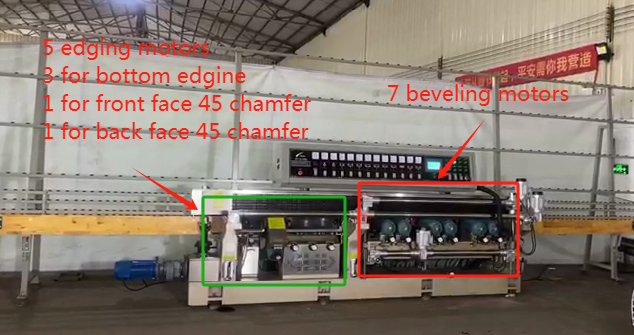

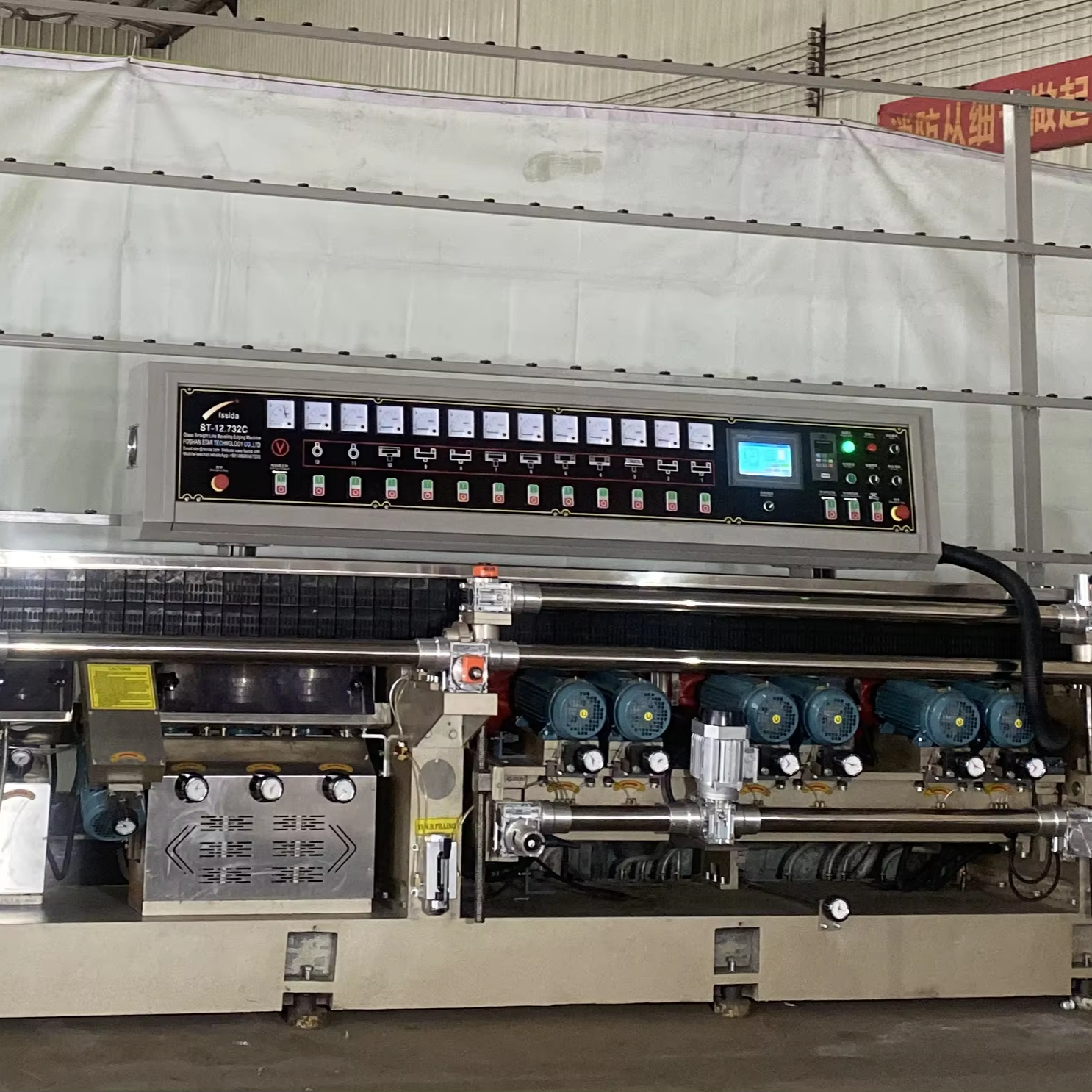

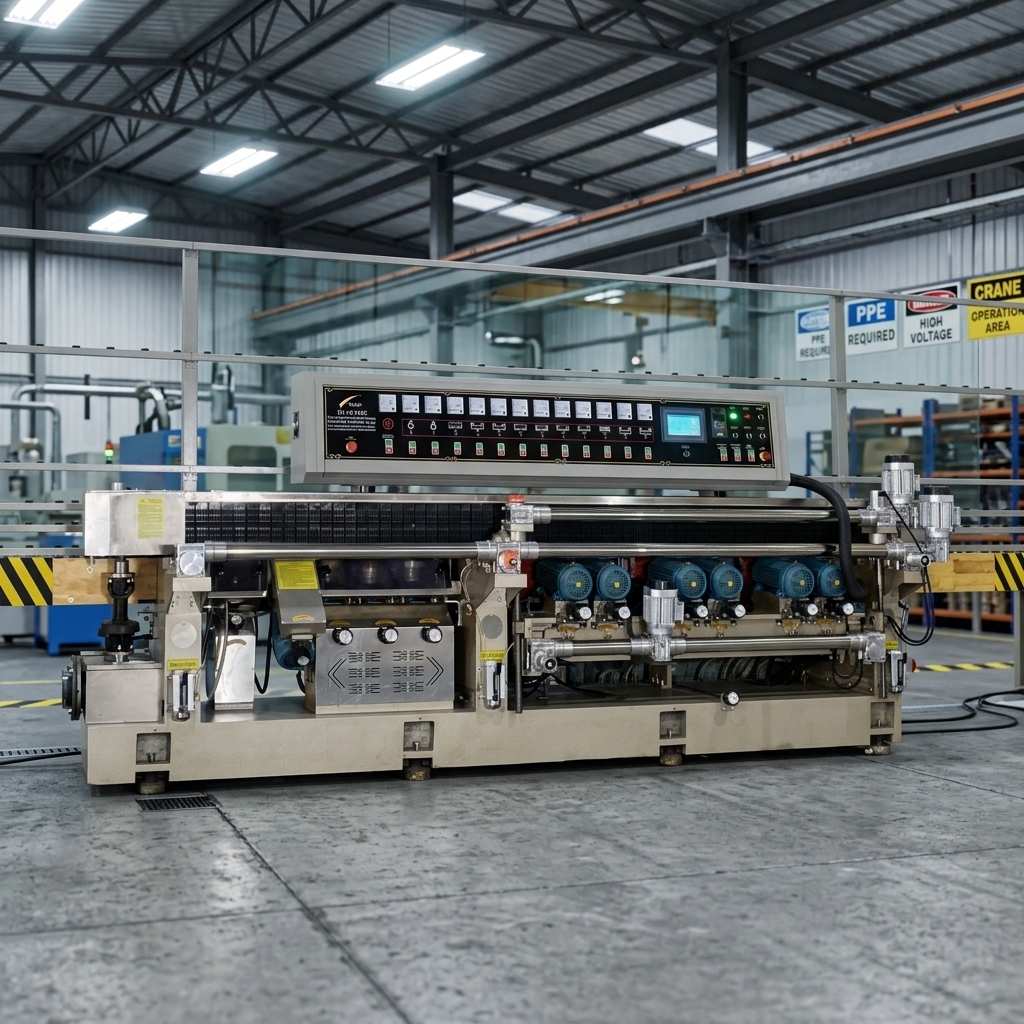

This machine is designed for grinding glass bevel edge,and also has the function of polishing machine. 7 wheels are used for front beveling 3-25 degree , ,3 wheels are use for bottom , 2 wheels for bottom 45 degree edging.Conveyors use big chain transmitting system, and anti-friction rubber pads with NO.40# forging sheet steel bone. This structure guarantee glass is stably moved. The working precision is high.
Timing belt transfer glass, which has a stable transportation.
Grinding wheels are driven by high precision CDQC motors.
This machine is easy to operate and have a durable function.

1.Spindles:12heads.
2.Weight:5500kg
3.Range of speed:0.6m-4m/min
4.Min. glass size:80mmX80mm
5.Glass thickness:4mm～12mm
6.Max. bevel width:35mm
7.Maximum glass size:2000*3000mm
8.Bevel angle:3°～25°
9.Total power:28KW (380V 50HZ ,or customer required)
10.Base dimension:7700mmX1210mmX2540mm

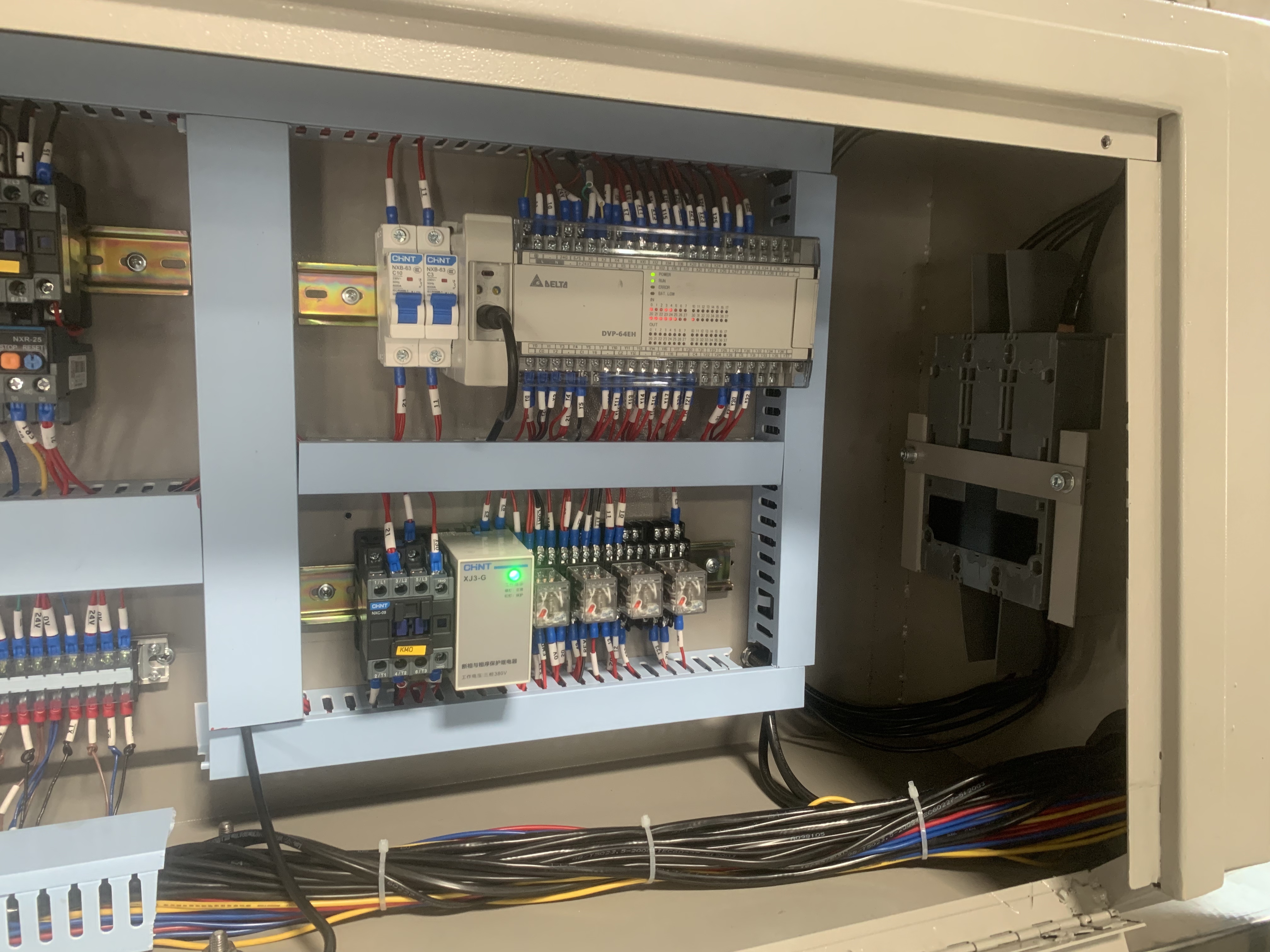

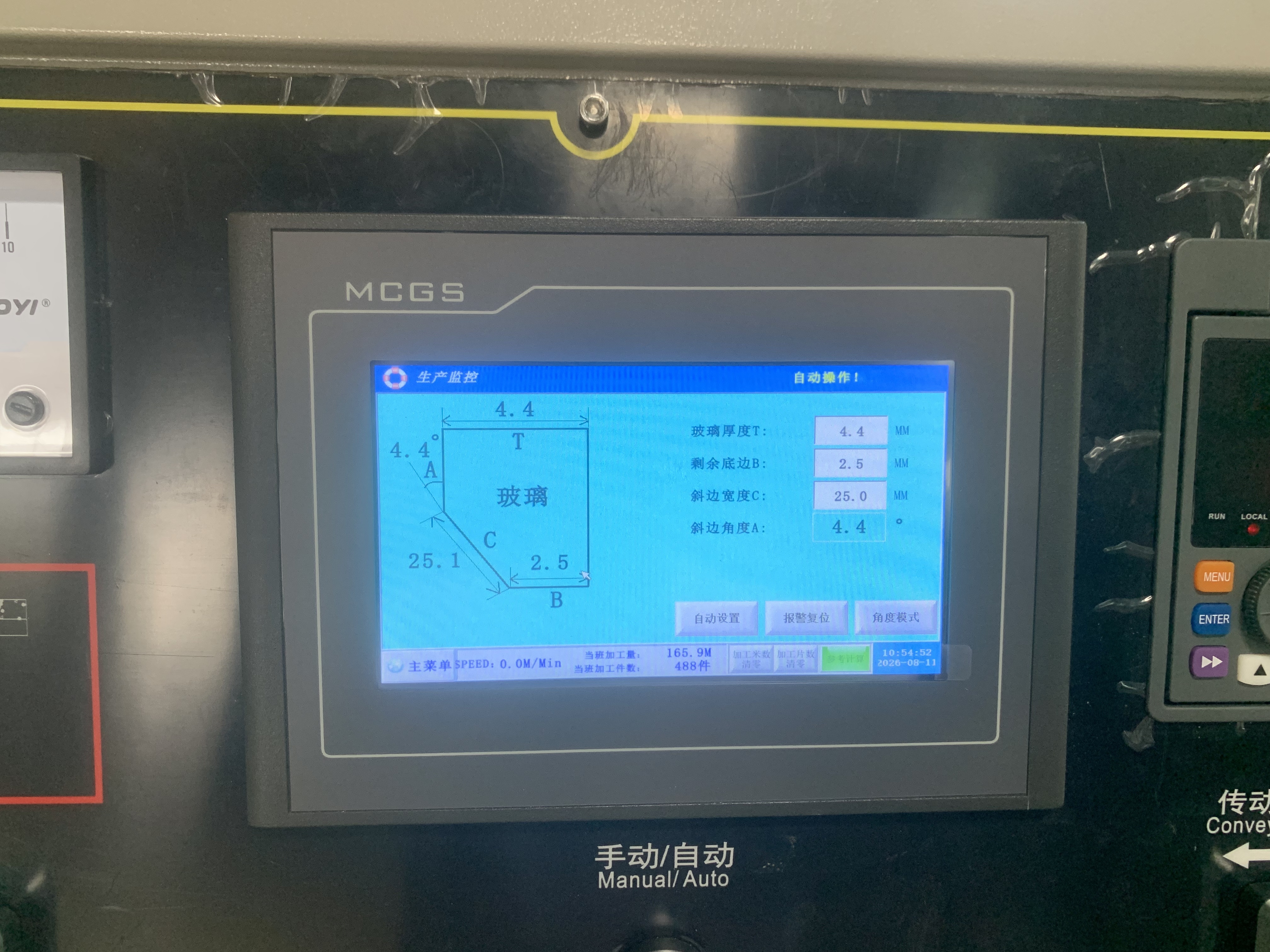

1.Adopt PLC control system.

2.Adopt manual filling function lubrication system.

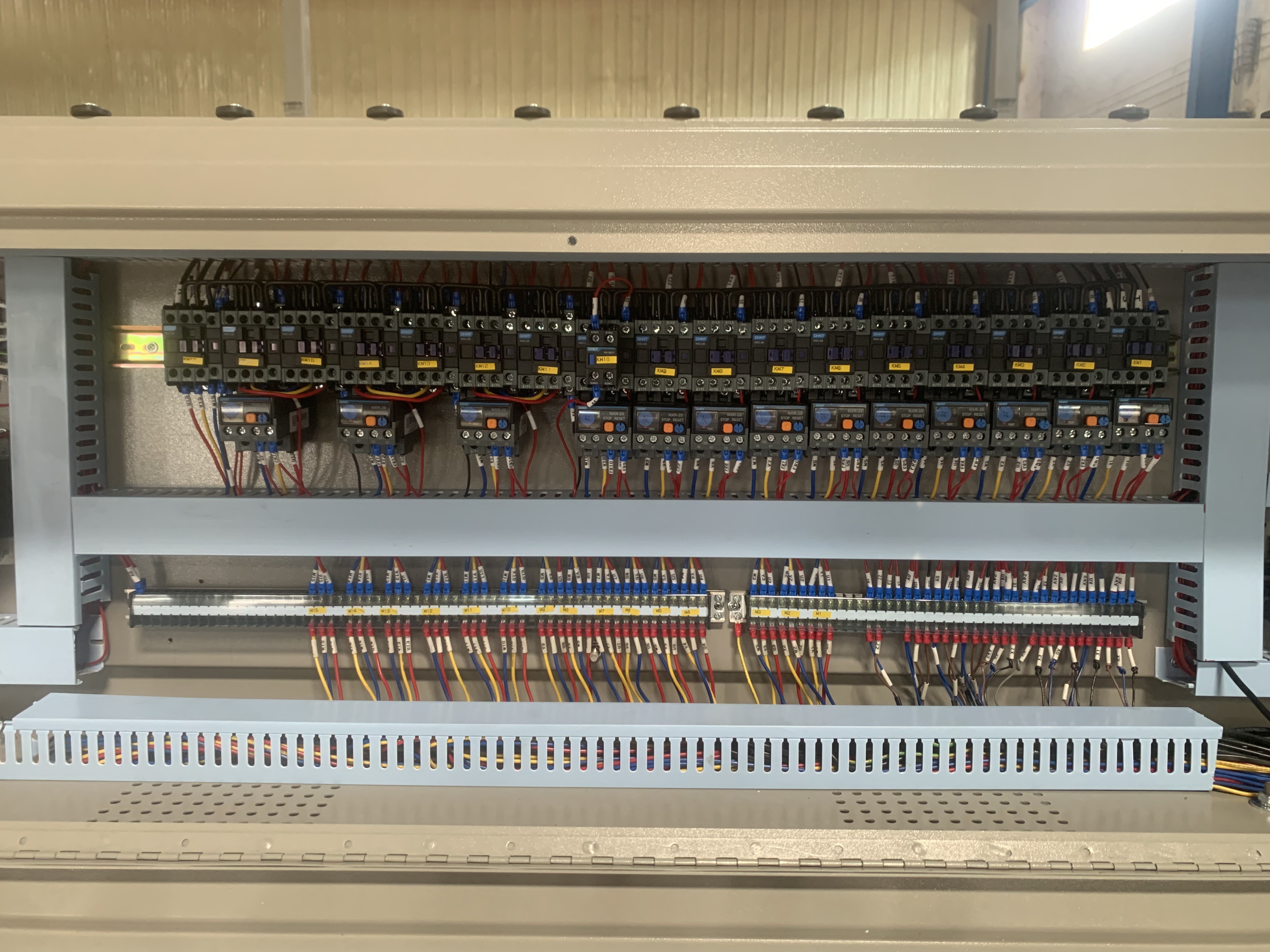

3.All motor adopt famous brand factory:CDQC

4.4 layer waterproof brush, easy to take replacement.

5. New design for the front rail, it is easy to replace the old screw axle which adjust glass thickness.

• Installation and Setup: Ensure installation on a stable, level surface in a clean environment following user manual instructions
• Operation: Use only for intended glass cutting purposes with appropriate safety gear (gloves, eye protection)
• Maintenance: Regular cleaning of cutting surfaces and components, lubrication of moving parts, and inspection/replacement of cutting wheels
• Troubleshooting: Consult user manual for issues like inaccurate cuts, unusual noises, or malfunctions
• Technical Support: Available guidance on installation, operation, and maintenance
• Warranty and Service: Limited warranty covering manufacturing defects with authorized service centers for repairs and replacement parts
