6033 CNC Auto Glass Cutting Line 160m/min With Optimization Software
6033 CNC Auto Glass Cutting Line 160m/min With Optimization Software
Specifications
Delivery Time :
35
Table surface panel :
High-density waterproof panel, roughness≤±0.20mm/m (Imported material)
Model Number :
ST - CNC - 6033
Max. glass size :
3300*6000mm
Price :
$39,000 - $39,500/SET
Max. speed :
160m/min
Payment Terms :
T/T
Air pressure :
0.6~0.8MPa
Place of Origin :
China
Thickness :
3~19mm
MOQ :
1
Dimensions (L*W*H) :
20980*4212*1300mm
Packaging Details :
Protective film
Brand Name :
FoShan Star
Name :
Auto Glass Cutting Line
Description

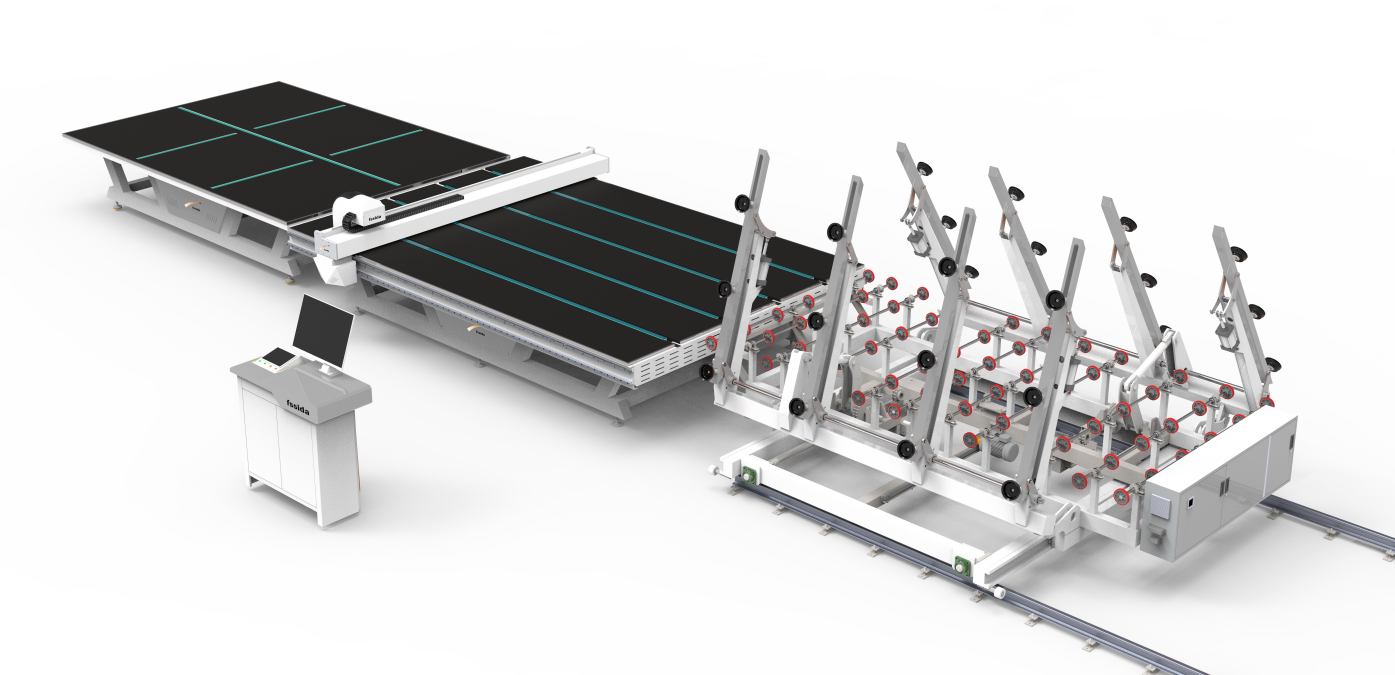

CNC Auto Glass Cutting Line ST-CNC-6033

The ST-CNC-6033 is a heavy-duty CNC glass cutting system engineered for large-format industrial processing. Designed to accommodate massive glass sheets up to 3300 x 6000 mm and thicknesses from 3 mm to 19 mm, this machine excels in high-volume manufacturing environments requiring precision and scale. Its optimized structural layout, measuring 20980 x 4212 x 1300 mm, balances expansive working capacity with efficient floor space utilization.

Performance Highlights

Engineered for maximum productivity and cutting accuracy, the ST-CNC-6133 integrates rapid motion dynamics with a robust support platform.

  • Rapid Processing Velocity: Achieving travel speeds of up to 160 m/min, the system minimizes idle time and maximizes output efficiency for large-scale production runs.
  • Precision Support Surface: The worktable features an imported high-density waterproof panel with a strict flatness tolerance of ≤ ±0.20 mm/m. This ensures optimal glass stability during the scoring process, reducing breakage rates and ensuring clean edges.
  • Consistent Pneumatic Control: Operating within a stable air pressure range of 0.6–0.8 MPa, the cutting mechanism maintains uniform force application, guaranteeing consistent scoring depth across the entire 6-meter span.
Technical Specifications
Item Specification
Max. Glass Size 3300 x 6100 mm
Glass Thickness 3 - 19 mm
Machine Dimensions (L x W x H) 20980 x 4212 x 1300 mm
Max. Speed 160 m/min
Air Pressure 0.6 - 0.8 MPa
Table Surface Panel High-density waterproof panel (Imported), Roughness ≤ ±0.20 mm/m
Glass Sample Results

6033 CNC Auto Glass Cutting Line 160m/min With Optimization Software

6033 CNC Auto Glass Cutting Line 160m/min With Optimization Software

6033 CNC Auto Glass Cutting Line 160m/min With Optimization Software

6033 CNC Auto Glass Cutting Line 160m/min With Optimization Software

6033 CNC Auto Glass Cutting Line 160m/min With Optimization Software

6033 CNC Auto Glass Cutting Line 160m/min With Optimization Software
