15KW Automatic CNC Glass Cutting Machine 160m/min With Two Tables
15KW Automatic CNC Glass Cutting Machine 160m/min With Two Tables
Specifications
Model Number :
ST-QG3826
Max glass size :
3660*2440mm
Price :
19700-21500USD/SET
Max speed :
160m/min
Certification :
CB,CE, RoHS, ISO9001
Glass thickness :
3-18mm
MOQ :
1
Packaging Details :
Protective Film
Air pressure :
0.6-0.8MPa
Delivery Time :
30 working days
Brand Name :
FOSHAN STAR
Name :
Automatic CNC Glass Cutting Machine
Place of Origin :
China
Installed Power :
15KW
Payment Terms :
T/T
Machine size :
7350*3100*1300mm
Description
Automatic CNC Glass Cutting Machine with Two Tables
Machine Overview

This ST‑QG3826 integrated machine consists of a loading‑cutting unit and an air‑floating breaking table. It covers full‑process automation: auto‑loading, intelligent nesting, auto‑labeling, cutting and material conveying, completing the whole glass‑cutting workflow automatically.

Product Highlight

  1. It is fitted with motor‑driven traveling wheels with remote‑control movement, making on‑site position adjustment quick and convenient. The machine supports both straight‑line and special‑shape cutting to satisfy diversified processing requirements.
  2. Wide compatibility enables it to process architectural glass, furniture glass, craft glass, decorative glass, cabinet glass, mirror glass and other common glass types, suitable for a wide range of glass‑fabrication applications.
Technical Specifications
Parameter Value
Maximum Glass Size 3660 * 2440 mm
Glass Thickness Range 3-18 mm
Installed Power 15 KW
Compressed Air Requirements 0.6-0.8 Mpa, exhaust volume 0.6-1 m³/min
Cutting Head Speed 0-200 M/min (adjustable)
Product Services

15KW Automatic CNC Glass Cutting Machine 160m/min With Two Tables

15KW Automatic CNC Glass Cutting Machine 160m/min With Two Tables

15KW Automatic CNC Glass Cutting Machine 160m/min With Two Tables

15KW Automatic CNC Glass Cutting Machine 160m/min With Two Tables

15KW Automatic CNC Glass Cutting Machine 160m/min With Two Tables

15KW Automatic CNC Glass Cutting Machine 160m/min With Two Tables

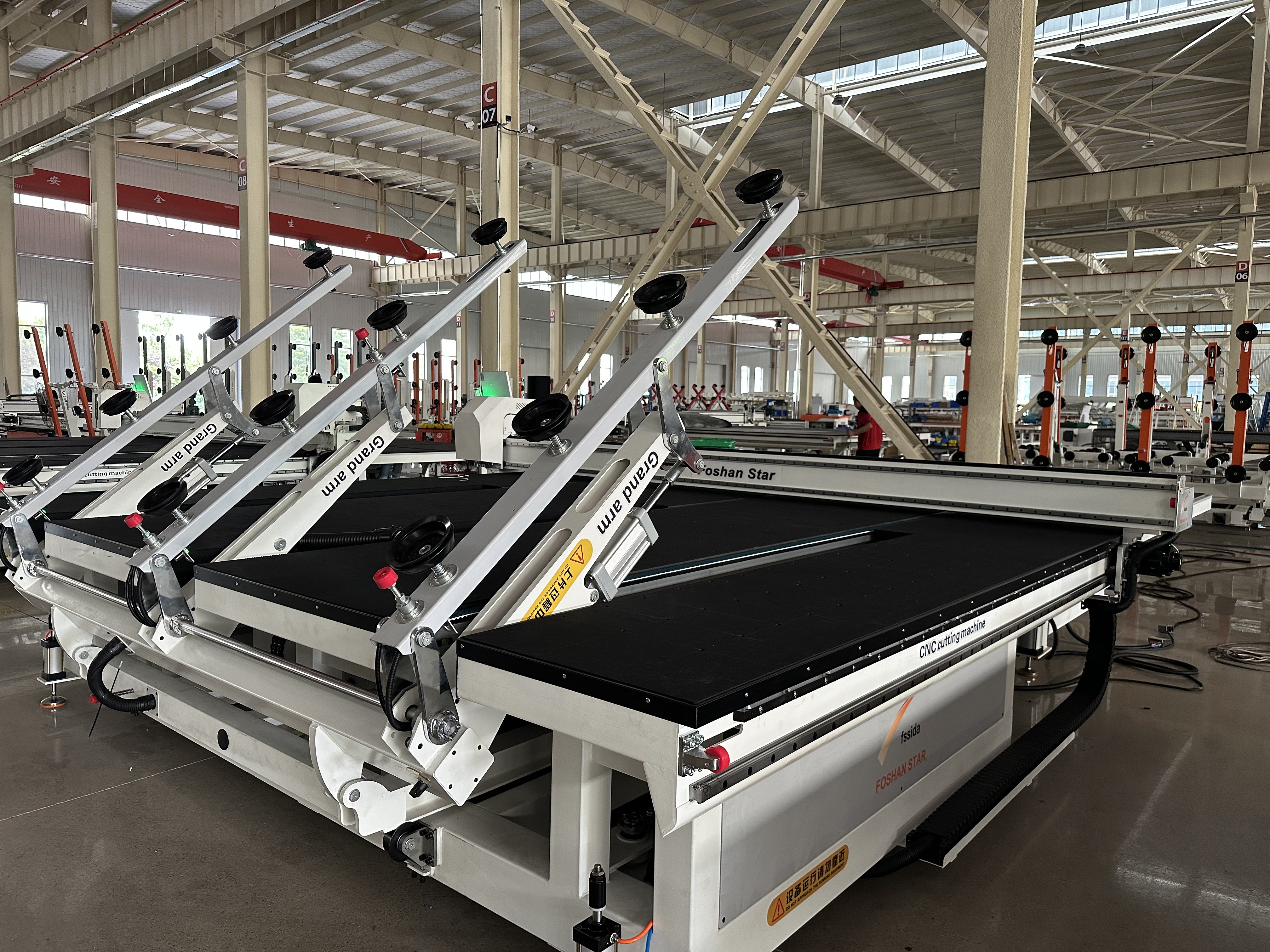

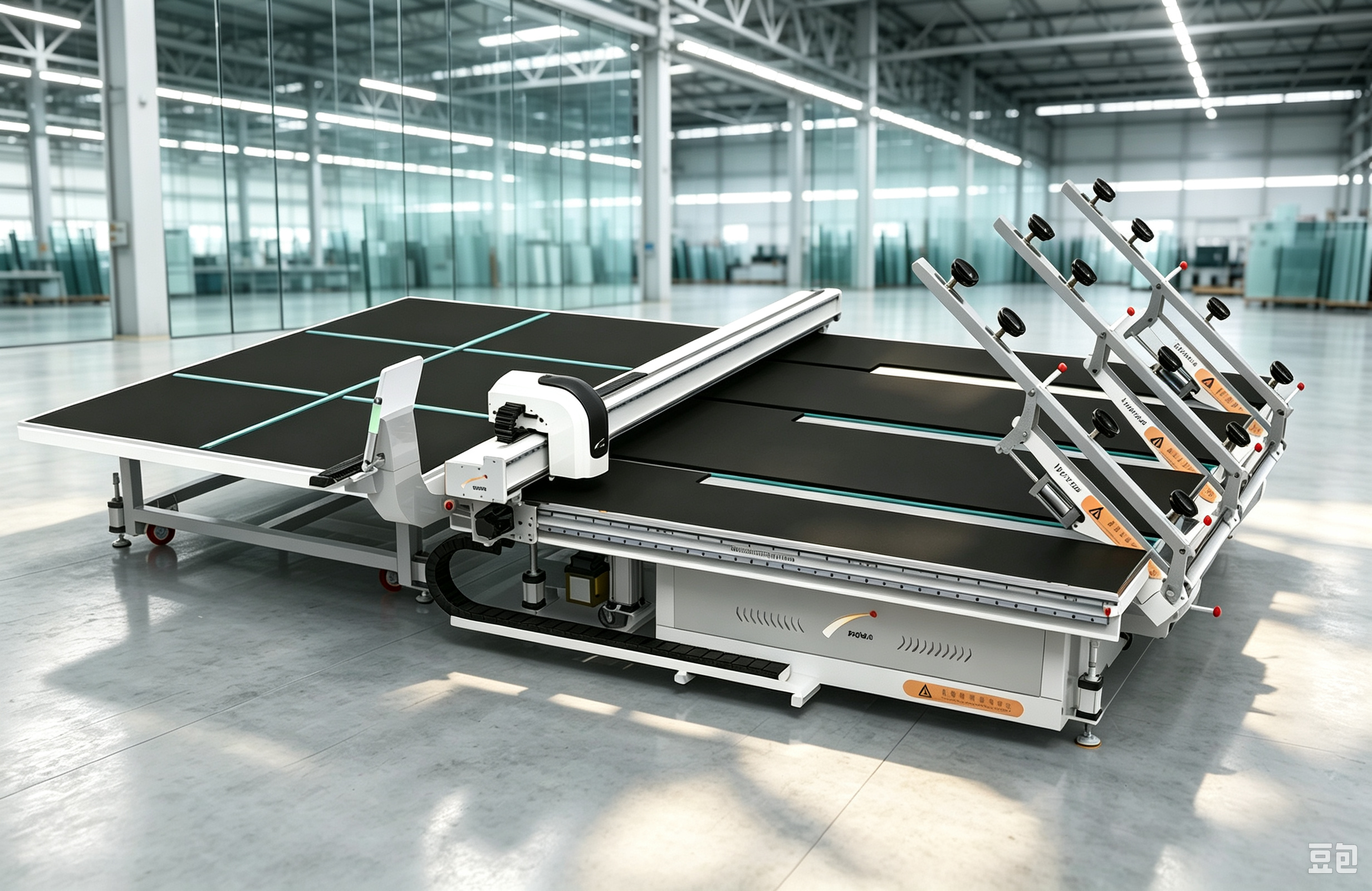

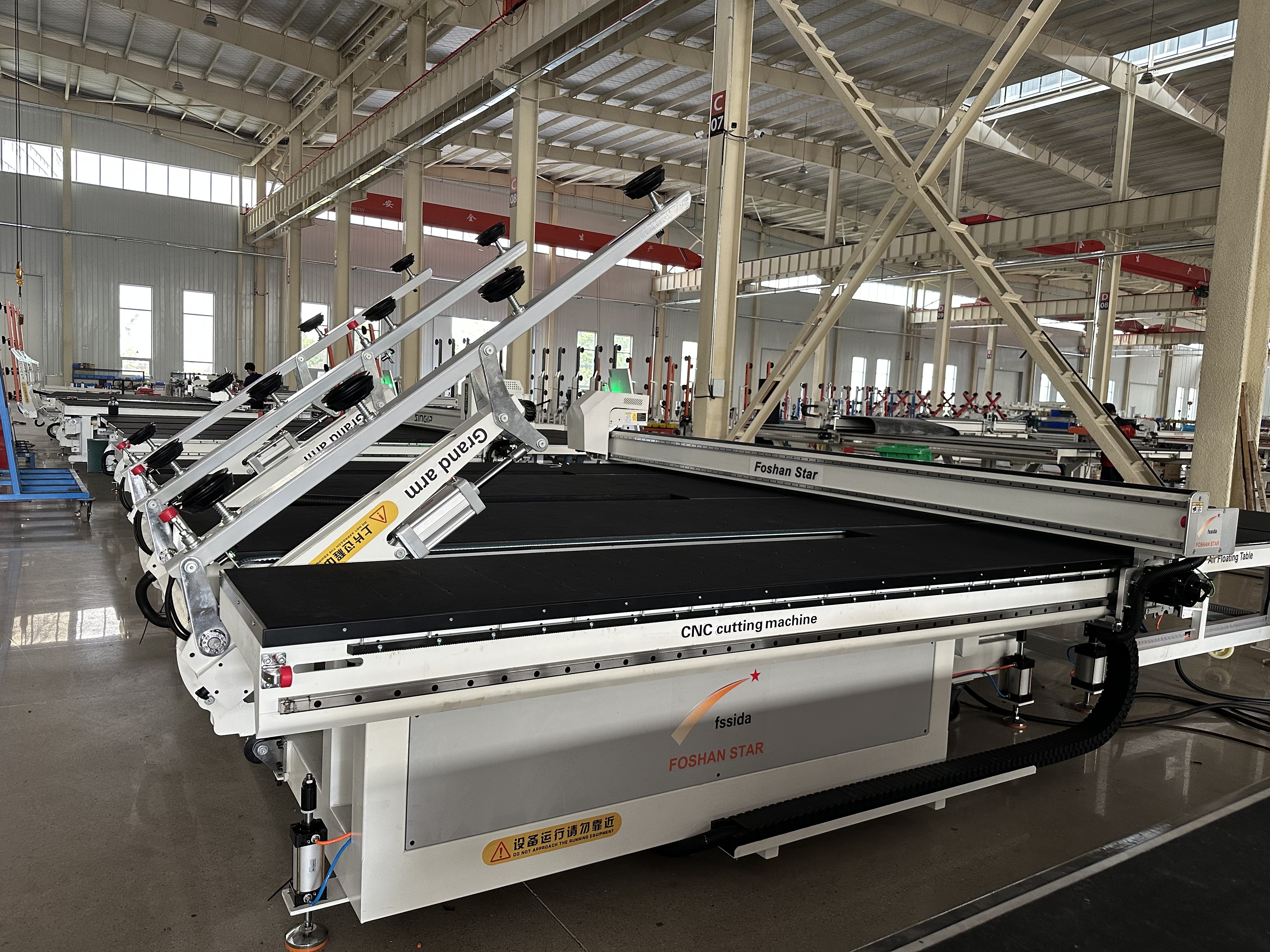

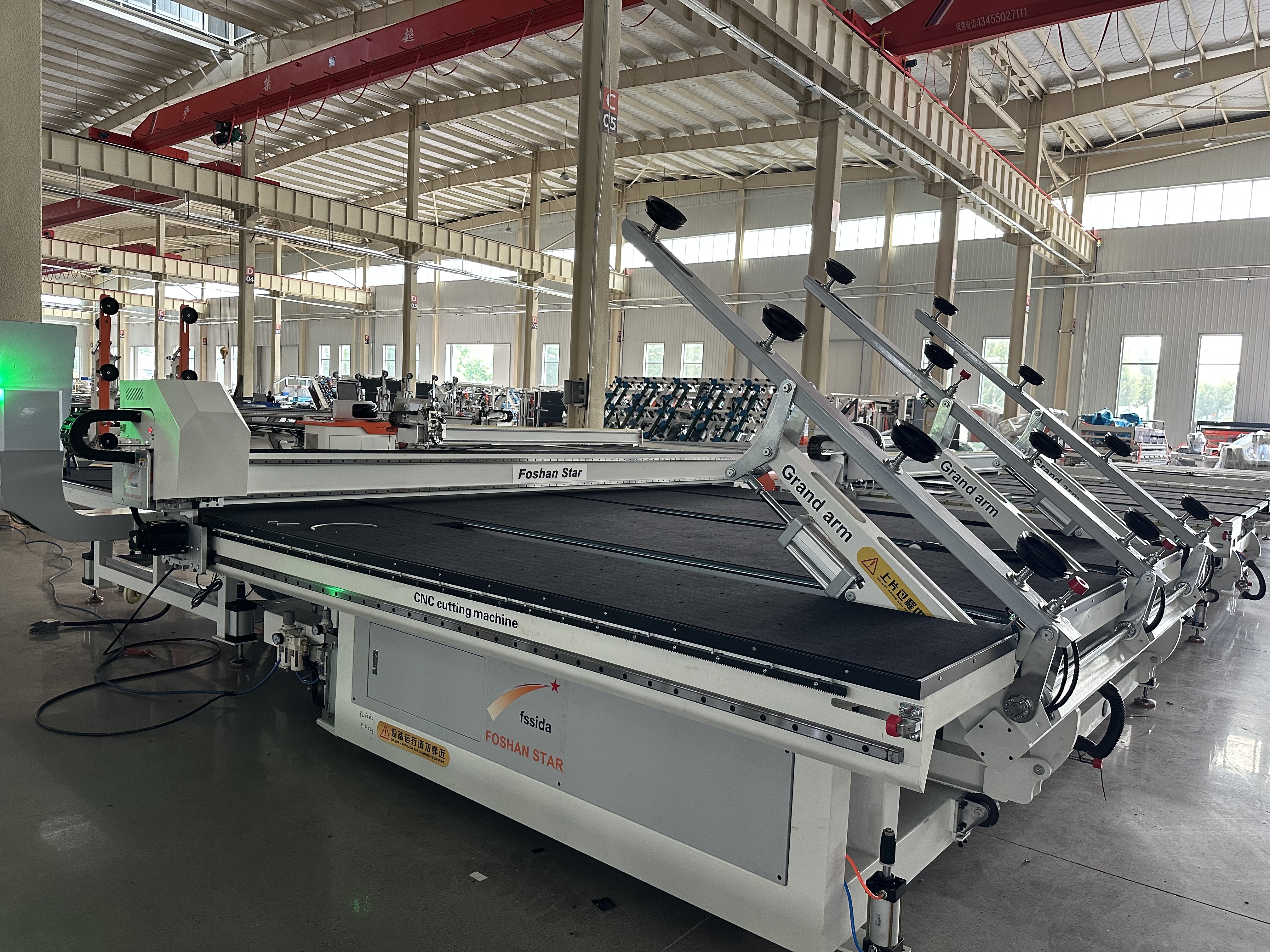

Machine Images

15KW Automatic CNC Glass Cutting Machine 160m/min With Two Tables

15KW Automatic CNC Glass Cutting Machine 160m/min With Two Tables

15KW Automatic CNC Glass Cutting Machine 160m/min With Two Tables
