Automatic Glass Shape Cutting Machine 0-200m/min CNC Glass Cutting Line
Automatic Glass Shape Cutting Machine 0-200m/min CNC Glass Cutting Line
Specifications
Model Number :
ST-QGX6133
Glass thickness :
3-19mm
MOQ :
1
Packaging Details :
Protective Film
Max speed :
0-200m/min
Price :
32600-40000USD/SET
Weight :
3040KG
Certification :
CB,CE, RoHS, ISO9001
Installed Power :
12.6 KW
Payment Terms :
T/T
Name :
Glass Cutting Machine
Delivery Time :
30 working days
Brand Name :
FOSHAN STAR
Max glass size :
6100*3300mm
Place of Origin :
China
Compressed air :
0.55~0.7 MPa
Description

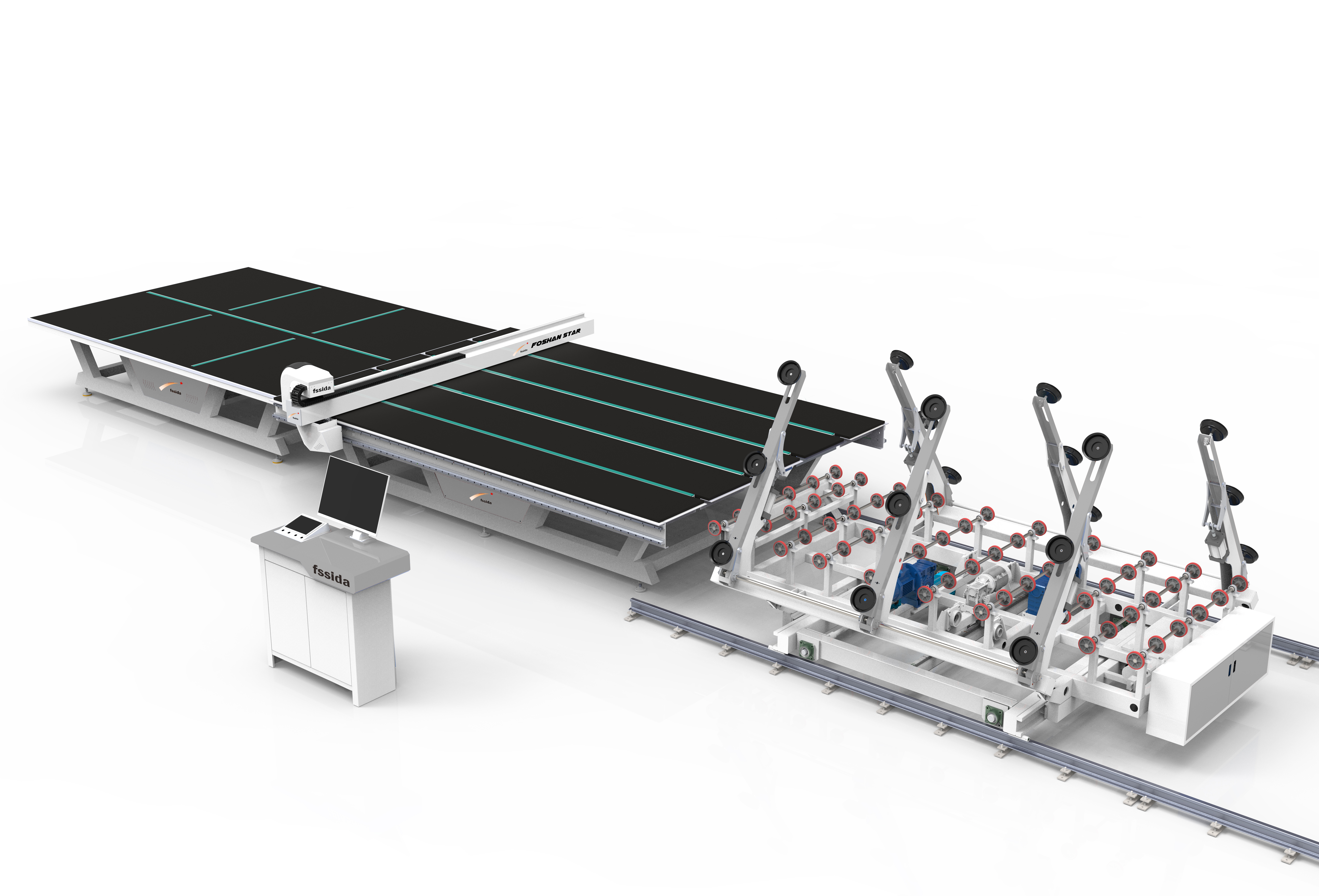

ST - QGX6133 CNC Automatic Shaped Glass Cutting Line
Machine Overview

The ST - QGX6133 is a fully automated glass cutting line integrating loading, CNC cutting, and breaking systems. It delivers high-speed, high-precision straight and shaped cutting for flat glass, with optimized nesting software that maximizes material yield and minimizes waste.

Key Selling Points:

1. Fully Automated, One-Stop Production

The line combines an automatic loading table, CNC cutting machine, and air-floating breaking table into one streamlined workflow — from glass pickup to finished cut, no manual handling required.

2. Maximum Material Savings

Equipped with advanced optimized nesting software, the system intelligently arranges cutting patterns to save glass material and reduce production costs.

3. High Speed & High Efficiency

Cutting speed up to 200 m/min, with servo-driven precision that ensures fast, accurate performance even for complex irregular shapes.

4. Any Shape, Any Application

Handles straight and irregular cutting of flat glass (3–19mm) for construction, decoration, home appliances, mirror splicing, and handicrafts.

5. Built for Precision & Stability

Heavy-duty Q345A manganese bridge steel frame with optimized table structure ensures dynamic balance and mechanical stability. Cutting pressure auto-adjusts to glass thickness; 360° rotating cutter head with climbing wheels protects both blade and glass.

6. Intelligent & User-Friendly

Touchscreen operation with one-key reset, automatic side locating system, and safety alarm system for worry-free operation.

Cutting Machine Technical Specifications
Parameter Value
Maximum size for automatic loading 6100mmx3300mm
Cutting speed 0-200m/min
Compressed air 0.55~0.7 MPa
Glass thickness 3-19mm
Installed power 12.6KW
Weight 3040KG
Product Services

Automatic Glass Shape Cutting Machine 0-200m/min CNC Glass Cutting Line

Automatic Glass Shape Cutting Machine 0-200m/min CNC Glass Cutting Line

Automatic Glass Shape Cutting Machine 0-200m/min CNC Glass Cutting Line

Automatic Glass Shape Cutting Machine 0-200m/min CNC Glass Cutting Line

Automatic Glass Shape Cutting Machine 0-200m/min CNC Glass Cutting Line

Automatic Glass Shape Cutting Machine 0-200m/min CNC Glass Cutting Line

Machine Images

Automatic Glass Shape Cutting Machine 0-200m/min CNC Glass Cutting Line
