CNC All In One Glass Cutting Machine 0-200M/Min High Speed Cutting / Automatic Braking
CNC All In One Glass Cutting Machine 0-200M/Min High Speed Cutting / Automatic Braking
CNC All In One Glass Cutting Machine 0-200M/Min High Speed Cutting / Automatic Braking
CNC All In One Glass Cutting Machine 0-200M/Min High Speed Cutting / Automatic Braking
Specifications
Model Number :
3826
Total floor space (including the breaking table, the height does not include the unfolded height of :
length*width*height: about 5700*4860*1600mm
Payment Terms :
T/T
Processing glass size :
MAX.3660*2440mm
Installed power :
About 15kW
Delivery Time :
45
Countertop height :
880±30mm (foot adjustable)
Cutting bridge speed :
0-2 0 0M/min ( can be set )
MOQ :
1
Cutting table dimensions :
Length*width*height: about 3100*4860*1630mm
Power Requirements :
Three fires and one ground wire 380V ( special voltages should be communicated in advance )
Glass thickness :
3 ～ 18mm Lower than 3mm or higher than 12mm (excluding 12mm) must be informed in advance
Brand Name :
FoShan Star
Place of Origin :
China
Name :
Glass Cutting Machine
Compressed air :
0.6 -0.8 Mpa exhaust volume 0.6-1m3/min
Price :
$18,250-$18,750/SET
Breaking table dimensions :
length*width*height: about 3800*2600*880mm (adjustable)
Packaging Details :
Protective film
Loading Depth :
About 700 mm
Cutting head speed :
0-200M/min ( can be set )
Cutting accuracy :
≤±0.3mm/s
Cutting acceleration :
≥8m/s²
Description

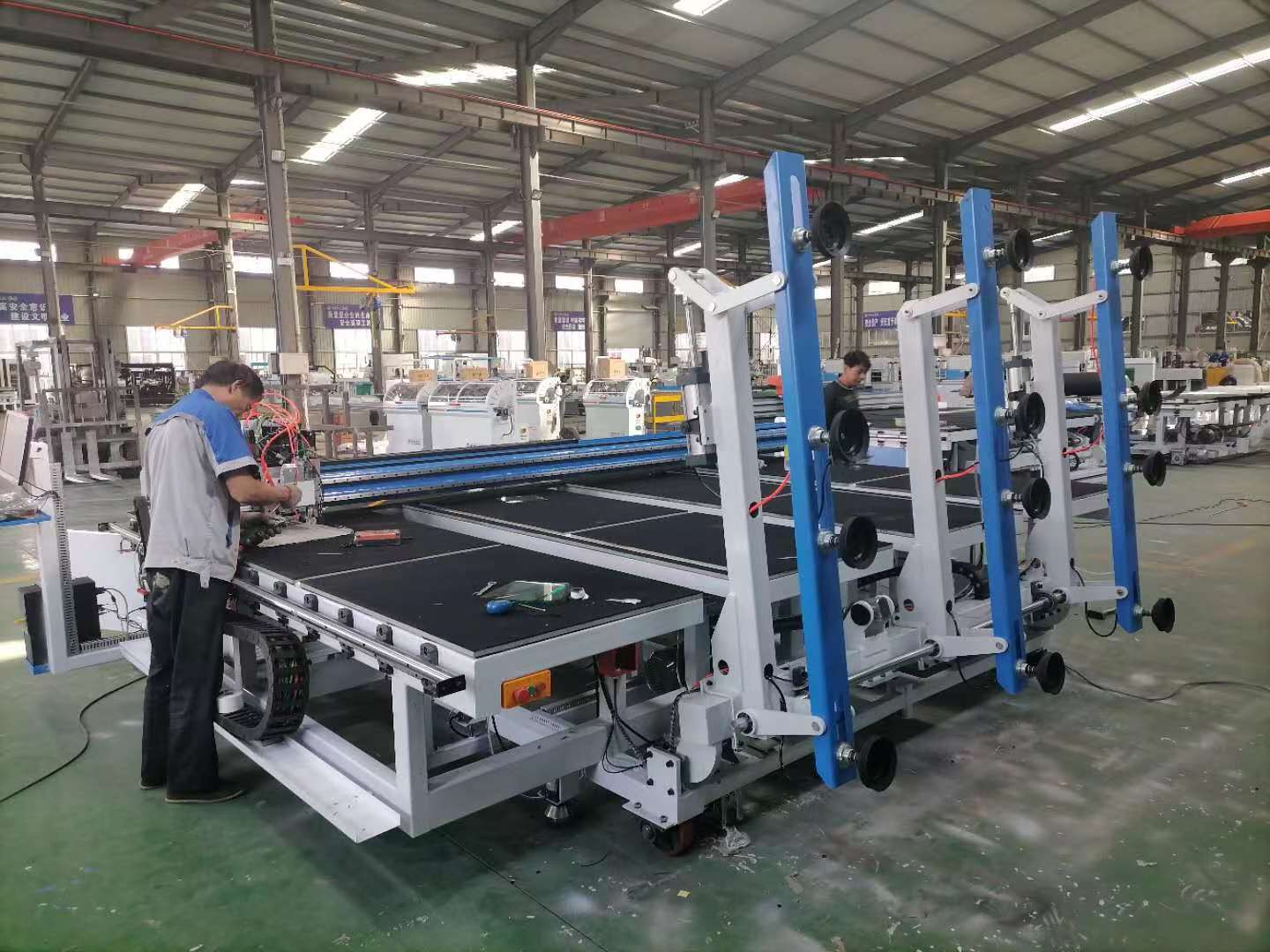

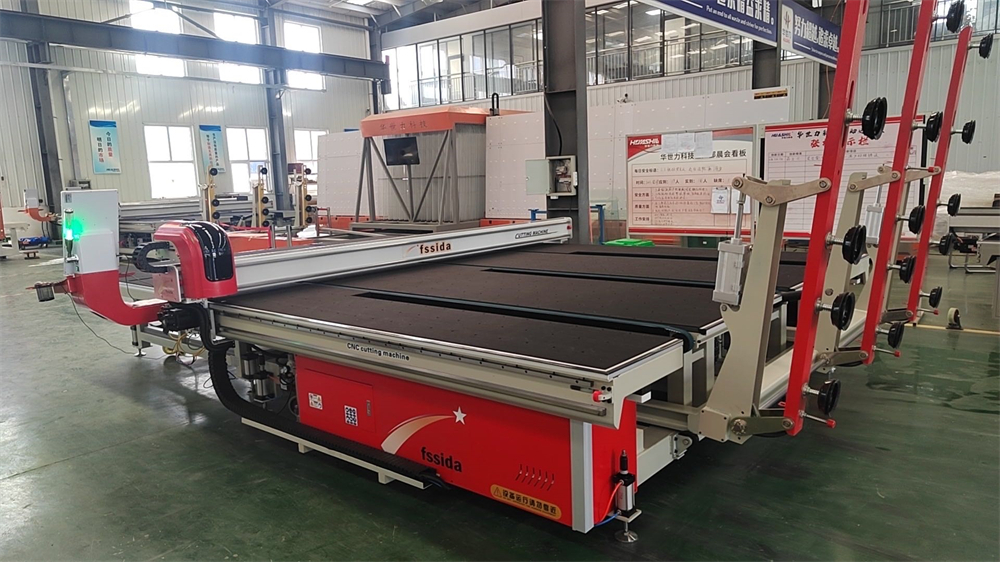

CNC All-in-One Glass Cutting Machine

This CNC All-in-One Glass Cutting Machine integrates high-speed cutting and automatic breaking functions into a single, streamlined production line. Designed for maximum efficiency, it features a robust bridge structure and an intelligent control system to handle large-format glass processing with exceptional speed and precision.

CNC All In One Glass Cutting Machine 0-200M/Min High Speed Cutting / Automatic Braking
⚡ High-Speed Performance & Precision

Engineered for rapid throughput, the machine utilizes a high-performance drive system capable of significant acceleration and cutting speeds.

  • Rapid Cutting Speed: Both the cutting head and the cutting bridge operate at speeds ranging from 0 to 200 m/min, which can be precisely set to match production requirements.
  • High Acceleration: The system boasts a cutting acceleration of ≥8 m/s², ensuring minimal idle time between cuts and maximizing overall productivity.
  • Superior Accuracy: Designed for exactitude, the machine maintains a cutting accuracy of ≤±0.3mm, guaranteeing high-quality edges and precise dimensions for every piece.
